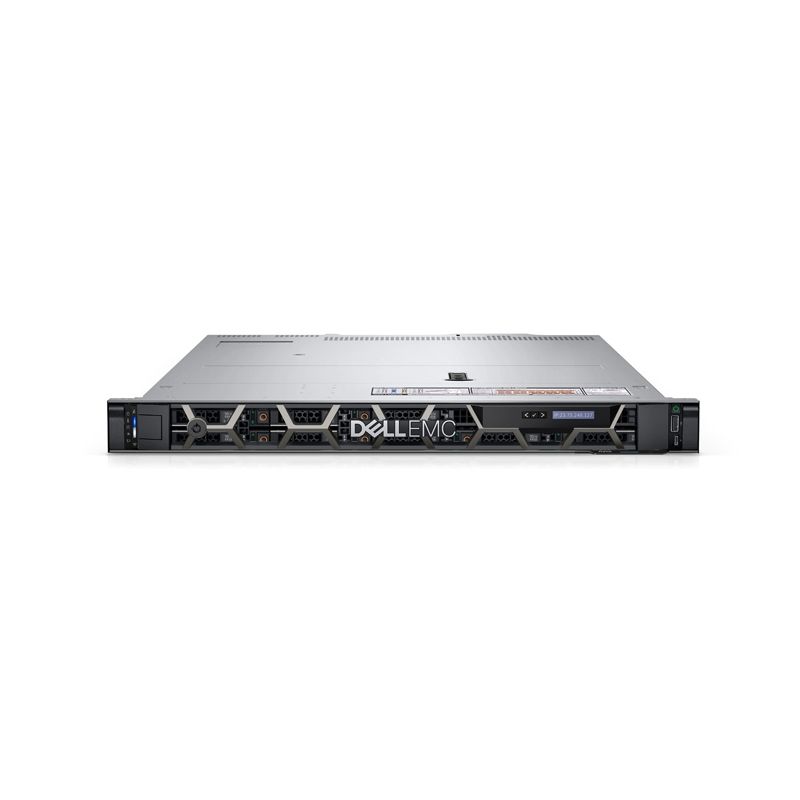

R450-4LFF-Server, Dell R450 4LFF Server, 2xIntel Xeon/4xLFF/128GB DDR4
SKU: DL:R450-4LFF-Server · MPN: DL:R450-4LFF-Server · Category: Components
Specifications
| Bezel | Optional LCD bezel or security bezel |
|---|---|
| Ports | Network Options 2 x 1 GbE LOM and 1 x OCP 3.0 Front Ports 1 x dedicated iDRAC Direct micro-USB 1 x USB 3.0 1 x VGA Rear Ports 1 x USB 2.0 1 x Serial (optional) 1 x USB 3.0 2 x Ethernet 1 x VGA Internal Ports 1 x USB 3.0 |
| Slots | 2 x PCIe Gen4 slots |
| Memory | DIMM Speed Up to 2933 MT/s Memory Type RDIMM Memory Module Slots 16 DDR4 DIMM slots Maximum RAM RDIMM 1 TB |
| Chipset | Intel® C620A chipset |
| Storage | Front Bays Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 16 TB Up to 8 x 2.5-inch SAS/SATA (HDD/SSD) max 7.68 TB |
| Security | Cryptographically signed firmware Secure Boot Secure Erase Silicon Root of Trust System Lockdown (requires iDRAC9 Enterprise or Datacenter) TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ |
| Processor | Up to two 3rd Generation Intel® Xeon® Scalable processors, with up to 24 cores per processor |
| Management | Embedded / At-the-Server iDRAC9 iDRAC Service Module iDRAC Direct Quick Sync 2 wireless module Consoles OpenManage Enterprise OpenManage Power Manager plugin OpenManage SupportAssist plugin OpenManage Update Manager plugin Mobility OpenManage Mobile Tools iDRAC RESTful API with Redfish IPMI RACADM CLI System Update Utility Update Catalogs OpenManage Integrations BMC® Truesight Microsoft® System Center RedHat® Ansible® Modules VMware® vCenter and vRealize Operations Manager OpenManage connections IBM Tivoli® Netcool/OMNIbus IBM Tivoli® Network Manager IP Edition Micro Focus® Operations Manager Nagios® Core Nagios® XI |
| Form Factor | 1U rack server |
| Rack Support | ReadyRails™ II sliding rails with optional cable management arm (CMA) and strain relief bar (SRB) for 4-post racks. Combo (Drop-in/Slide-in) rails with optional CMA and SRB for 4-post racks. ReadyRails™ static rails for 4-post and 2-post racks. |
| Power Supplies | 1100 W DC -48–(-60) V 800 W Platinum AC/240 V HVDC 600 W Platinum AC/240 V HVDC Hot plug power supplies with full redundancy option Up to 7 cold swap fans |
| Operating System | (Dell Technologies recommends Windows 11 Pro for business) Canonical® Ubuntu® Server LTS Citrix® Hypervisor® Microsoft® Windows Server® with Hyper-V RedHat® Enterprise Linux SUSE® Linux Enterprise Server VMware® ESXi® |
| Dimensions & Weight | Height 42.8 mm (1.68 inches) Width 482 mm (18.97 inches) Depth For 4 x 3.5-inch configuration 748.79 mm (29.48 inches) with bezel 734.95 mm (28.93 inches) without bezel For 8 x 2.5-inch configuration 698.03 mm (27.48 inches) with bezel 684.19 mm (26.93 inches) without bezel Weight For 4 x 3.5-inch system - 18.62 kg (41.05 lbs.) For 8 x 2.5-inch system - 16.58 kg (36.55 lbs.) |
| Recommended Support | Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region. |
| Storage Controllers | Internal Controllers PERC H345, PERC H355, PERC H745, PERC H755, HBA355i External Controllers PERC H840, HBA355e Software RAID S150 Internal Boot Boot Optimized Storage Subsystem (BOSS-S1): HWRAID 2 x M.2 SSDs 240 GB or 480 GB Internal Dual SD Module or USB |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this R450-4LFF-Server, Dell R450 4LFF Server, 2xIntel Xeon/4xLFF/128GB DDR4 (DL:R450-4LFF-Server) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This R450-4LFF-Server, Dell R450 4LFF Server, 2xIntel Xeon/4xLFF/128GB DDR4 includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the R450-4LFF-Server, Dell R450 4LFF Server, 2xIntel Xeon/4xLFF/128GB DDR4 compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the DL:R450-4LFF-Server.
