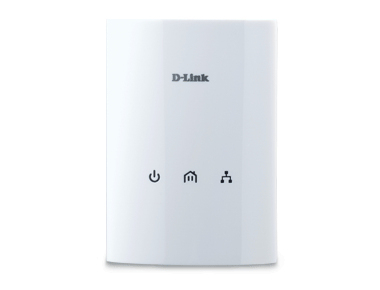

D-Link DHP-306AV Ethernet 200 Mbit/s
Brand: D-Link · SKU: DHP-306AV/B · MPN: DHP-306AV/B · Category: Components
D-Link DHP-306AV, Wired, PowerPlug, Ethernet, 200 Mbit/s, White
Specifications
| Depth | 34 mm |
|---|---|
| Width | 70 mm |
| Height | 100 mm |
| Weight | 126 g |
| Internal | No |
| Interface | Ethernet |
| Power LED | Yes |
| Modulation | OFDM |
| Ethernet LAN | Yes |
| Certification | FCC, CE, UL, CE LVD |
| Plug and Play | Yes |
| Host interface | PowerPlug |
| LED indicators | LAN |
| Product colour | White |
| Frequency range | 0.002 - 0.03 GHz |
| AC input voltage | 100-240 V |
| Minimum processor | 200 MHz |
| Wake-on-LAN ready | Yes |
| AC input frequency | 50 - 60 Hz |
| Cabling technology | 10/100BaseT(X) |
| Networking features | Fast Ethernet |
| Security algorithms | 128-bit AES |
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Connectivity technology | Wired |
| Warranty | 3-Year Warranty |
| Weight | 126 g |
| Dimensions | 70 mm x 34 mm x 100 mm |
Product Description
- Converts any power socket into a network connection point. - Improved resistance to electrical interference. - Quality of Service (QoS) engine for prioritisation of multimedia content. - 200 Mbps data transfer rates over standard electrical wires: no extra cable needed. - Simple push-button setup, with sophisticated data encryption. - Standby mode for power saving (EuP compliant). The D-Link DHP-306AV adapter uses standard AC wiring to distribute Ethernet within the home. Use existing wiring to create a home network By simply plugging one PowerLine adapter into an existing electrical socket, you can turn every power outlet into a potential network connection, making the DHP-306AV an ideal solution for sharing a high-speed Internet connection or for connecting computers, HD media players, game consoles and Network Attached Storage to your home network. It is also ideal for homes or small offices where concrete walls, successive floors in multi-storied buildings, or other architectural impediments could inhibit a wireless signal. 200 Mbps transmission with Quality of Service (QoS) Delivering data transfer rates of up to 200 Mbps2, D-Link’s PowerLine Homeplug AV provides ample bandwidth for demanding digital home requirements, such as watching Internet TV or streaming digital music in any room. Advanced technology built into this adapter makes it more resistant to electrical interference from other household appliances, so users can fully benefit from the maximum transmission speeds. In addition to maximum throughput, D-Link’s PowerLine Homeplug AV includes a built-in Quality of Service (QoS) engine that prioritises data packets in order to enhance HD video and audio streaming, online gaming and VoIP calling. Conveniently connect You can attach a switch or wireless Access Point (AP) to a D-Link PowerLine Homeplug AV Network Adapter, allowing you to connect multiple devices in the farthest corners of your home. Furthermore, D-Link’s Powerline Homeplug AV implements 128-bit AES encryption for securing your connection and keeping your data safe from intruders. You can set this up easily via the button on the side of the adapter. Compatibility Based on the industry-leading Atheros Homeplug AV technology, the adapter is compatible with other brands’ devices based on the same Homeplug AV standard. However, it will not work with devices based on other standards, such as D-Link’s DHP-302/342. D-Link Green™ The adapter is part of D-Link Green, D-Link’s program for providing eco-friendly alternatives without compromising performance: if data transmission or reception does not occur over a certain period of time, the adapter will automatically go into sleep mode to save power. This requires less than 1W, making the adapter among the first of its kind to comply with the European Union guideline on Energy-using Products (EuP), applicable since 7th January 2010.
Key Features
D-Link DHP-306AV. Connectivity technology: Wired, Host interface: PowerPlug, Interface: Ethernet. Maximum data transfer rate: 200 Mbit/s. Product colour: White
