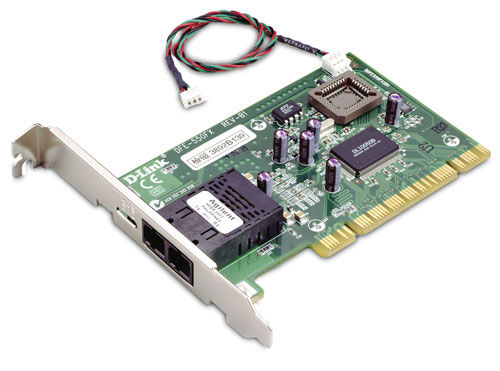

D-Link 32 Bit 100Base-FX PCI Adapter with Flow Control, VLAN & WOL 100 Mbit/s
Brand: D-Link · SKU: DFE-550FX · MPN: DFE-550FX · Category: Components
D-Link 32 Bit 100Base-FX PCI Adapter with Flow Control, VLAN & WOL, Wired, PCI, 100 Mbit/s. D-Link 32 Bit 100Base-FX PCI Adapter with Flow Control, VLAN & WOL 100 Mbit/s (part number DFE-550FX) is an enterprise components product available from Server Tech Central. Key specifications include weight 120 g, form factor Plug-in, full duplex Yes, host interface PCI, dimensions (wxdxh) 120 x 73, data link protocols Fast Ethernet, connectivity technology Wired, storage temperature (t-t) -20 - 55 °C. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Weight | 120 g |
|---|---|
| Form factor | Plug-in |
| Full duplex | Yes |
| Host interface | PCI |
| Dimensions (WxDxH) | 120 x 73 |
| Data link protocols | Fast Ethernet |
| Connectivity technology | Wired |
| Storage temperature (T-T) | -20 - 55 °C |
| Maximum data transfer rate | 100 Mbit/s |
| Operating temperature (T-T) | 0 - 50 °C |
| Compatible operating systems | - Novell NetWare Client ODI - Novell NetWare Server 3.12, 3.2, 4.1x, 5.x - Microsoft NDIS 3.x, 4.x, 5.x - Microsoft Windows 95, 98, 2000 - Microsoft NT 4.0 - Linux kernel 2.0.x, 2.2.x |
| Compliance industry standards | IEEE 802.3u |
| Operating relative humidity (H-H) | 10 - 90% |
| Warranty | 3-Year Warranty |
| Weight | 120 g |
Product Description
The DFE-550FX is a 100Base-FX Multimode fiber based network card supporting transfer speeds of up to 200Mbps in full duplex mode and cable distances up to 2km. It can be used in either workstations or servers and supports advanced features such as WOL (Wakeon- LAN management), 802.3x Flow control, 802.1Q VLAN support, and 802.1p priority tagging. High Performance With 32-bit bus master operation, the DFE-550FX guarantees the highest level of performance. Bus mastering guarantees data is passed directly between the card and the host bypassing the host CPU and reducing added workload and CPU overhead. This in turn improves network and host performance. Wake-on-LAN Power Management The DFE-550FX supports Advanced Configuration Power Interface (ACPI) Wake-On-LAN (WOL), which allows your computer to be powered ON/OFF from a remote location. Providing a great utility for power management, this function allows the administrator to send a ‘wake-up’ signal to a computer or server to initiate a power-up sequence. 802.3x Flow Control to Minimize Packet Loss The DFE-550FX supports 802.3x flow control. This provides a means to protect against possible data loss during transmission on the network. When connected to a Fast Ethernet switch that also supports flow control, the card receives signals from the switch regarding buffer overrun during peak usage periods. The card then delays transmission until the switch is ready again to accept new data. 802.1Q VLAN to Improve Performance and Security The DFE-550FX supports IEEE 802.1Q VLAN tagging, allowing you to segment the network into smaller domains to improve performance and security. The DFE-550FX provides a VLAN table for the following functions: filtering packets by recognizing VLAN Tags, stripping VLAN Tags on receive, and inserting VLAN Tags on transmit. IEEE 802.1p Priority Queues Support With packet prioritization capability, the DFE-550FX allows traffic to be queued as critical and non-critical, permitting your computer to run Voice over IP (VoIP), video-conferencing/ multimedia applications and other time-sensitive traffic with higher priority than non-critical data. This in turn helps to eliminate jitter and lag in multimedia streams. RPL and PXE Remote Boot Options With RPL (Remote Program Load) and PXE (Pre-boot Execution Environment) support, administrators can choose to set up a security scheme for diskless workstations to boot from. Stations with boot ROMs installed on the on-board socket can boot from NetWare, NT and other servers to run applications designated by the administrator.
Key Features
D-Link 32 Bit 100Base-FX PCI Adapter with Flow Control, VLAN & WOL. Connectivity technology: Wired, Host interface: PCI. Maximum data transfer rate: 100 Mbit/s
Frequently Asked Questions
Is this product genuine OEM?
Yes, this D-Link 32 Bit 100Base-FX PCI Adapter with Flow Control, VLAN & WOL 100 Mbit/s (DFE-550FX) is 100% genuine D-Link hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This D-Link 32 Bit 100Base-FX PCI Adapter with Flow Control, VLAN & WOL 100 Mbit/s includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the D-Link 32 Bit 100Base-FX PCI Adapter with Flow Control, VLAN & WOL 100 Mbit/s compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the DFE-550FX.
