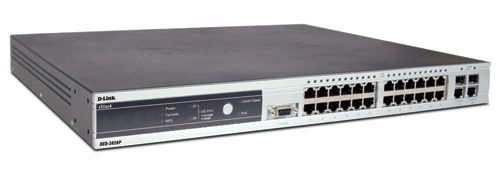

D-Link DES-3828P network switch
Brand: D-Link · SKU: DES-3828P · MPN: DES-3828P · Category: Networking
D-Link DES-3828P, IEEE 802.1d, IEEE 802.1p, IEEE 802.1q, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE..., 1000BASE-T, 100BASE-TX, 10BASE-T, 16000 entries, 12.8 Gbit/s, 1 Gbit/s, 32 MB
Specifications
| Safety | CSA International, CB Report |
|---|---|
| Weight | 6.02 kg |
| I/O ports | (24) 10/100 Mbps Ports, (2) Combo SFP/1000BASE-T Ports, & (2) Built-in 1000BASE-T Uplinks & 802.3af PoE |
| MAC address table | 16000 entries |
| Data transfer rate | 1000 Mbit/s |
| Dimensions (WxDxH) | 309 x 440.9 x 43.9 mm |
| Power requirements | 100 - 240 VAC, 50/60 Hz |
| Switching capacity | 12.8 Gbit/s |
| Data link protocols | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Management platform | Web/CLI/SNMP |
| Networking standards | IEEE 802.1d, IEEE 802.1p, IEEE 802.1q, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Packet buffer memory | 32 MB |
| Packet transfer speed | 14880pps (10M), 148800pps (100M), 1488000pps (1000M) |
| Electromagnetic emissions | CE Class A, FCC Class A, VCCI Class A, C-Tick Class A |
| Storage temperature (T-T) | -40 - 70 °C |
| Maximum data transfer rate | 1 Gbit/s |
| Operating temperature (T-T) | 0 - 40 °C |
| Power consumption (typical) | 395.2 W |
| Supported network protocols | RFC 1157 SNMP, RFC 1112/2236 IGMPv1/2 IGMPv3, RFC 1757/2021/2819 RMON (4 Groups), RFC 1493 Bridge MIB, RFC 1213 MIB II, RFC 793 TCP, RFC 826 ARP, RFC 854 Telnet, and DiffServ, RFC 1724 RIP v1/2, RFC 1850 OSPF*, DVMRP, RFC 2934 PIM-DM, PIM-SM*, RFC 2932 Multicast Routing, RFC 2787 VRRP, RFC 2096 IP Forwarding Table, RFC 2618/2620 RADIUS Client, RFC 2863 IF MIB, RFC 2674 802.1p MIB, RFC 2668 802.3 MAU MIB, RFC 2665 ether-like MIB, SSH, SSL, TACACS+ |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 10 - 85% |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Warranty | 3-Year Warranty |
| Weight | 6.02 kg |
Product Description
For the SMB requiring a cost effective core switching solution, as well as for larger Enterprise and Metropolitan Service Providers (MSP) environments needing a managed, feature rich switch capable of uplinking to backbone switches, the D-Link xStack DES-3828P is designed to meet the needs of the most demanding departmental and enterprise connectivity applications. The xStack DES-3828P Switch is a fully managed Layer 3 switch that provides (24) 10/100Mbps Fast Ethernet ports each capable of up to 16.8 Watts of 802.3af PoE and (2) combo SFP/1000BASE-T Gigabit Ethernet ports. In addition, (2) fixed 1000BASE-T ports in the back-panel can provide a dedicated trunk connection between devices or core switches. The xStack DES-3828P also provides virtual stacking functionality via D-Link SIM technology allowing up to 32 units to be managed via a single IP address. With support for Q-in-Q Double VLAN tagging, Ipv6 aware, Dynamic Layer 3 Routing, IEEE 802.1s*, and bandwidth control, the xStack DES-3828P incorporates advanced features suitable for the MSP as well as the SMB and Enterprise size network. Metro Switching Service provider networks are moving from circuit-based access to newer packet-based access that will require highly reliable intelligent switching, and at the same time demand resiliency and dependability. The xStack DES-3828P meets this demand by supporting industry standards for 802.1s (multiple spanning tree), 802.3ad link aggregation for up to 32 groups, bandwidth rate limiting down to 64k, and support for an external redundant power option for added peace of mind. In addition the xStack DES-3828P offers Double VLAN Q-in-Q tagging, which adds on an additional tag to a VLAN tag, expanding the VLAN space and allowing service providers to deploy their service quickly and securely. The xStack DES-3828P also incorporates advanced QoS support such as the ability to filter and forward traffic based on Layer 2/3/4, making it an ideal choice for VoIP, video, and audio services targeting business class customers. Network Security The xStack DES-3828P is equipped to handle many of today’s emerging security vulnerabilities. Up to 800 independent access control lists can be configured with the ability to filter and block traffic based on such criteria as: Port, MAC, 802.1p priority, VLAN, DSCP, IP address, Protocol type, and TCP/UDP port number and content, proving that the xStack DES-3828P provides unparalleled security in its class. In addition the xStack DES-3828P incorporates 802.1x port and MAC based RADIUS authentication for secure network logins and SSH / SSL for increased management security. Further, the xStack DES-3828P incorporates MAC-IP Binding and CPU protection to protect the CPU from broadcast, multicast, and Unicast flooding.
Key Features
D-Link DES-3828P. Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 16000 entries, Switching capacity: 12.8 Gbit/s. Networking standards: IEEE 802.1d, IEEE 802.1p, IEEE 802.1q, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE...
Frequently Asked Questions
Is this product genuine OEM?
Yes, this D-Link DES-3828P network switch (DES-3828P) is 100% genuine D-Link hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This D-Link DES-3828P network switch includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the D-Link DES-3828P network switch compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the DES-3828P.
