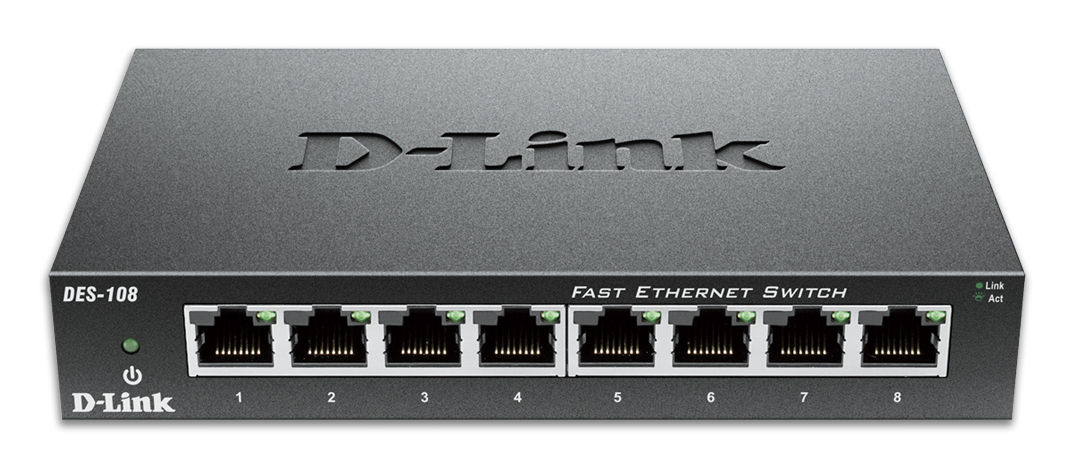

D-Link 8-Port Fast Ethernet Unmanaged Desktop Switch
Brand: D-Link · SKU: DES-108/B · MPN: DES-108/B · Category: Networking
D-Link 8-Port Fast Ethernet Unmanaged Desktop Switch, Unmanaged, Full duplex
Specifications
| Depth | 102 mm |
|---|---|
| Width | 162 mm |
| Height | 28 mm |
| Weight | 412 g |
| Stackable | No |
| 10G support | No |
| Full duplex | Yes |
| Half duplex | Yes |
| Switch type | Unmanaged |
| Jumbo frames | 1536 |
| Power source | DC |
| Input current | 1 A |
| Input voltage | 5 V |
| Package depth | 250 mm |
| Package width | 208 mm |
| Rack mounting | No |
| Auto MDI/MDI-X | Yes |
| LED indicators | Link, Power |
| Package height | 68 mm |
| Package weight | 610 g |
| Product colour | Black |
| Power connector | DC-in jack |
| Heat dissipation | 9.548 BTU/h |
| Housing material | Metal |
| Warranty | 3-Year Warranty |
| Weight | 412 g |
| Dimensions | 162 mm x 102 mm x 28 mm |
Product Description
D-Link’s DES-108 Fast Ethernet switch provides a cost-effective way for SOHO and SMB to create a small network and connect computers, wireless Access Points, IP cameras, network printers and other Ethernet devices quickly and easily without complicated configurations. This switch comes with 8 Fast Ethernet ports with an auto-sensing function to detect the maximum speed of the connected devices, allowing you to run your network with the best possible performance. Its fanless design makes the DES-108 completely silent so it is ideal for offices, libraries or meeting rooms. The DES-108 8-Port Fast Ethernet Unmanaged Desktop Switch is a 8-port 10/100 Mbps Fast Ethernet switch that allows you to quickly set up a wired network. Connect the DES-108 to multiple computers together to share files and folders, or connect it to a router to share an Internet connection. Auto-Sensing 10/100 Ports The DES-108 uses auto-sensing 10/100 Mbps ports, allowing a small workgroup to flexibly connect to Ethernet and Fast Ethernet devices to create an integrated network. These ports detect the network speed and auto-negotiate between 10BASE-T and 100BASE-TX, as well as between full and half-duplex, allowing you to get the maximum speed possible for each device connected to your network. Auto MDI/MDIX Crossover All of the ports on the DES-108 support automatic MDI/MDIX crossover, eliminating the need for crossover cables or uplink ports. Each port can be plugged directly to a server, hub, router, or switch using regular straight-through twisted-pair Ethernet cables. In addition, the DES-108 features multiple front, easy-to-access Ethernet ports with two colour LED indicators per port to easily distinguish link status. Flow Control for Secure Transmission When a port reaches its receiving buffer capacity, the 802.3x flow control feature activates to minimize dropped packets. By minimizing the number of dropped packets, the switch provides a more reliable connection for all of your connected devices while surfing the web, playing games, or accessing media. Think Green The DES-108 is a plug-and-play networking switch that offers D-Link’s Green Technology to save energy and reduce heat, which in turn extends product life without sacrificing performance or functionality. The switch supports IEEE 802.3az Energy-Efficient Ethernet (EEE) which detects when a connected computer is shut down or when there is no Ethernet traffic, in which the switch will proceed to power down the idle port, saving a substantial amount of power.
Key Features
D-Link 8-Port Fast Ethernet Unmanaged Desktop Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 1000 entries, Switching capacity: 1.6 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack
