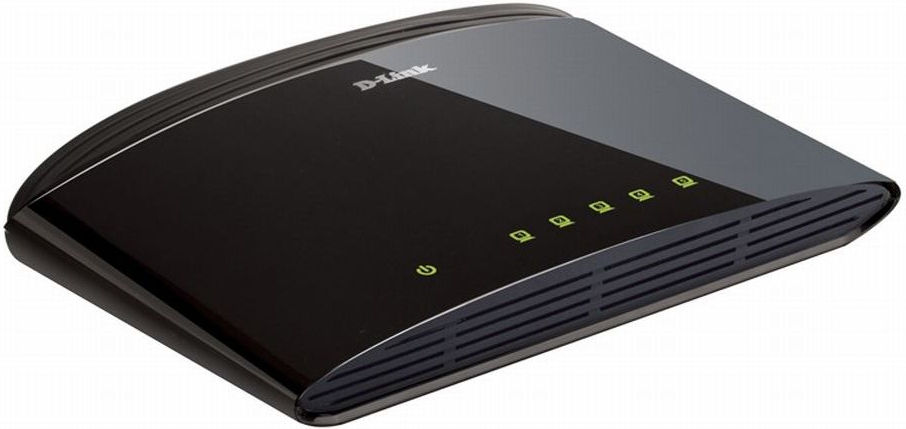

D-Link DES-1005D Unmanaged L2 Black
Brand: D-Link · SKU: DES-1005D/A · MPN: DES-1005D/A · Category: Components
Specifications
| 10G support | No |
|---|---|
| Full duplex | Yes |
| Switch type | Unmanaged |
| Switch layer | L2 |
| Certification | FCC ICES-003 CE C-Tick VCCI cUL CB |
| Auto MDI/MDI-X | Yes |
| LED indicators | LAN, Power |
| Product colour | Black |
| Power connector | DC-in jack |
| MAC address table | 2000 entries |
| Store-and-forward | Yes |
| Data transfer rate | 10 Mbit/s |
| Dimensions (WxDxH) | 142 x 32 x 108 mm |
| Power requirements | DC 7.5V/1A |
| Switching capacity | 1 Gbit/s |
| Networking features | Fast Ethernet |
| Flow control support | Yes |
| Networking standards | IEEE 802.3u, IEEE 802.3x |
| Packet buffer memory | 0.064 MB |
| Packet transfer speed | 14880 - 148800 pps |
| Connectivity technology | Wired |
| Power over Ethernet (PoE) | No |
| Storage temperature (T-T) | -10 - 70 °C |
| Maximum data transfer rate | 0.1 Gbit/s |
| Warranty | 3-Year Warranty |
Product Description
5-Port 10/100Mbps Switch for SOHO The DES-1005D is an unmanaged 10/100Mbps switch designed to enhance small workgroup performance while providing a high level of flexibility. Powerful yet easy to use, this device allows users to simply plug any port to either a 10Mbps or 100Mbps network to multiply bandwidths, boost response time and satisfy heavy load demands. 5 Auto-sensing 10/100Mbps Ports The switch comes with 5 10/100Mbps ports, allowing a small workgroup to flexibly connect to Ethernet ad Fast Ethernet and integrate. These intelligent ports detect the network speed and auto-negotiate between 100BASE-TX and 10BASE-T, as well as between full- and half-duplex. Flow Control for Secure Transmission All ports support 802.3x flow control. This function minimizes dropped packets by sending out collision signals when the port's receiving buffer is full. Flowcontrol is available in the full-duplex mode. Auto-negotiation of MDI/MDIX Cross Over All ports support auto-negotiation of MDI/MDIX cross over. This eliminates the need for cross over cables or uplink ports. Any port can simply plug to a server, a hub or a switch, using the usual straight-through twisted-pair cable. SOHO Plug-and-Play With 5 plug-and-play ports, the switch is a perfect choice for the small workgroup to upgrade performance in a client/server environment. The ports can be connected to servers in full-duplex, or hubs in half-duplex. Desktop Power With low-cost connection per-port, the switch can also be set up for direct connection from the PCs. This relieves data bottleneck by giving each workstation a dedicated bandwidth on the network.
Key Features
D-Link DES-1005D. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2000 entries, Switching capacity: 1 Gbit/s. Networking standards: IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack
Frequently Asked Questions
Is this product genuine OEM?
Yes, this D-Link DES-1005D Unmanaged L2 Black (DES-1005D/A) is 100% genuine D-Link hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This D-Link DES-1005D Unmanaged L2 Black includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the D-Link DES-1005D Unmanaged L2 Black compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the DES-1005D/A.
