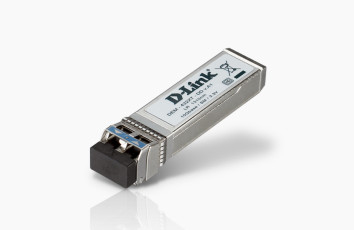

D-Link 10GBASE SFP+ (DDM) network transceiver module Fiber optic 10000 Mbit/s 1310 nm

Brand: D-Link · SKU: DEM-432XT-DD · MPN: DEM-432XT-DD · Category: Networking

D-Link 10GBASE SFP+ (DDM) network transceiver module Fiber optic 10000 Mbit/s 1310 nm
Request for Quote
Backorder

D-Link 10GBASE SFP+ (DDM), Fiber optic, 10000 Mbit/s, SFP, LC, 9/125 µm, LR. D-Link 10GBASE SFP+ (DDM) network transceiver module Fiber optic 10000 Mbit/s 1310 nm (part number DEM-432XT-DD) is an enterprise transceivers & optics product available from Server Tech Central. Key specifications include depth 11.8 mm, width 14.8 mm, height 56.5 mm, safety UL, TUV, CDRH, weight 22 g, hot-swap Yes, wavelength 1310 nm, certification CE, FCC, VCCI, C-Tick. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.

View Transceivers & Optics Products

Specifications

Depth11.8 mm
Width14.8 mm
Height56.5 mm
SafetyUL, TUV, CDRH
Weight22 g
Hot-swapYes
Wavelength1310 nm
CertificationCE, FCC, VCCI, C-Tick
Input voltage3.3 V
Plug and PlayYes
Interface typeSFP
Rx power (max)0.5 dBmW
Rx power (min)-12.6 dBmW
Tx power (max)0.5 dBmW
Tx power (min)-8.2 dBmW
Networking standardsIEEE 802.3ae
SFP transceiver typeFiber optic
Fiber optic connectorLC
Compliance certificatesRoHS
SFP transceiver standardLR
Maximum transfer distance10000 m
Storage temperature (T-T)-40 - 85 °C
Maximum data transfer rate10000 Mbit/s
Operating temperature (T-T)-5 - 70 °C
Warranty3-Year Warranty
Weight22 g
Dimensions14.8 mm x 11.8 mm x 56.5 mm

Product Description

D-Link’s 10G SFP+ Module series are hot-swappable SFP+ transceivers that plug into SFP+ slots on switches and support 10G Ethernet. The D-Link 10GBASE SFP+ Module Series transceivers offer customers a wide variety of 10G Ethernet connectivity options for data centers, enterprise wiring closets, and service provider transport applications.

Key Features

D-Link 10GBASE SFP+ (DDM). SFP transceiver type: Fiber optic, Maximum data transfer rate: 10000 Mbit/s, Interface type: SFP. Input voltage: 3.3 V. Compliance certificates: RoHS, Safety: UL, TUV, CDRH, Certification: CE, FCC, VCCI, C-Tick. Width: 14.8 mm, Depth: 11.8 mm, Height: 56.5 mm

Frequently Asked Questions

Is this product genuine OEM?

Yes, this D-Link 10GBASE SFP+ (DDM) network transceiver module Fiber optic 10000 Mbit/s 1310 nm (DEM-432XT-DD) is 100% genuine D-Link hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.

What warranty is included?

This D-Link 10GBASE SFP+ (DDM) network transceiver module Fiber optic 10000 Mbit/s 1310 nm includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.

How long does shipping take?

We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.

Can I return this product?

Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.

Is the D-Link 10GBASE SFP+ (DDM) network transceiver module Fiber optic 10000 Mbit/s 1310 nm compatible with my system?

Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the DEM-432XT-DD.
