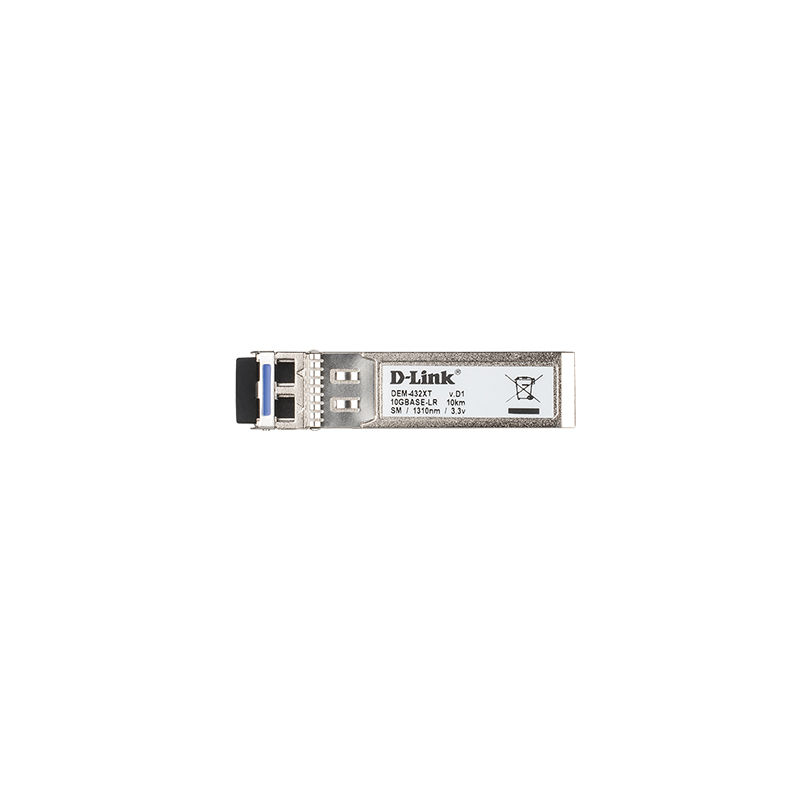

D-Link 10GBase-LR SFP+ Transceiver, 10km
Brand: D-Link · SKU: DEM-432XT · MPN: D-Link 10GBase-LR SFP+ Transceiver, 10km · Category: Networking
D-Link 10GBase-LR SFP+ Transceiver, 10km, Fiber optic, 10000 Mbit/s, SFP+, LC, 9/125 µm, LR
Specifications
| Depth | 11.8 mm |
|---|---|
| Width | 14.8 mm |
| Height | 56.5 mm |
| Safety | UL, TUV, CDRH |
| Weight | 19.5 g |
| Wavelength | 1310 nm |
| Link budget | 10.1 dB |
| Certification | CE, FCC, VCCI, MSA |
| Duplex system | Full |
| Package depth | 131 mm |
| Package width | 74 mm |
| Interface type | SFP+ |
| Package height | 49 mm |
| Package weight | 64 g |
| Product colour | Gold, Metallic |
| Rx power (max) | 0.5 dBmW |
| Rx power (min) | -12.6 dBmW |
| Tx power (max) | 0.5 dBmW |
| Tx power (min) | -8.5 dBmW |
| Maximum current | 300 A |
| Maximum voltage | 3.3 V |
| Hot-Plug support | Yes |
| Pallet gross width | 122 cm |
| Pallet gross length | 102 cm |
| Warranty | 3-Year Warranty |
| Weight | 19.5 g |
| Dimensions | 14.8 mm x 11.8 mm x 56.5 mm |
Product Description
D-Link’s 10G SFP+ Module series are hot-swappable SFP+ transceivers that plug into SFP+ slots on switches and support 10G Ethernet. The D-Link 10GBASE SFP+ Module Series transceivers offer customers a wide variety of 10G Ethernet connectivity options for data centers, enterprise wiring closets, and service provider transport applications. Enhanced Small Form-factor Pluggable Format The transceivers use the Enhanced Small Formfactor Pluggable format (SFP+). The SFP+ form factor is smaller than other form factors such as Xenpak, X2, and 10G XFP, ensuring lower costs, lower power disruption, and higher port density. They provide the necessary signal amplification for data to be transmitted to the network cable from the port, and vice versa, for the port to receive data from the network cable. Hot Pluggable All D-Link transceivers are hot-pluggable. You can connect a transceiver while the system is powered on without causing any problems. This permits modules to be added or removed without interrupting the network. 10G Ethernet speeds The transceivers all support 10G Ethernet, which results in very fast data transmissions of up to 10 Gbit/s. This is 10 times faster than Gigabit Ethernet and enables the switch to handle faster and higher data transmissions, making it very suitable for business needs.
Key Features
D-Link 10GBase-LR SFP+ Transceiver, 10km. SFP transceiver type: Fiber optic, Maximum data transfer rate: 10000 Mbit/s, Interface type: SFP+. Product colour: Gold, Metallic, Mean time between failures (MTBF): 4650000 h. Maximum voltage: 3.3 V, Maximum current: 300 A. Compliance certificates: RoHS, Safety: UL, TUV, CDRH, Certification: CE, FCC, VCCI, MSA. Width: 14.8 mm, Depth: 11.8 mm, Height: 56.5 mm
Technical Deployment Advisory
Target Personnel
Spine-Leaf Architects
Infrastructure Fit
Core Aggregation Layer
"The DEM-432XT is built for the professional requirements of Core Aggregation Layer. It supports management features essential for Spine-Leaf Architects overseeing enterprise fabrics."
Frequently Asked Questions
Is this product genuine OEM?
Yes, this D-Link 10GBase-LR SFP+ Transceiver, 10km (DEM-432XT) is 100% genuine D-Link hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This D-Link 10GBase-LR SFP+ Transceiver, 10km includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the D-Link 10GBase-LR SFP+ Transceiver, 10km compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the DEM-432XT.
