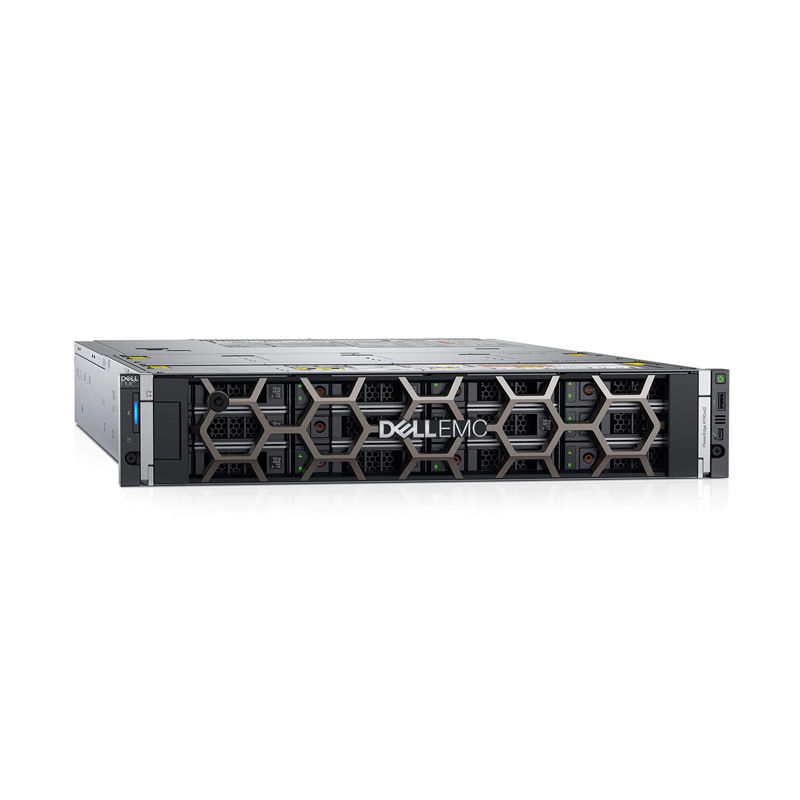

DELLR740xd-6, Dell PowerEdge R740XD Server, 2U/Intel 5118/8GB RAM/600G SAS 10K
SKU: DELLR740xd-6 · MPN: DELLR740xd-6 · Category: Components
Dell PowerEdge R740XD Server, 2U Chassis, 5118 Processor, 8G*1 Memory, 600G SAS 10K*1, H330, 495W*1 Power Supply, 3.5inch Hard Drive-12
Specifications
| Bezel | Optional LCD Bezel or Security bezel |
|---|---|
| Memory | 24 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2666MT/s, 3TB max Up to 12 NVDIMM, 192 GB Max Supports registered ECC DDR4 DIMMs only |
| Security | TPM 1.2/2.0 optional System Lockdown Cryptographically signed firmware Secure erase Secure Boot |
| Processor | Up to two Intel Xeon Processor Scalable Family processors, up to 28 cores per processor. |
| Dimensions | Form factor: Rack (2U) Max depth: 715.5 mm |
| Drive bays | Front bays: Up to 24 x 2.5” SAS/SATA (HDD/SSD), NVMe SSD max 153TB or up to 12 x 3.5” SAS/SATA HDD max 144TB Mid bay: Up to 4 x 2.5”, max 25TB SAS/SATA (HDD/SSD), NVMe SSD max 25TB or up to 4 x 3.5”, max 48TB Rear bays: Up to 4 x 2.5”, max 25TB SAS/SATA (HDD/SSD), NVMe SSD or up to 2 x 3.5” max 24TB SAS/SATA HDD |
| I/O & Ports | Network daughter card options 4 x 1GE or 2 x 10GE + 2 x 1GE or 4 x 10GE or 2 x 25GE Front ports: VGA, 2 x USB 2.0, dedicated IDRAC Direct Micro-USB Rear ports: VGA, Serial, 2 x USB 3.0, dedicated iDRAC network port Video card: VGA Riser options with p to 8 PCIe Gen 3 slots, maximum of 4 x 16 slots |
| Power supplies | Titanium 750W, Platinum 495W, 750W, 1100W, 1600W, and 2000W 48VDC 1100W, 380HVDC 1100W, 240HVDC 750W Hot plug power supplies with full redundancy Up to 6 hot plugs fans with full redundancy |
| System battery | CR 2032 3.0-V lithium coin cell system battery |
| Accelerator options | GPU and FPGA options are available only on 24 x 2.5” drive chassis. Nvidia Tesla P100, K80, K40, Grid M60, M10, P4, Quadro P4000, NVIDIA V100 or Intel Arria® 10 GX |
| Embedded management | IPMI 2.0 compliant iDRAC9 with Lifecycle Controller (Express, Enterprise) Quick Sync 2 wireless module optional |
| Storage controllers | Internal controllers: PERC H730P, H740P, Software RAID (SWRAID) S140 Boot Optimized Storage Subsystem: HWRAID 2 x M.2 SSDs 120GB or 240 GB External PERC (RAID): H840 12Gbps SAS HBAs (non-RAID): External-12Gbps SAS HBA (non-RAID): Internal- HBA330 (non-RAID) |
| OpenManage™ Software | OpenManage Enterprise OpenManage Essentials OpenManage Mobile OpenManage Power Center |
| Supported operating systems | Canonical Ubuntu LTS Citrix XenServer Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi |
| Integrations and connections | Integrations: Microsoft® System Center, VMware® vCenter™, BMC Software Connections: Nagios & Nagios XI, Oracle Enterprise Manager, HP Operations Manager, IBM Tivoli Netcool/OMNIbus, IBM Tivoli® Network Manager, CA Network and Systems Management |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this DELLR740xd-6, Dell PowerEdge R740XD Server, 2U/Intel 5118/8GB RAM/600G SAS 10K (DELLR740xd-6) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This DELLR740xd-6, Dell PowerEdge R740XD Server, 2U/Intel 5118/8GB RAM/600G SAS 10K includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the DELLR740xd-6, Dell PowerEdge R740XD Server, 2U/Intel 5118/8GB RAM/600G SAS 10K compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the DELLR740xd-6.
