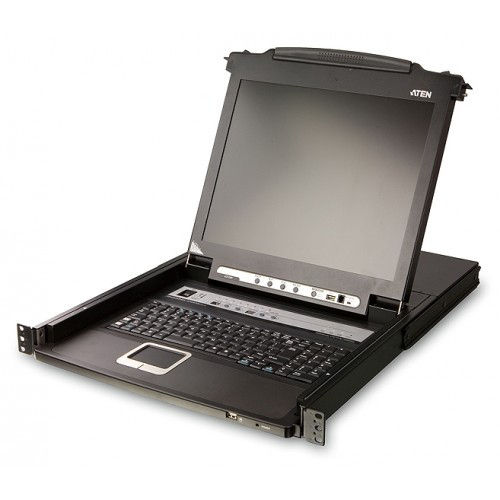

ATEN CL5708FM KVM switch Rack mounting Black
Brand: ATEN · SKU: DCP3015 · MPN: DCP3015 · Category: Data Center
ATEN CL5708FM, 1280 x 1024 pixels, Rack mounting, 28 W, 1U, Black. ATEN CL5708FM KVM switch Rack mounting Black (part number DCP3015) is an enterprise kvm switches product available from Server Tech Central. Key specifications include depth 634 mm, width 480 mm, height 440 mm, weight 1.38 kg, display LCD, i/o ports 1 x SPHD-18 1 x RJ-11 1 x DB-25, dc-in jack Yes, console port SPHD-18. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 634 mm |
|---|---|
| Width | 480 mm |
| Height | 440 mm |
| Weight | 1.38 kg |
| Display | LCD |
| I/O ports | 1 x SPHD-18 1 x RJ-11 1 x DB-25 |
| DC-in jack | Yes |
| Console port | SPHD-18 |
| Input voltage | 100-240 V |
| Rack capacity | 1U |
| Rack mounting | Yes |
| LED indicators | Yes |
| Product colour | Black |
| Mouse port type | USB |
| Built-in display | Yes |
| Housing material | Metal, Plastic |
| Maximum resolution | 1280 x 1024 pixels |
| USB 2.0 ports quantity | 1 |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Power consumption (typical) | 28 W |
| Number of computers controlled | 8 |
| Warranty | 3-Year Warranty |
| Weight | 1.38 kg |
| Dimensions | 480 mm x 634 mm x 440 mm |
Product Description
Features - Integrated KVM console with 17" or 19" LCD monitor in a Slideaway™ housing - Available with or without Fingerprint Identification Reader** - Space saving technology - up to two consoles (one bus) control up to 8 computers - Daisy-chain up to 31 additional units - control up to 256 computers from a single console (With compatible KVM Switches: ACS1208A, ACS1216A, CS1708A,CS1716A) - Dual Interface - supports computers and console with PS/2 or USB keyboards and mice - LCD module USB port allows each computer to access USB peripherals* - LCD module rotates up to 115 degrees for a more comfortable viewing angle - Multiplatform support – Windows, Linux, Mac, and Sun - Supports multimedia USB keyboards for PC, Mac and Sun - Auto PS/2 and USB interface detection - Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneous booting of multiple computers even when the console focus is elsewhere - Supports external USB mouse - Superior video quality - supports resolutions up to 1280 x 1024 @ 75 Hz - No software required - convenient computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menus - Auto-senses station's position on daisy-chained installations; no need for manual dip switch setting; front panel led indicates station's position - Port names automatically reconfigured when station sequence is changed - Two level password security - only authorized users can view and control computers - Supports one administrator and four user accounts with separate profiles - Auto Scan mode enables continuous monitoring of user-selected computers - Broadcast support - commands from the keyboard can be broadcast to all available computers on the installation - Hot pluggable - add or remove computers without having to power down the switch - Beeper on/off via hotkey and OSD - Firmware upgrades to all the chained KVM switches at the same time via the daisy-chain cable Package Contents - 1x CL5708 LCD KVM Switch with standard Rack Mount Kit - 1x 2L-5202P PS/2 KVM Cable - 1x 2L-5202U USB KVM Cable - 1x LIN5-27X6-U21G 5-in-1 USB / PS/2 Console Cable - 1x Firmware Upgrade Cable - 1x 1ADP-0005-005G Power Cord (AC Power Models) - 1x User Instructions
Key Features
ATEN CL5708FM. Mouse port type: USB, Console port: SPHD-18. Maximum resolution: 1280 x 1024 pixels. Product colour: Black, Rack capacity: 1U, Housing material: Metal, Plastic. Display: LCD. Input voltage: 100-240 V, Power consumption (typical): 28 W
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ATEN CL5708FM KVM switch Rack mounting Black (DCP3015) is 100% genuine ATEN hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ATEN CL5708FM KVM switch Rack mounting Black includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ATEN CL5708FM KVM switch Rack mounting Black compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the DCP3015.
