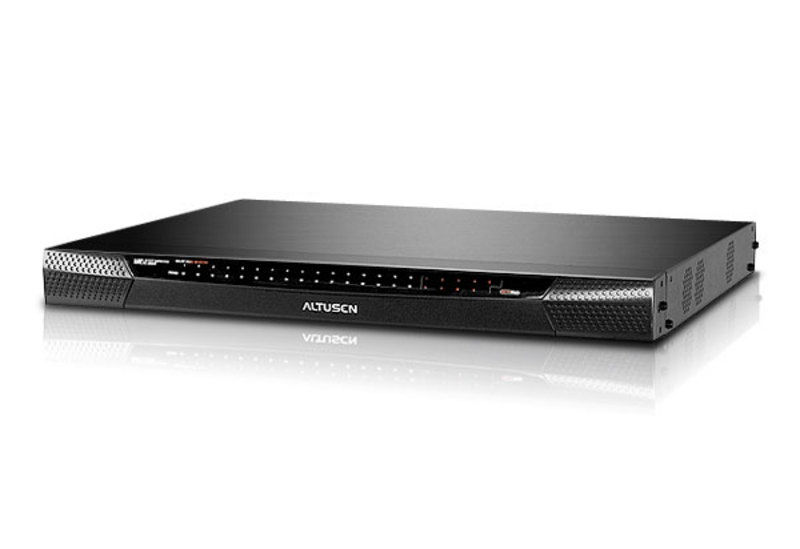

ATEN KM0932 KVM switch Rack mounting Black

Specifications

Product Description

Features Hardware - 9 consoles independently and simultaneously control up to 32 directly connected servers - Flexible expansion - the installation can grow as your needs grow: - Up to 7 Matrix Expansion KVM switches can be daisy chained from a master switch - Switches can be cascaded to three levels - Supports cascading KH1508/KH1516/KN2116A/KN2124v/KN2132/ KN2140v/ KN4116/ KN4124v/ KN4132/ KN4140v switches - Console expansion support - allows up to 18 consoles to access the servers on the installation by connecting servers with the KA7178 Dual Output KVM Adapter Cables or via a Dual Root configuration - Audio support for multimedia-capable devices - Redundant power supply for 24 x 7 reliability - Multiplatform support: PC, Mac, Sun, and Serial Console access – any type of console can control any type of computer; mixed combinations (PS/2 & USB) supported on both the console and computer sides - Compact design – rack mounts in only 1U of rack space * Dual Root configuration support depends on firmware version Ease-to-Use Interface - Full screen graphical user interface – saves on training time and costs – increases user efficiency - Embedded web interface for easy system configuration and management - Composite tree view – all connected devices are integrated in a single device tree for convenient management access and control - The port list automatically expands when stations are added – port names are automatically reconfigured when the station sequence changes - Multilingual user interface support – English, German, Japanese, Korean, Traditional Chinese, Simplified Chinese, Russian - Simplified OSD Mode sets limited functionality for all user type accounts Convenient Port Operation - Computer selection via GUI or intuitive hotkey combinations - Port level access control – users can only access the ports they have been authorized for – whether in a single-station or multi-stage installation - Console Selector allows setup of forced console to port connections for easy viewing and operation of computers - Push Video Hotkey allows a user to push their console’s port connection to another console for viewing or operating - Users can access features on multiple computers simultaneously – a user can be working and listening to music on computer 1 while utilizing virtual media on computer 2 at the same time - MultiView supports grouping for single port access to a computer connected to multiple ports utilizing multiple video cards - Multicast Audio gives multiple console access to the same KVM port – allowing both to listen to the audio being broadcast by that port - Versatile port operation modes for flexible server management: - Scan – provides automatic monitoring of user-selected computers - Exclusive – allows the first user to access a port to gain exclusive viewing rights and control over it for as long as he accesses it - Occupy – allows the first user to access a port to control that port while others can only view it - Share – allows multiple users to access and control a port at the same time on a cooperative basis - Broadcast support enables executing the same command on multiple servers at the same time - Disable Toolbar function – disables Toolbar from showing on the screen when the toolbar hotkey is used, instantly returning user to the GUI instead Management - Supports up to 1024 user and 255 group accounts - Three level password security: Super Administrator, Administrator, User - Stringent password policy features that include password expiration; required password changes, account disabling, and account expiration. - Disable OSD Mode allows non-authenticated logins - Disable RS-232 Login Mode allows non-authenticated serial terminal logins - Intelligent Path Assignment – a master station can allocate the best available path for the user under multi-path cascading and daisy-chaining - Power Over the NET™ integration for power control - Power Association enables the switch’s KVM ports to be associated with a PDU´s power outlets for remote power management of the servers from the switch’s interface - RS-232 port login support permits an administrator to control the KVM port access for all consoles connected to switch – any console can be assigned to access any KVM port from a single interface point - Session Management – a Kill Session function provides administrators with the ability to force user logouts - Backup and restore of configuration settings and user account information - Firmware upgrades can be performed simultaneously on all daisy chained and cascaded slave switches as well as connected adapter cables - Adapter ID – adapter cable’s configuration information is stored with the adapter – no need to reconfigure the adapter when moving a server to a new port - Remote authentication supports; RADIUS, LDAP, TACACS, LDAPS, and MS Active Director - Supports ATEN Log Server and Syslog Server Virtual Media - Virtual Media support lets you map storage media to servers that are connected to t

Key Features

ATEN KM0932. Networking standards: IEEE 802.3. Maximum resolution: 1280 x 1024 pixels, Scan interval: 240 s, Number of users: 1024 user(s). Product colour: Black, Rack capacity: 1U, Housing material: Metal. Power consumption (typical): 51 W. Compliance certificates: RoHS
