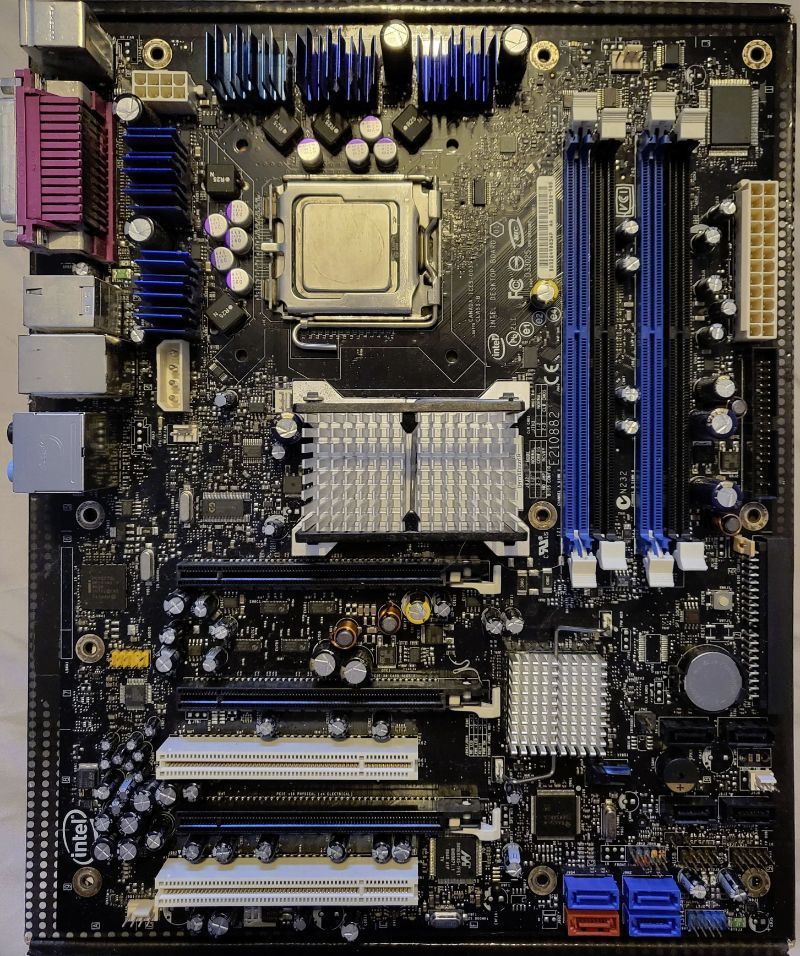

Intel Desktop Board D975XBX2 (Bad Axe 2)
Brand: Intel · SKU: D975XBX2 · MPN: BOXD975XBX2KR · Category: Components
The Intel Desktop Board D975XBX2 is an ATX motherboard based on the Intel 975X (Glenwood) chipset with the ICH7DH South Bridge. It supports Intel LGA 775 processors, including Core 2 Extreme, Core 2 Duo, Pentium Extreme Edition, Pentium D, and Pentium 4. It features support for up to 8 GB of DDR2 memory at 533/667/800 MHz in Dual Channel configuration. For graphics, it has three PCI Express x16 slots (supporting ATI CrossFire configuration with the top two running x16/x1 or x8/x8 electrical modes, and the third locked to x4 electrical mode) and two standard PCI slots. Storage includes four native SATA 3Gbps ports managed by the ICH7R supporting RAID 0, 1, 0+1, 5, and JBOD via Intel Matrix Storage Technology, plus additional SATA ports managed by a Marvell 88SE61XX RAID controller, along with one IDE (PATA) interface. Connectivity includes integrated 8-channel HD Audio via a SigmaTel STAC9274D codec, one Intel 82573L Gigabit Ethernet LAN Controller, eight USB 2.0 ports (4 rear, 4 intern
Specifications
| LAN | Gigabit Ethernet (Intel 82573L) |
|---|---|
| Audio | 8-Channel HD Audio (SigmaTel STAC9274D) with S/PDIF |
| Chipset | Intel 975X (MCH) / Intel 82801GDH (ICH7 DH) |
| FireWire | 2x FireWire-400 (Texas Instruments TSB43AB23) |
| USB Ports | 8x USB 2.0 |
| CPU Socket | LGA 775 |
| Max Memory | 8 GB (Dual Channel) |
| PATA Ports | 1x IDE |
| SATA Ports | 8x SATA (4x native ICH7R, 4x Marvell 88SE61XX) |
| Memory Type | DDR2 |
| Memory Speed | 800/667/533 MHz |
| Supported CPUs | Intel Core 2 Extreme, Core 2 Duo, Pentium Extreme Edition, Pentium D, Pentium 4, Celeron D |
| Expansion Slots | 3x PCI Express x16 (x16/x1 or x8/x8, x4 electrical); 2x PCI |
| Warranty | 3-Year Limited Warranty (Historically) |
| Weight | N/A |
| Dimensions | 12.0" x 9.6" (ATX) |
Key Features
The Intel D975XBX2 (Bad Axe 2) is an enthusiast-grade ATX motherboard from its era, built around the Intel 975X Express Chipset. It was designed to support high-performance LGA 775 processors like the Core 2 Extreme, offering features like ATI CrossFire support across its three PCIe x16 slots, robust power delivery for overclocking, and extensive connectivity including multiple SATA and legacy ports.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Intel Desktop Board D975XBX2 (Bad Axe 2) (D975XBX2) is 100% genuine Intel hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Intel Desktop Board D975XBX2 (Bad Axe 2) includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Intel Desktop Board D975XBX2 (Bad Axe 2) compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the D975XBX2.
