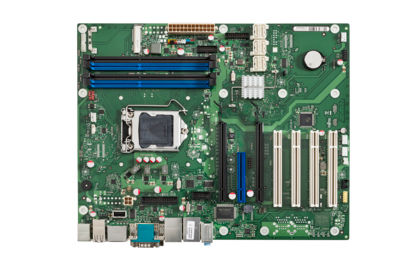

Fujitsu D3236-S motherboard Intel® Q87 LGA 1150 (Socket H3) ATX
Brand: Fujitsu · SKU: D3236-S · MPN: D3236-S · Category: Components
Fujitsu D3236-S, Intel, LGA 1150 (Socket H3), Intel® Celeron®, Intel® Pentium®, i3-4xxx, i5-4xxx, i7-4xxx, DDR3-SDRAM, 32 GB. Fujitsu D3236-S motherboard Intel® Q87 LGA 1150 (Socket H3) ATX (part number D3236-S) is an enterprise components product available from Server Tech Central. Key specifications include depth 304.8 mm, width 243.8 mm, bios type UEFI AMI, pci slots 4, audio chip Realtek ALC671, raid levels 0, 1, 5, 10, ethernet lan Yes, graphics card HD Graphics. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 304.8 mm |
|---|---|
| Width | 243.8 mm |
| BIOS type | UEFI AMI |
| PCI slots | 4 |
| Audio chip | Realtek ALC671 |
| RAID levels | 0, 1, 5, 10 |
| Ethernet LAN | Yes |
| Graphics card | HD Graphics |
| Microphone in | Yes |
| LAN controller | Intel® I210-AT, Intel I217LM |
| Memory voltage | 1.5 V |
| S/PDIF in port | No |
| DirectX version | 11.1 |
| Memory channels | Dual-channel |
| S/PDIF out port | No |
| Processor socket | LGA 1150 (Socket H3) |
| CPU fan connector | Yes |
| Headphone outputs | 1 |
| Memory slots type | DIMM |
| Power source type | ATX |
| Unbuffered memory | Yes |
| Wake-on-LAN ready | Yes |
| Parallel connector | Yes |
| USB 2.0 connectors | 3 |
| Warranty | 3-Year Warranty |
| Dimensions | 243.8 mm x 304.8 mm |
Product Description
The FUJITSU Industrial Mainboard D3236-S is the best choice for industrial requirements. Produced in the German Fujitsu Mainboard Factory in Augsburg, the D3236-S fulfills the highest quality needs. Featured by the Intel® Q87 Express Chipset, the 4th Generation of Intel® Core™ processors are supported. To fulfill the requirement about reliable and managable network connections, the Fujitsu D3236-S is equipped with two Intel® GbE LAN Controller which supports the latest Intel® Active Management Technology (iAMT9.0). The Fujitsu D3236-S is designed & approved for 24/7 continiuous operation also in enhanced temperature ranges up to 60°C. Finally an improved Thermal Management & System Monitoring Microcontroller enables the user to get the whole overview about the system status.
Key Features
Fujitsu D3236-S. Processor manufacturer: Intel, Processor socket: LGA 1150 (Socket H3), Compatible processor series: Intel® Celeron®, Intel® Pentium®. Supported memory types: DDR3-SDRAM, Maximum internal memory: 32 GB, Memory slots type: DIMM. Supported storage drive interfaces: Micro SATA, PCI Express 3.0, SATA III, RAID levels: 0, 1, 5, 10. Graphics card: HD Graphics. Ethernet interface type: Gigabit Ethernet, LAN controller: Intel® I210-AT, Intel I217LM
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Fujitsu D3236-S motherboard Intel® Q87 LGA 1150 (Socket H3) ATX (D3236-S) is 100% genuine Fujitsu hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Fujitsu D3236-S motherboard Intel® Q87 LGA 1150 (Socket H3) ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Fujitsu D3236-S motherboard Intel® Q87 LGA 1150 (Socket H3) ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the D3236-S.
