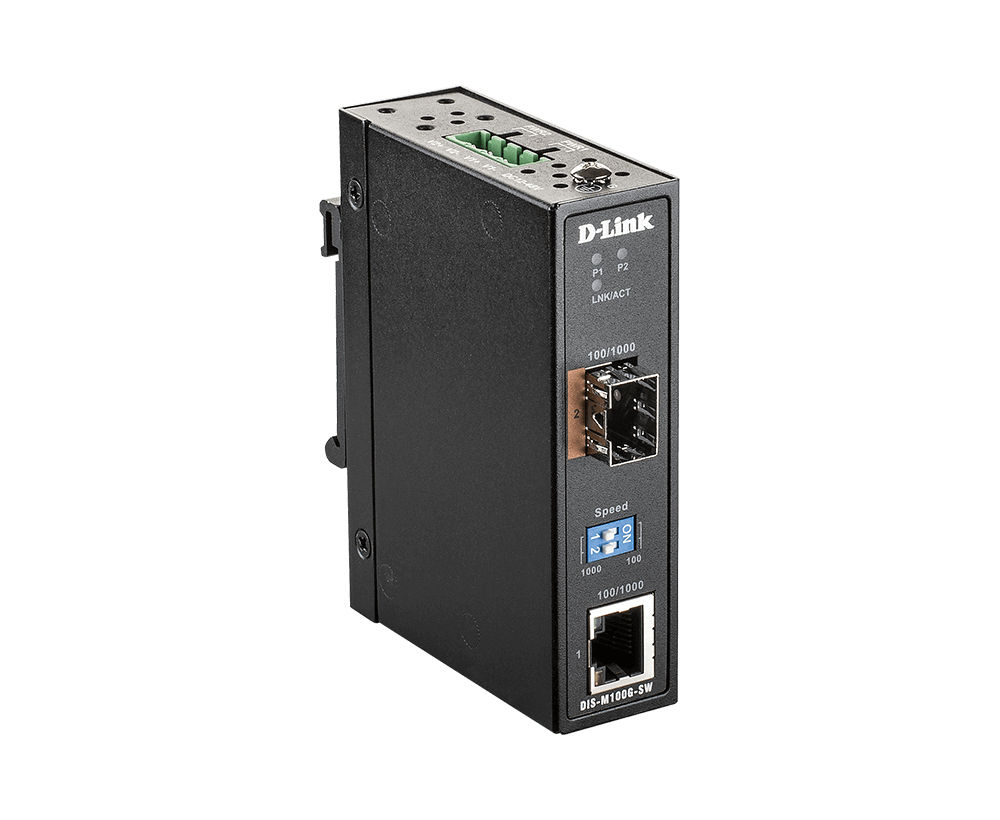

D-Link 100/1000 Mbps to SFP Industrial Media Converter with -40 to 70 °C operating range
Brand: D-Link · SKU: D-Link 100/1000 Mbps to SFP Industrial Media Converter with -40 to 70 °C operating range · MPN: D-Link 100/1000 Mbps to SFP Industrial Media Converter with -40 to 70 °C operating range · Category: Networking
D-Link 100/1000 Mbps to SFP Industrial Media Converter with -40 to 70 °C operating range, 4000 Mbit/s, 100BASE-FX, 100Base-TX, 1000Base-T, 1000Base-X, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, Gigabit Ethernet, 10,100,1000 Mbit/s, 2.976 pps
Specifications
| Depth | 95 mm |
|---|---|
| Width | 70 mm |
| Height | 26.1 mm |
| Weight | 190 g |
| Internal | No |
| DC-in jack | Yes |
| Certification | CE, FCC |
| Duplex system | Full, Half |
| Plug and Play | Yes |
| Auto MDI/MDI-X | Yes |
| LED indicators | Link, Network |
| Output voltage | 12 - 48 V |
| Product colour | Black |
| Auto-negotiation | Yes |
| Fiber mode structure | Multi-mode, Single-mode |
| Fiber ports quantity | 1 |
| Networking standards | IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Fiber optic connector | SFP |
| Connectivity technology | Wired |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Converter input interface | 100BASE-FX, 100Base-TX, 1000Base-T, 1000Base-X |
| Storage temperature (T-T) | -40 - 85 °C |
| Ethernet LAN (RJ-45) ports | 1 |
| Warranty | 3-Year Warranty |
| Weight | 190 g |
| Dimensions | 70 mm x 95 mm x 26.1 mm |
Product Description
D-Link’s Gigabit Industrial Unmanaged Media Converter turns an Ethernet connection into fiber, allowing for ultra-fast long distance connections. The DIS-M100G-SW media converter is housed in a highly resistant IP30-rated metal casing to protect the media converter from harsh environmental conditions. Meanwhile, the fanless design extends the life of the DIS-M100G-SW while also being able to operate in a wide temperature range from -40°C up to 70 °C. For increased flexibility, the DIS-M100G-SW can also be mounted on a DIN rail or conveniently mounted on a solid surface wall. In addition, the DIS-M100G-SW supports dual power input which allows for a redundant power supply configuration to make sure the media converter continues to operate in the event of a primary power supply failure. Extend Your Network Fiber-optic speeds are critical to success, but twisted-pair cabling can only go so far. Using D-Link’s converters you can change a twisted-pair Ethernet connection into a single-mode or multi-mode fiber connection that can go much further. Converters for distances of anywhere from 550 m to 80 km allow you to optimize your selection. No Wasted Space Its compact size fits anywhere and doesn’t require an entire rack. Measuring just 70 mm wide by 95 mm long by 26.1 mm in depth, with the total volume of one unit just 0.174 liters. This allows for convenient installation wherever it is needed, especially in limited space environments such as telecommunication cabinets or a distribution box. Plug and Play The media converters offered by D-Link include several industry-standard technologies that make them easy to operate, like 802.3u/x/ab. Auto-MDI/MDIX and Auto-Negotiation makes sure that your cable connection functions at the highest possible speed while remaining compatible. There’s no management software to configure – just simply connect the converter.
Key Features
D-Link 100/1000 Mbps to SFP Industrial Media Converter with -40 to 70 °C operating range. Maximum data transfer rate: 4000 Mbit/s, Converter input interface: 100BASE-FX, 100Base-TX, 1000Base-T, 1000Base-X, Networking standards: IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. Fiber mode structure: Multi-mode, Single-mode. LED indicators: Link, Network, Product colour: Black, International Protection (IP) code: IP30. Fiber optic connector: SFP, Connectivity technology: Wired. Output voltage: 12 - 48 V, Power consumption (typical): 3.6 W
