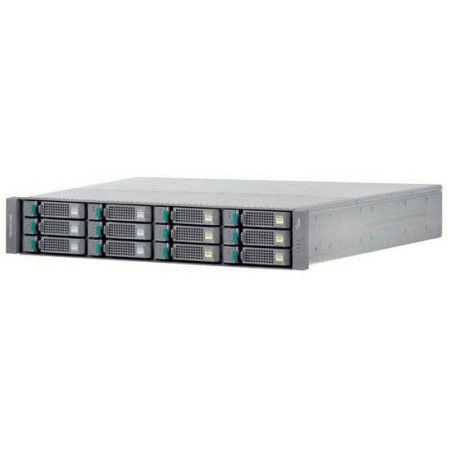

Fujitsu FibreCAT SX60 Rack (2U) 1.5 TB
Brand: Fujitsu · SKU: D:FCSX60P6-ILM · MPN: D:FCSX60P6-ILM · Category: Components
Fujitsu FibreCAT SX60, Rack (2U), 1.5 TB. Fujitsu FibreCAT SX60 Rack (2U) 1.5 TB (part number D:FCSX60P6-ILM) is an enterprise components product available from Server Tech Central. Key specifications include weight 30 kg, hdd speed 7200 RPM, raid levels 0, 1, 3, 5, 10, 50, chassis type Rack (2U), link/act led Yes, iscsi support Yes, dimensions (wxdxh) 446 x 571 x 87.5 mm, power requirements 230VAC, 50Hz. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Weight | 30 kg |
|---|---|
| HDD speed | 7200 RPM |
| RAID levels | 0, 1, 3, 5, 10, 50 |
| Chassis type | Rack (2U) |
| Link/Act LED | Yes |
| Certification | FCC, CE, RoHS, WEEE, GS, CSA US/C, CB, UL, cUL, CE, CSA-C22.2, EN 60950-2000, IEC 60950, GS, GOST, S-Mark |
| iSCSI support | Yes |
| Dimensions (WxDxH) | 446 x 571 x 87.5 mm |
| Power requirements | 230VAC, 50Hz |
| Networking features | Fast Ethernet |
| Management protocols | SNMP |
| Web-based management | Yes |
| Serial ports quantity | 1 |
| Storage drive capacity | 500 GB |
| Storage drive interface | Serial ATA, Serial ATA II |
| Ethernet LAN (RJ-45) ports | 1 |
| Operating temperature (T-T) | 5 - 40 °C |
| Supported network protocols | FCP, SCSI-3 |
| Compatible operating systems | Windows2003R2 (VSS/VDS) Red Hat AS4.0/5.0 SuSE SLES 9/10 VMware ESX 3.0/3.0.1/3.0.2 |
| Storage drive average seek time | 12 ms |
| Power supply unit (PSU) capacity | 600 W |
| Total installed storage capacity | 1.5 TB |
| Operating relative humidity (H-H) | 10 - 90% |
| Number of storage drives installed | 3 |
| Warranty | 3-Year Warranty |
| Weight | 30 kg |
Product Description
FibreCAT SX60 Storage systems you can simply rely on FibreCAT are the storage systems of Fujitsu Siemens Computers. Their highlights are scalability, reliability and technical brilliance. FibreCAT stands for the close integration and the smooth interaction of servers and storage systems. The innovative FibreCAT SX systems have been designed for quality, availability and user friendliness. They are very versatile and come at a very affordable price. FibreCAT SX systems support open, heterogeneous environments. FibreCAT SX60 The FibreCAT SX60 is the perfect system for small and medium sized companies. It offers up to 18TB of storage capacity with 1-2 enclosures with up to 12 disks each (either 250GB, 500GB or 750 GB). Optionally the system can be equipped with a second RAIDController. The FibreCAT SX60 offers enterprise class reliability. All this comes at a very affordable price. All critical components (RAID controllers – in the case of dual-controllersystems, fans, power supplies, disks) are redundant and can be swapped during operations. FibreCap™ technology protects RAID controller cache in case of power failure. The FibreCAT SX60 is a fast storage system. This comes from brand new 4Gbit per second Fibre Channel technology and FibreCache™, which uses a high performance interconnect to synchronize RAID controller caches directly. The FibreCAT SX60 can be set up quickly and easily. Key Features - Redundant RAID controllers, fans and power supplies that are hot swappable. FibreCap uses capacitor technology instead of batteries - to protect RAID controller cache during power outages. This permits the array to return to high performance mode within minutes following restore versus hours - A vast number of RAID levels - FibreCache is a high performance interconnect that keeps RAID controller caches synchronized - 4 Gigabit per second Fibre Channel technology - SATA II disk drives - Preloaded management software with intuitive web interface - Integrated with Microsoft Virtual Disk Services (VDS) - For heterogeneous environments and for PRIMERGY - Perfect for many scenarios (storage consolidation, clustering, tiered storage, backup-to-disk, VMware, etc.) - Build-in snapshots as a standard - Integration with Windows Volume Copy Shadow Services (VSS)
Key Features
Fujitsu FibreCAT SX60. Chassis type: Rack (2U). Total installed storage capacity: 1.5 TB
