CTS-SX20-PHD12X-K9, Cisco TelePresence System, 12x HD Camera/Table Mic/Remote
Brand: Cisco · SKU: CTS-SX20-PHD12X-K9 · MPN: CTS-SX20-PHD12X-K9 · Category: Security
$5,652.48
In Stock • 10 units

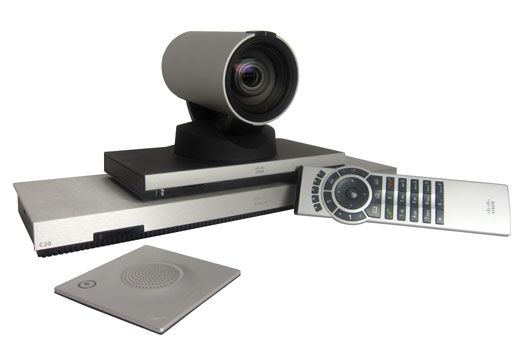

Cisco TelePresence CTS-SX20-PHD12X-K9 Quick Set with PrecisionHD 12x Camera, Table Microphone, and Remote Control
Specifications
| Model | CTS-SX20-PHD12X-K9 |
|---|---|
| Power | 鈼?nbsp; Auto-sensing power supply 鈼?nbsp; 100 - 240 VAC, 50/60 Hz 鈼?nbsp; Maximum 40 watts for codec and main camera |
| Weight | 11.02 kg |
| Bandwidth | 鈼?nbsp; H.323 and SIP up to 6Mbps |
| Protocols | 鈼?nbsp; H.323 鈼?nbsp; SIP 鈼?nbsp; ISDN (requires Cisco TelePresence ISDN Link) |
| Dual Stream | 鈼?nbsp; H.239 (H.323) dual stream 鈼?nbsp; BFCP (SIP) dual stream 鈼?nbsp; Support resolutions up to 1080p) at 30 frames per second |
| Audio Features | 鈼?nbsp; High quality 20KHz stereo 鈼?nbsp; Two acoustic echo cancellers 鈼?nbsp; Automatic Gain Control (AGC) 鈼?nbsp; Integration with third-party audio systems 鈼?nbsp; Automatic noise reduction 鈼?nbsp; Active lip synchronization |
| Video Features | 鈼?nbsp; Native 16:9 widescreen 鈼?nbsp; Advanced screen layouts 鈼?nbsp; Local auto-layout |
| Audio Standards | 鈼?nbsp; G.711, G.722, G.722.1, G.728, G.729, AAC-LD and OPUS |
| Video Standards | 鈼?nbsp; H.263, H.263+, H.264 |
| Other Interfaces | 鈼?nbsp; Two USB ports can be used for serial control |
| Security Features | 鈼?nbsp; Management using HTTPS and SSH 鈼?nbsp; IP administration password 鈼?nbsp; Menu administration password 鈼?nbsp; Disable IP services 鈼?nbsp; Network settings protection |
| System Management | 鈼?nbsp; Support for the Cisco TelePresence Management Suite 鈼?nbsp; Total management using embedded SNMP, Telnet, SSH, XML, SOAP 鈼?nbsp; Remote software upload: using web server, secure copy (SCP), HTTP, HTTPS 鈼?nbsp; Cisco TelePresence Touch 10 (optional) 鈼?nbsp; Remote control and on-screen menu system |
| Directory Services | 鈼?nbsp; Support for local directories (My Contacts) 鈼?nbsp; Unlimited entries using server directory supporting LDAP and H.350 (requires Cisco TelePresence Management Suite) 鈼?nbsp; Unlimited number for corporate directory (through Cisco TelePresence Management Suite) 鈼?nbsp; Received calls with date and time 鈼?nbsp; Placed calls with date and time 鈼?nbsp; Missed calls with date and time |
| Firewall Traversal | 鈼?nbsp; Cisco TelePresence Expressway Technology 鈼?nbsp; H.460.18, H.460.19 firewall traversal |
| Multipoint Support | 鈼?nbsp; Four-way embedded SIP/H.323 conferencing capability with MultiSite option 鈼?nbsp; Ad-hoc conferencing supported through: 鈼?nbsp; Unified Communications Manager Media Resource Group (requires a Cisco TelePresence MCU) 鈼?nbsp; Cisco TelePresence Multiway [requires Cisco TelePresence Video Communication Server (Cisco VCS) and a Cisco TelePresence MCU] 鈼?nbsp; Ability to natively join multipoint conferences hosted on Cisco Telepresence Multipoint Switch (CTMS) 鈼?nbsp; Switched conferencing (SVC) |
| Network Interfaces | 鈼?nbsp; One LAN and Ethernet (RJ-45) 10/100/1000 Mbit |
| Embedded Encryption | 鈼?nbsp; H.323 and SIP point-to-point 鈼?nbsp; Standards-based: H.235 v3 and Advanced Encryption Standard (AES) 鈼?nbsp; Automatic key generation and exchange 鈼?nbsp; Supported in dual stream |
| IP Network Features | 鈼?nbsp; DNS lookup for service configuration 鈼?nbsp; Differentiated services (quality of service [QoS]) 鈼?nbsp; IP-adaptive bandwidth management (including flow control) 鈼?nbsp; Automatic gatekeeper discovery 鈼?nbsp; Dynamic playout and lip-sync buffering 鈼?nbsp; H.245 Dual Tone Multi-frequency (DTMF) tones in H.323 鈼?nbsp; RFC 4733 DTMF tones in SIP 鈼?nbsp; Date and time support using Network Time Protocol (NTP) 鈼?nbsp; Packet loss-based down speeding 鈼?nbsp; Uniform resource identifier (URI) dialing 鈼?nbsp; TCP/IP 鈼?nbsp; DHCP 鈼?nbsp; 802.1x network authentication 鈼?nbsp; 802.1Q Virtual LAN 鈼?nbsp; 802.1p (QoS and class of service [QoS]) 鈼?nbsp; ClearPath |
| IPv6 Network Support | 鈼?nbsp; Single call stack support for both H323 and SIP 鈼?nbsp; Dual-stack IPv4 and IPv6 for DHCP, SSH, HTTP, HTTPS, DNS, DiffServ 鈼?nbsp; Support for both Static and Automatic IP configuration (stateless address auto configuration) |
| SX20 Codec Dimensions | 鈼?nbsp; Width: 11.8 inches (30.0cm) 鈼?nbsp; Height: 1.4 inches (3.4cm) 鈼?nbsp; Depth: 7.1 inches (18.0cm) 鈼?nbsp; Weight: 3.1 pounds (1.4 kg) |
| Product delivered with | 鈼?nbsp; SX20 Codec 鈼?nbsp; Cisco TelePresence Precision Camera (choice of Precision 40 or 12X) Cisco TelePresence Table Microphone 20 鈼?nbsp; TRC6 remote control 鈼?nbsp; Cables and power supply |
| Software compatibility | 鈼?nbsp; Cisco TelePresence Software Version TC 5.1 or later 鈼?nbsp; Cisco Collaboration Endpoint Software Version 8.0 or later (requires Touch 10 or TRC6 remote control) |
| Video Inputs (Two Inputs) | One HDMI and One DVI-I (Analog and Digital); supports formats up to maximum 1920x1080 @ 60 fps (HD1080p60), including: 鈼?nbsp; 640x480 鈼?nbsp; 720x480 鈼?nbsp; 720x576 鈼?nbsp; 800x600 鈼?nbsp; 848x480 鈼?nbsp; 1024x768 鈼?nbsp; 1152x864 鈼?nbsp; 1280x720 鈼?nbsp; 1280x1024 鈼?nbsp; 1280x768 鈼?nbsp; 1280x800 鈼?nbsp; 1280x960 鈼?nbsp; 1360x768 鈼?nbsp; 1366x768 鈼?nbsp; 1400x1050 鈼?nbsp; 1440x900 鈼?nbsp; 1680x1050 鈼?nbsp; 1920x1080 Extended Display Identification Data (EDID) |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this CTS-SX20-PHD12X-K9, Cisco TelePresence System, 12x HD Camera/Table Mic/Remote (CTS-SX20-PHD12X-K9) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This CTS-SX20-PHD12X-K9, Cisco TelePresence System, 12x HD Camera/Table Mic/Remote includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the CTS-SX20-PHD12X-K9, Cisco TelePresence System, 12x HD Camera/Table Mic/Remote compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the CTS-SX20-PHD12X-K9.
