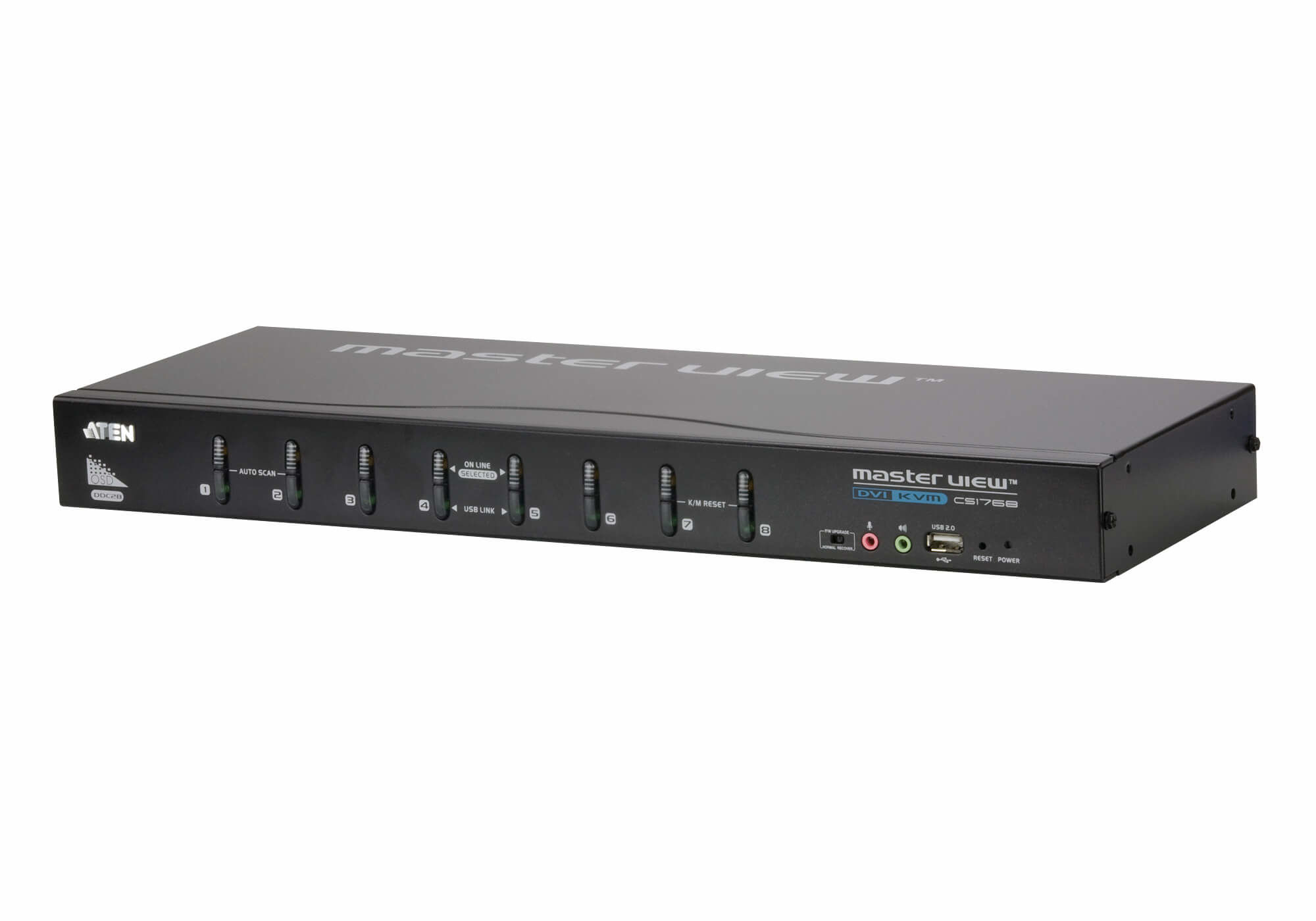

ATEN CS1768 KVM switch Blue
Brand: ATEN · SKU: CS1768 · MPN: CS1768 · Category: Data Center
ATEN CS1768, 2048 x 1536 pixels, 3.76 W, Blue. ATEN CS1768 KVM switch Blue (part number CS1768) is an enterprise kvm switches product available from Server Tech Central. Key specifications include depth 437.2 mm, width 161.1 mm, height 44 mm, manual Yes, weight 2.8 kg, scan interval 255 s, led indicators Yes, ports quantity 8. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 437.2 mm |
|---|---|
| Width | 161.1 mm |
| Height | 44 mm |
| Manual | Yes |
| Weight | 2.8 kg |
| Certification | TW I220489, CN ZL 02824593.8, DE 202004004227.4, JP 4558319, JP 4651633, TW 203183, TW I220476, TW I285828, US 6934398, US 6957287, US 7047344, US 7269265, US 7340556, US 7472217 RoHS |
| Scan interval | 255 s |
| LED indicators | Yes |
| Ports quantity | 8 |
| Product colour | Blue |
| Cables included | KVM |
| Mouse port type | USB |
| Video port type | DVI-I |
| Housing material | Metal |
| Headphone outputs | 8 |
| Keyboard port type | USB |
| Maximum resolution | 2048 x 1536 pixels |
| AC adapter included | Yes |
| DVI-I ports quantity | 8 |
| USB 2.0 ports quantity | 10 |
| Compliance certificates | RoHS |
| Connectivity technology | Wired |
| Quick installation guide | Yes |
| Maximum analog resolution | 2048 x 1536 pixels |
| Warranty | 3-Year Warranty |
| Weight | 2.8 kg |
| Dimensions | 161.1 mm x 437.2 mm x 44 mm |
Product Description
The CS1768 8-port USB DVI KVM Switch is a multi-purpose appliance that consolidates access and control of up to 8 computers from a single USB keyboard, USB mouse, and dual-monitor (DVI-I and VGA) console. It can be cascaded to three levels – allowing up to 73 CS1768s to control up to 512 computers – all from the original single console, making it ideal for industry-grade IT applications and management. In addition, the CS1768 features multi-display functionality, which enables the use of standard USB cables to stack up to four switches for quad-displaying in multiple-monitor installations where each computer is fitted with multiple video cards. It allows you to contrast, analyse and monitor video output in convenient ways, substantially simplifying the working environment. Furthermore, the CS1768 comes with ATEN’s on-screen display (OSD) function, which can access any computer connected to the installation, it also offers OSD configuration back up/restore to save/ back up the OSD settings and restore them as needed. The CS1768 provides multimedia keyboard support and is audio enabled. Two microphones can provide audio input to each of the computers, and you can listen to the audio output of each computer on two sets of speakers (on a one-at-a-time basis).
Key Features
ATEN CS1768. Keyboard port type: USB, Mouse port type: USB, Video port type: DVI-I. Maximum resolution: 2048 x 1536 pixels, Maximum digital resolution: 1920 x 1200 pixels, Maximum analog resolution: 2048 x 1536 pixels. Product colour: Blue, Housing material: Metal, Certification: TW I220489, CN ZL 02824593.8, DE 202004004227.4, JP 4558319, JP 4651633, TW 203183, TW I220476, TW.... Power consumption (typical): 3.76 W. Compliance certificates: RoHS
