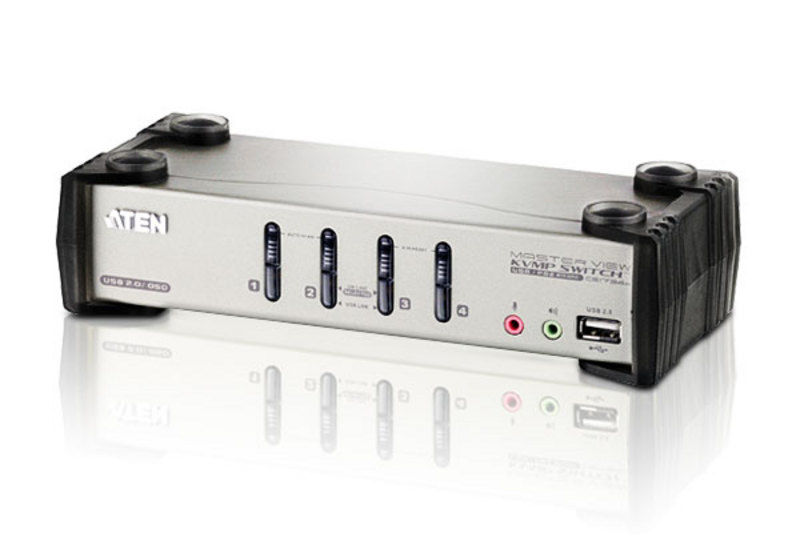

ATEN CS1734B-AT-E KVM switch Black, Metallic
Brand: ATEN · SKU: CS1734B-AT-E · MPN: CS1734B-AT-E · Category: Data Center
ATEN CS1734B-AT-E, 2048 x 1536 pixels, QXGA, 1.02 W, Black, Metallic
Specifications
| Depth | 210 mm |
|---|---|
| Width | 88 mm |
| Height | 55.5 mm |
| Weight | 1.95 kg |
| HD type | QXGA |
| USB hub | Yes |
| Hot keys | Yes |
| Push button | Yes |
| Power source | DC |
| Console ports | 3.5mm headphone, 3.5mm mic, USB A, VGA (D-Sub) |
| DDC2B support | Yes |
| Input voltage | 5 V |
| Package depth | 283 mm |
| Package width | 100 mm |
| Scan interval | 1,255 s |
| Package height | 173 mm |
| Package weight | 2.09 kg |
| Product colour | Black, Metallic |
| Cables included | KVM, USB |
| Mouse port type | USB, PS/2 |
| Video bandwidth | 60 Hz |
| Video port type | VGA |
| Built-in display | No |
| Housing material | Metal |
| Warranty | 3-Year Warranty |
| Weight | 1.95 kg |
| Dimensions | 88 mm x 210 mm x 55.5 mm |
Product Description
The CS1734B is 4-port KVM switch combined with a 2-port USB 2.0 hub. As a KVM switch, it allows users to access four computers from a single keyboard, monitor, and mouse console. There are four methods to obtain instant access to any computer in your installation: Pushbuttons, Hotkeys, OSD, and mouse. 1x CS1734B 4-Port USB 2.0 KVMP™ Switch 2x 2L-5301U USB KVM Cables (1.2m) 2x 2L-5302U USB KVM Cables (1.8m) 2x OSD/Hotkey Stickers 1x LIN5-04A2-J13G Firmware Upgrade Cable 1x 0AD8-1605-24M1 Power Adapter 1x User Instructions
Key Features
ATEN CS1734B-AT-E. Keyboard port type: USB, PS/2, Mouse port type: USB, PS/2, Video port type: VGA. HD type: QXGA, Maximum resolution: 2048 x 1536 pixels, Video bandwidth: 60 Hz. Product colour: Black, Metallic, Housing material: Metal. Power source: DC, Input voltage: 5 V, Power consumption (typical): 1.02 W. Width: 88 mm, Depth: 210 mm, Height: 55.5 mm
