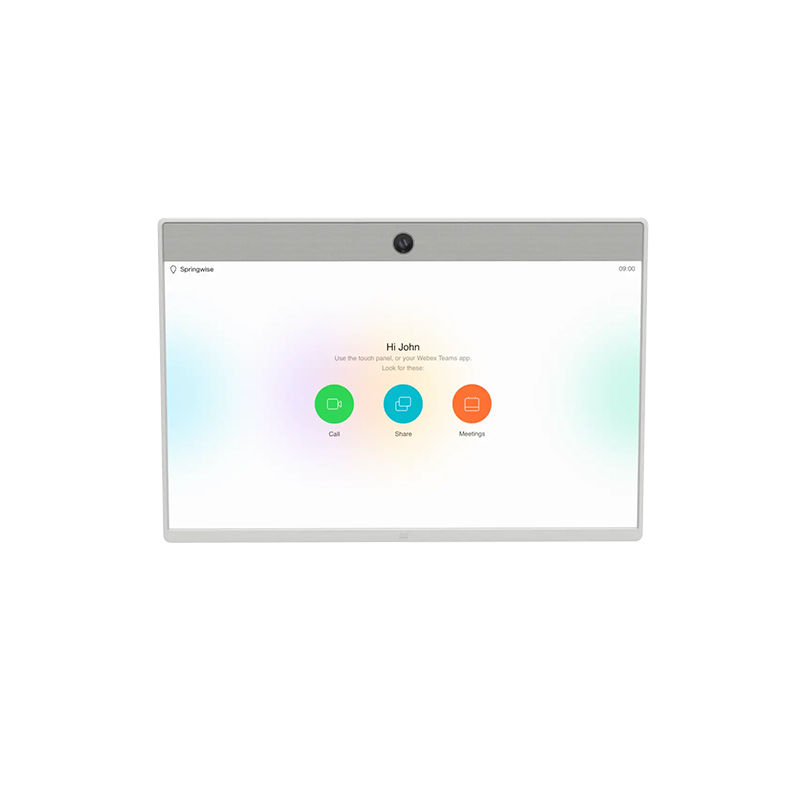

CS-ROOM55-K9, Cisco Webex Room 55, Video Conferencing Terminal/Upfront pricing/GPL

SKU: CS-ROOM55-K9 · MPN: CS-ROOM55-K9 · Category: Components

CS-ROOM55-K9, Cisco Webex Room 55, Video Conferencing Terminal/Upfront pricing/GPL
Request for Quote
In Stock • 10 units

Cisco Webex Room 55: Upfront pricing (GPL)

View Components Products

Specifications

Power● 100 to 240 VAC, 50/60 Hz, 12V DC input ● Average 20W, peak 70W
Bandwidth● Up to 6 Mbps point-to-point
Protocols● H.323 ● SIP ● Cisco Webex
Dimensions● Width: 27.5 in. (70.0 cm) ● Height: 3.5 in. (10.6 cm) ● Depth: 2.9 in. (8.8 cm) ● Weight: 7 lb. (3.2 kg)
Dual stream● H.239 (H.323) dual stream ● Binary Floor Control Protocol (BFCP) (SIP) dual stream ● Supports resolutions up to 3840 x 2160p5
Audio inputs● Two microphones, 4-pin mini-jack ● One audio in from HDMI ● Internal microphone ● Bluetooth ® - Not available on Non Radio Version *
Call Control● Cisco Unified Communications Manager (CUCM) ◦ Native registration with CUCM ◦ Requires CUCM Version 10.5.2 or later with device pack for Room Kit ● Cisco Expressway ◦ Native registration with Expressway ● Cisco Webex Service ● Third-party H.323 Gatekeepers and standards-based SIP proxies
Video inputs● One HDMI input supports formats up to maximum 4K (3840 x 2160) at 30 fps including HD1080p60 ● Consumer Electronics Control (CEC) 2.0
Video outputs● Two HDMI outputs support formats up to 3840 x 2160p60 (4Kp60) ● Live video resolutions (encode and decode) up to 1920 x 1080p30 and p60 (HD1080p) ● Consumer Electronics Control (CEC) 2.0
Audio features● High-quality 20 kHz audio ● Prepared for subwoofer (line out) ● Prepared for inductive loop (line out) ● Automatic Gain Control (AGC) ● Automatic noise reduction ● Active lip synchronization
Audio standards● G.711, G.722, G.722.1, G.729, AAC-LD, and Opus
Camera Overview● 5K UltraHD camera ● Supports up to 60 fps (max 30 fps with speaker tracking and best overview enabled) ● 15.1 MP image sensor (5184 x 2916 pixels) ● 1/1.7 CMOS ● 3x zoom ● f/2.0 aperture ● 83° horizontal field of view; 51.5° vertical field of view ● Auto framing (audio + face detect) ● Auto focus, brightness, and white balance ● Focus distance 1 m to infinity
Video standards● H.264, H.265
Other interfaces● USB 2.0 port, micro USB port, factory reset pinhole
Speaker tracking● 6-element microphone array for accurate speaker tracking
Wireless sharing● Webex app appt (up to 3840 x 2160p5) ● Cisco Intelligent Proximity client (up to 1920 x 1080p5) ● Miracast (1080p30) – Not available on Non radio version
Locking mechanism● Kensington security lock
Security features● Management using HTTPS and SSH ● IP administration password ● Menu administration password ● Disable IP services ● Network settings protection
Firewall traversal● Cisco Expressway ™ technology ● H.460.18, H.460.19 firewall traversal
Multipoint support● 4-way embedded SIP/H.323 conferencing capability with MultiSite option
Network interfaces● One Ethernet (RJ-45) 10/100/1000 for LAN ● One Ethernet (RJ-45) for Webex Room Navigator touch panel direct pairing ● Wi-Fi 802.11a/b/g/n/ac 2.4 GHz/5 GHz - not available in non-radio versions Note: Due to compliance regulations, it is required that 802.11d is enabled in the access point for the product to operate properly within 5725 MHz—5875 MHz. Using a Wifi connection is a flexible option, however an Ethernet connection is always preferred for high performance.
Embedded encryption● H.323 and SIP point-to-point ● Standards-based: H.235 v3 and Advanced Encryption Standard (AES) ● Automatic key generation and exchange
IP network features● DNS lookup for service configuration ● Differentiated services (Quality of Service [QoS]) ● IP-adaptive bandwidth management (including flow control) ● Automatic gatekeeper discovery ● Dynamic playout and lip-sync buffering ● H.245 Dual-Tone Multifrequency (DTMF) tones in H.323 ● RFC 4733 DTMF tones in SIP ● Date and time support using Network Time Protocol (NTP) ● Media adaptation and resilience ● Uniform Resource Identifier (URI) dialing ● Dynamic Host Configuration Protocol (DHCP) ● 802.1X network authentication ● 802.1Q Virtual LAN ● 802.1p (QoS and Class of Service [CoS])
IPv6 network support● Single call stack support for both H.323 and SIP ● Dual-stack IPv4 and IPv6 for DHCP, SSH, HTTP, HTTPS, DNS, DiffServ ● Support for both static and automatic IP configuration (stateless address auto configuration)
Warranty3-Year Warranty

Key Features

  • OEM Genuine Component verified by certified technicians.
  • Clean serial number ready for service contract registration.
  • Electrostatic Discharge (ESD) safe packaging.
  • Supports hot-swapping for zero-downtime maintenance.

Frequently Asked Questions

Is this product genuine OEM?

Yes, this CS-ROOM55-K9, Cisco Webex Room 55, Video Conferencing Terminal/Upfront pricing/GPL (CS-ROOM55-K9) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.

What warranty is included?

This CS-ROOM55-K9, Cisco Webex Room 55, Video Conferencing Terminal/Upfront pricing/GPL includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.

How long does shipping take?

We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.

Can I return this product?

Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.

Is the CS-ROOM55-K9, Cisco Webex Room 55, Video Conferencing Terminal/Upfront pricing/GPL compatible with my system?

Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the CS-ROOM55-K9.
