Vertiv CPS810 Appliance - Console Port Server, 8 port with vConsole software KVM switch Rack mounting
Brand: Vertiv · SKU: CPS810-EU · MPN: CPS810-EU · Category: Data Center
Vertiv CPS810 Appliance - Console Port Server, 8 port with vConsole software, Rack mounting, 1U
Specifications
| I/O ports | Network Interface: 10Base-T/100-BaseTX, autosense SSH v2: with username/password and key-based authentication methods Telnet SSL RADIUS PPP SNMP: MIB2 and traps TFTP Bootp Ping ARP Serial Interface: 8 RJ45 serial ports Hardware and software flow control Modem support Hardware break suppression Unsurpassed surge protection: 15K volts, all pins DB-9 and DB-25 serial adapters |
|---|---|
| Rack capacity | 1U |
| Rack mounting | Yes |
| Power supply type | 100~250V 0.5A |
| Dimensions (WxDxH) | 222.2 x 203.2 x 44.4 mm |
| Operating temperature (T-T) | 0 - 40 °C |
| Compliance industry standards | IEC No. 60950 2nd Ed. A1, A2, A3, A4, CSA C22.2 No. 950, UL 1950 3rd ed.IEC CB Scheme, FCC Part 15 Class A, EN 55022: 1998 Class A, EN 610003-2, EN 610003-3; EN 55024: 1998, EN 55082-1 Immunity, 73/23/EEC, EMC Directive 89/336/EEC, CE-Mark 93/68/EEC |
| Warranty | 3-Year Warranty |
Product Description

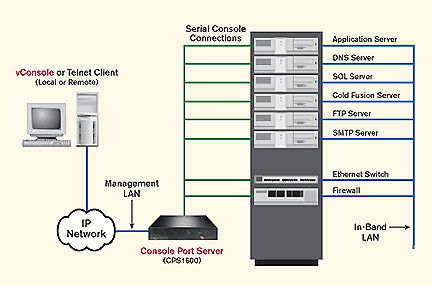

The Avocent CPS delivers secure and reliable serial-over-IP access to console ports of servers and serially managed devices such as network hubs and routers. Cutting-edge console port server features such as offline history buffering and hardware break suppression distinguish the CPS from simplistic terminal servers, which are often misused for this purpose. The CPS is available in 8 and 16-port models in a 1U form factor. To meet the needs of small, medium and large data centres, CPS units, and attached devices, can be centrally managed using Avocent’s unique DS Management Software, or accessed in standalone manner using third-party software or Avocent’s vConsole Management Software. DS Series Operation: For use in large data centres, the CPS may be configured to work in unison with other Avocent appliances such as the DS1800, the DSR and the SPC. When attached to the KVM, serial, and power ports of devices within data centre, these appliances enable administrators to manage those devices through local access at the rack or remote access over IP connections. Standalone Operation: For small-to-mid-sized data centres, the CPS may be configured for standalone operation. In this mode, the CPS can be used in conjunction with third-party Telnet and/or SSH client software for secure console port management. User accounts and permissions may be stored within the CPS or on an external RADIUS server.
Key Features
Vertiv CPS810 Appliance - Console Port Server, 8 port with vConsole software. Rack capacity: 1U. Power supply type: 100~250V 0.5A, Dimensions (WxDxH): 222.2 x 203.2 x 44.4 mm, Compliance industry standards: IEC No. 60950 2nd Ed. A1, A2, A3, A4, CSA C22.2 No. 950, UL 1950 3rd ed.IEC CB Scheme, FCC Part 15...
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Vertiv CPS810 Appliance - Console Port Server, 8 port with vConsole software KVM switch Rack mounting (CPS810-EU) is 100% genuine Vertiv hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Vertiv CPS810 Appliance - Console Port Server, 8 port with vConsole software KVM switch Rack mounting includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Vertiv CPS810 Appliance - Console Port Server, 8 port with vConsole software KVM switch Rack mounting compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the CPS810-EU.
