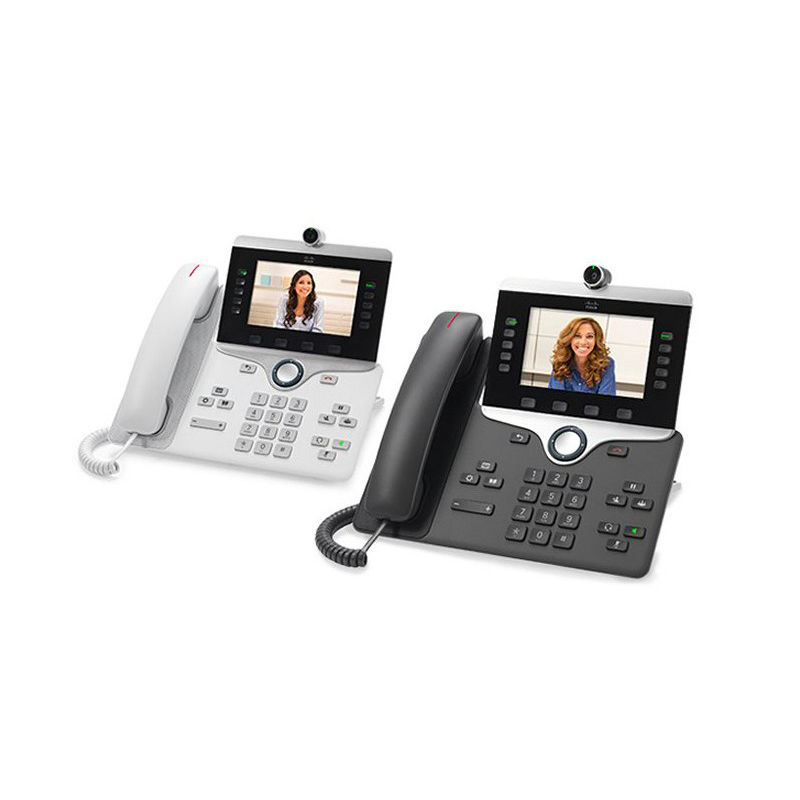

CP-8865-K9, Cisco 8800 IP Phone, 5-inch Display/HD Audio/USB Port
Brand: Cisco · SKU: CP-8865-K9 · MPN: CP-8865-K9 · Category: Components
Specifications
| USB | 鈼?nbsp; Two USB ports enhance the usability of call handling by enabling wired or wireless headsets, in addition to providing charging capability to mobile devices such as smartphones or tablets 鈼?nbsp; A side USB port provides up to 500mA power output at 5V or 2.5W 鈼?nbsp; A back USB (in yellow) port provides 500mA power output and is upgradable to support up to 2.1A power output at 5V or 10.5W |
|---|---|
| Keys | 鈼?nbsp; The phone has the following keys: 鈼?nbsp; Line keys 鈼?nbsp; Soft keys 鈼?nbsp; Back and release keys 鈼?nbsp; Four-way navigation and select keys 鈼?nbsp; Hold/Resume, Transfer, and Conference keys 鈼?nbsp; Messaging, Application, and Directory keys 鈼?nbsp; Standard keypad 鈼?nbsp; Volume-control toggle key 鈼?nbsp; Speakerphone, Headset, and Mute keys |
| Model | CP-8865-K9 |
| Video | 鈼?nbsp; 720p HD video (encode and decode) 鈼?nbsp; H.264 and Cisco Application Visibility and Control (AVC) |
| Weight | 2.97 kg |
| Handset | 鈼?nbsp; The handset is a standard wideband-capable audio handset (connects through an RJ-9 port) 鈼?nbsp; The standard coiled cord has a custom end for concealed cable routing beneath the phone (cord length is approximately 21in. [55cm] coiled and up to 72in. (183cm) extended) 鈼?nbsp; The handset is hearing aid-compatible (HAC) and meets Federal Communications Commission (FCC) loudness requirements for the Americans with Disabilities Act (ADA). You can achieve Section 508 loudness requirements by using industry-standard inline handset amplifiers such as Walker Equipment W-10 or CE-100 amplifiers. The dial pad is also ADA-compliant |
| AUX port | 鈼?nbsp; You can use an auxiliary port to support electronic hookswitch control with a third-party headset connected to it |
| Humidity | 鈼?nbsp; Operating 10 to 90%, noncondensing 鈼?nbsp; Nonoperating 10 to 95%, noncondensing |
| Bluetooth | 鈼?nbsp; The phone offers Bluetooth Enhanced Data Rate (EDR) Class 1 technology (up to 66-ft [20m] range) 鈼?nbsp; Hands-Free Profile (HFP) is supported for untethered headset connections and voice communications 鈼?nbsp; Phone Book Access Profile (PBAP) is supported for phone book object exchange between devices |
| Speakerphone | 鈼?nbsp; The full-duplex speakerphone gives you flexibility in placing and receiving calls with hands free. For added security, the audible dual tone multifrequency (DTMF) tones are masked when the speakerphone mode is used. |
| Wi-Fi client | 鈼?nbsp; As an alternative to wired Ethernet, the 8865 supports a Wi-Fi radio with integrated antenna enabling connectivity to a Wi-Fi access-point infrastructure, thereby saving on the labor costs of pulling Ethernet cables to every work location. Complete Wi-Fi specifications are included in Table 3 later in this document |
| Analog headset | 鈼?nbsp; The analog headset jack is a standard wideband-capable RJ-9 audio port |
| Wall-mountable | 鈼?nbsp; You can install the phone on a wall using an optional wall-mount kit (orderable separately) |
| Ethernet switch | 鈼?nbsp; An internal 2-port Cisco Ethernet switch allows for a direct connection to a 10/100/1000BASE-T Ethernet network (IEEE 802.3i/802.3u/802.3ab) through an RJ-45 interface with single LAN connectivity for both the phone and a co-located PC 鈼?nbsp; The system administrator can designate separate VLANs (IEEE 802.1Q) for the PC and phone, providing improved security and reliability of voice and data traffic |
| Ergonomic design | 鈼?nbsp; The phone offers an easy-to-use interface and provides a traditional telephony-like user experience |
| Language support | 鈼?nbsp; Arabic (Arabic Area) 鈼?nbsp; Bulgarian (Bulgaria) 鈼?nbsp; Catalan (Spain) 鈼?nbsp; Chinese (China) 鈼?nbsp; Chinese (Hong Kong) 鈼?nbsp; Chinese (Taiwan) 鈼?nbsp; Croatian (Croatia) 鈼?nbsp; Czech (Czech Republic) 鈼?nbsp; Danish (Denmark) 鈼?nbsp; Dutch (Netherlands) 鈼?nbsp; English (United Kingdom) 鈼?nbsp; Estonian (Estonia) 鈼?nbsp; French (Canada) 鈼?nbsp; French (France) 鈼?nbsp; Finnish (Finland) 鈼?nbsp; German (Germany) 鈼?nbsp; Greek (Greece) 鈼?nbsp; Hebrew (Israel) 鈼?nbsp; Hungarian (Hungary) 鈼?nbsp; Italian (Italy) 鈼?nbsp; Japanese (Japan) 鈼?nbsp; Latvian (Latvia) 鈼?nbsp; Lithuanian (Lithuania) 鈼?nbsp; Korean (Korea Republic) 鈼?nbsp; Norwegian (Norway) 鈼?nbsp; Polish (Poland) 鈼?nbsp; Portuguese (Portugal) 鈼?nbsp; Portuguese (Brazil) 鈼?nbsp; Romanian (Romania) 鈼?nbsp; Russian (Russian Federation) 鈼?nbsp; Spanish (Columbia) 鈼?nbsp; Spanish (Spain) 鈼?nbsp; Slovak (Slovakia) 鈼?nbsp; Swedish (Sweden) 鈼?nbsp; Serbian (Republic of Serbia) 鈼?nbsp; Serbian (Republic of Montenegro) 鈼?nbsp; Slovenian (Slovenia) 鈼?nbsp; Thai (Thailand) 鈼?nbsp; Turkish (Turkey) |
| Network features | 鈼?nbsp; Session Initiation Protocol (SIP) for signaling 鈼?nbsp; Session Description Protocol (SDP) 鈼?nbsp; IPv4 and IPv6 鈼?nbsp; User Datagram Protocol (UDP) (used only for Real-Time Transport Protocol [RTP] streams) 鈼?nbsp; Dynamic Host Configuration Protocol (DHCP) client or static configuration 鈼?nbsp; Gratuitous Address Resolution Protocol (GARP) 鈼?nbsp; Domain Name System (DNS) 鈼?nbsp; Trivial File Transfer Protocol (TFTP) 鈼?nbsp; Secure HTTP (HTTPS) 鈼?nbsp; VLAN 鈼?nbsp; Real-Time Transport Protocol (RTP) 鈼?nbsp; Real-Time Control Protocol (RTCP) 鈼?nbsp; Cisco Peer-to-Peer Distribution Protocol (PPDP) 鈼?nbsp; Cisco Discovery Protocol 鈼?nbsp; LLDP (including LLDPMedia Endpoint Discovery [LLDP-MED]) 鈼?nbsp; Switch speed auto-negotiation |
| Backlit indicator | 鈼?nbsp; The phone supports backlit indicators for the audio path keys (Handset, Headset, and Speakerphone), select key, line keys, and message waiting |
| Graphical display | 鈼?nbsp; The 800 × 480, 24-bit color, 5-in. WVGA display provides scrollable access to calling features and text-based XML applications |
| Physical security | 鈼?nbsp; The phone is compatible with the Kensington Security Slot (K-Slot) antitheft system |
| Replaceable bezel | 鈼?nbsp; The phone includes a black bezel; an optional silver bezel is also orderable separately |
| Security features | 鈼?nbsp; Secure boot 鈼?nbsp; Secure credential storage 鈼?nbsp; Device authentication 鈼?nbsp; Configuration file authentication and encryption 鈼?nbsp; Image authentication 鈼?nbsp; Random bit generation 鈼?nbsp; Hardware cryptographic acceleration 鈼?nbsp; Certificate Authority Proxy Function (CAPF) 鈼?nbsp; Manufacturer-Installed Certificates (MIC) 鈼?nbsp; Locally Significant Certificates (LSC) 鈼?nbsp; Ethernet 802.1x supplicant options: Extensible Authentication Protocol-Flexible Authentication via Secure Tunneling (EAP-FAST) and Extensible Authentication Protocol-Transport Layer Security (EAP-TLS) 鈼?nbsp; Signaling authentication and encryption using TLS 鈼?nbsp; Media authentication and encryption using SRTP 鈼?nbsp; HTTPS for client and server 鈼?nbsp; Secure Shell (SSH) Protocol server 鈼?nbsp; Secure Sockets Layer (SSL)-based VPN client |
| Audio codec support | 鈼?nbsp; G.711 a-law and mu-law, G.722, G.729a, Internet Low Bitrate Codec (iLBC), and Internet Speech Audio Codec (iSAC) |
| Cisco Power Injector | 鈼?nbsp; 8865 is compatible with Cisco Aironet Power Injector AIR_PWRINJ6=, which can provide an alternative POE solution when the LAN switch doesn’t support POE and the customer mandates one RJ45 cable to the table strategy. |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this CP-8865-K9, Cisco 8800 IP Phone, 5-inch Display/HD Audio/USB Port (CP-8865-K9) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This CP-8865-K9, Cisco 8800 IP Phone, 5-inch Display/HD Audio/USB Port includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the CP-8865-K9, Cisco 8800 IP Phone, 5-inch Display/HD Audio/USB Port compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the CP-8865-K9.
