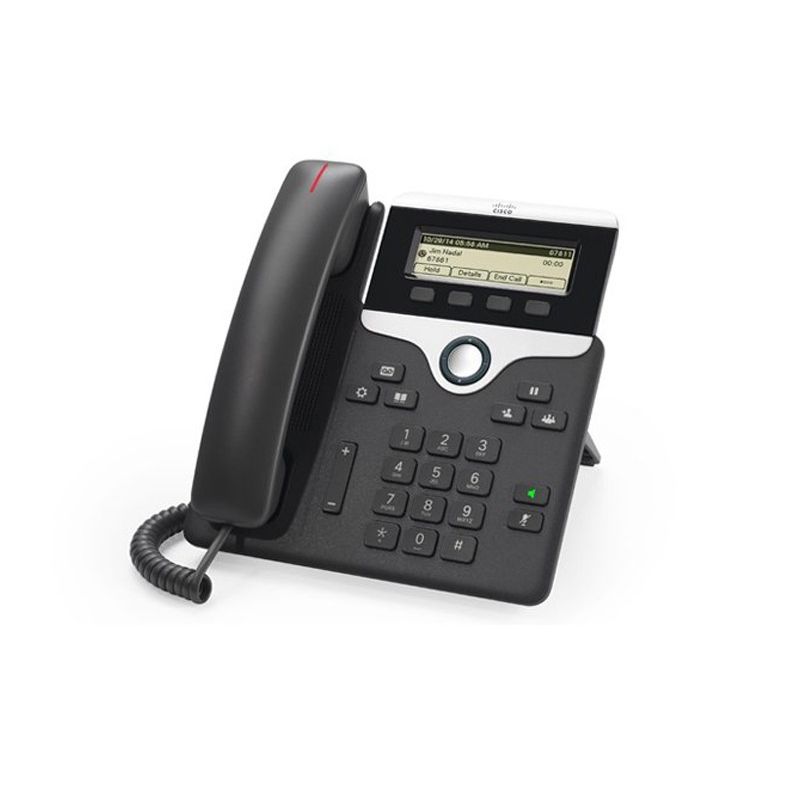

CP-7811-K9, Cisco 7800 Series IP Phone, 1 Line, G.722 Codec, PoE Support
Brand: Cisco · SKU: CP-7811-K9 · MPN: CP-7811-K9 · Category: Components
Specifications
| Model | CP-7811-K9 |
|---|---|
| Weight | 7811 kg |
| Display | 鈼?nbsp; IP Phone 7811: 3.28” 384×106 pixels |
| Cosmetic | 鈼?nbsp; Cisco cosmetic class A |
| Humidity | 鈼?nbsp; Operating 10% to 90%, non-condensing 鈼?nbsp; Non-operating 10% to 95%, non-condensing |
| Security | 鈼?nbsp; Certificates 鈼?nbsp; Image authentication 鈼?nbsp; Device authentication 鈼?nbsp; File authentication 鈼?nbsp; Signaling authentication 鈼?nbsp; Media encryption using Secure Real-Time Transfer Protocol (SRTP) using AES-128 鈼?nbsp; Signaling encryption using Transport Layer Security (TLS) Protocol using AES-128 or AES-256 鈼?nbsp; Encrypted configuration files 鈼?nbsp; 802.1X authentication 鈼?nbsp; Cryptography |
| Directories | 鈼?nbsp; The phone identifies incoming messages and categorizes them for users on the screen. This makes it fast and easy to return calls using direct dial-back capability. The corporate directory integrates with the Lightweight Directory Access Protocol (LDAP) standard directory. |
| Codec support | 鈼?nbsp; G.711a/μ, G.722, G.729a, iLBC |
| Ethernet switch | 鈼?nbsp; The phone has a 10/100BASE-T or a 10/100/1000BASE-T |
| Language support | 鈼?nbsp; Arabic (Arabic Area) 鈼?nbsp; Bulgarian (Bulgaria) 鈼?nbsp; Catalan (Spain) 鈼?nbsp; Chinese (China) 鈼?nbsp; Chinese (Hong Kong) 鈼?nbsp; Chinese (Taiwan) 鈼?nbsp; Croatian (Croatia) 鈼?nbsp; Czech (Czech Republic) 鈼?nbsp; Danish (Denmark) 鈼?nbsp; Dutch (Netherlands) 鈼?nbsp; English (United Kingdom) 鈼?nbsp; Estonian (Estonia) 鈼?nbsp; French (France) 鈼?nbsp; Finnish (Finland) 鈼?nbsp; German (Germany) 鈼?nbsp; Greek (Greece) 鈼?nbsp; Hebrew (Israel) 鈼?nbsp; Hungarian (Hungary) 鈼?nbsp; Italian (Italy) 鈼?nbsp; Japanese (Japan) 鈼?nbsp; Latvian (Latvia) 鈼?nbsp; Lithuanian (Lithuania) 鈼?nbsp; Korean (Korea Republic) 鈼?nbsp; Norwegian (Norway) 鈼?nbsp; Polish (Poland) 鈼?nbsp; Portuguese (Portugal) 鈼?nbsp; Portuguese (Brazil) 鈼?nbsp; Romanian (Romania) 鈼?nbsp; Russian (Russian Federation) 鈼?nbsp; Spanish (Columbia) 鈼?nbsp; Spanish (Spain) 鈼?nbsp; Slovak (Slovakia) 鈼?nbsp; Swedish (Sweden) 鈼?nbsp; Serbian (Republic of Serbia) 鈼?nbsp; Serbian (Republic of Montenegro) 鈼?nbsp; Slovenian (Slovenia) 鈼?nbsp; Thai (Thailand) 鈼?nbsp; Turkish (Turkey) |
| Power requirements | 鈼?nbsp; The phone is an interoperable IEEE 802.3af PoE (Class 1 device); 48 VDC is required; it can be supplied locally at the desktop using an optional AC-to-DC power supply (CP-PWR-CUBE-3=). Use of the power supply also requires the use of one of the corresponding AC country cords. |
| Multiple ring tones | 鈼?nbsp; The phone supports user-adjustable ring tones. |
| Configuration options | 鈼?nbsp; The user can configure IP address assignment statically or through the DHCP client. |
| Operational temperature | 鈼?nbsp; 32 to 104°F (0 to 40°C) |
| Phone casing composition | 鈼?nbsp; Polycarbonate acrylonitrile butadiene styrene (ABS) textured plastic. |
| Key call features support | 鈼?nbsp; + Dialing (E.164) 鈼?nbsp; Abbreviated dial 鈼?nbsp; Adjustable ringing and volume levels 鈼?nbsp; Adjustable display contrast 鈼?nbsp; Agent greeting 鈼?nbsp; Auto-answer 鈼?nbsp; Auto-detection of headset (Not available on the IP Phone 7811) 鈼?nbsp; Busy Lamp Field (BLF) (Not available on the IP Phone 7811) 鈼?nbsp; Call back 鈼?nbsp; Call forward 鈼?nbsp; Call history 鈼?nbsp; Call park 鈼?nbsp; Call Pickup 鈼?nbsp; Call timer 鈼?nbsp; Call waiting 鈼?nbsp; Caller ID 鈼?nbsp; cBarge 鈼?nbsp; Corporate directory 鈼?nbsp; Conference 鈼?nbsp; Cross Cluster Extension Mobility (EMCC) 鈼?nbsp; Dial from the list 鈼?nbsp; Direct transfer 鈼?nbsp; Do not disturb 鈼?nbsp; Extension Mobility (EM) 鈼?nbsp; Forced access codes and client matter codes 鈼?nbsp; Group call pickup 鈼?nbsp; Hold/resume 鈼?nbsp; Immediate divert 鈼?nbsp; Intercom (Not available on the IP Phone 7811) 鈼?nbsp; Join (Not available on the IP Phone 7811) 鈼?nbsp; Message-waiting indicator 鈼?nbsp; Meet me conference 鈼?nbsp; Mobility 鈼?nbsp; Music on hold 鈼?nbsp; Mute 鈼?nbsp; Network profiles (automatic) 鈼?nbsp; On- and off-network distinctive ringing 鈼?nbsp; Personal directory 鈼?nbsp; Privacy 鈼?nbsp; Private Line Automated Ringdown (PLAR) 鈼?nbsp; Redial 鈼?nbsp; Ring tone per line appearance 鈼?nbsp; Shared line 鈼?nbsp; Silent monitoring and recording 鈼?nbsp; Speed dial 鈼?nbsp; Time and date display 鈼?nbsp; Transfer 鈼?nbsp; Voicemail 鈼?nbsp; Whisper coaching |
| Signaling protocol support | 鈼?nbsp; Session Initiation Protocol (SIP) |
| Certification and compliance | 鈼?nbsp; Regulatory Compliance 鈼?nbsp; CE Markings per directives 2004/108/EC and 2006/95/EC 鈼?nbsp; Safety 鈼?nbsp; UL 60950 Second Edition 鈼?nbsp; CAN/CSA-C22.2 No. 60950 Second Edition 鈼?nbsp; EN 60950 Second Edition (including A11 & A12) 鈼?nbsp; IEC 60950 Second Edition (including A11 & A12) 鈼?nbsp; AS/NZS 60950 鈼?nbsp; GB4943 鈼?nbsp; EMC - Emissions 鈼?nbsp; 47CFR Part 15 (CFR 47) Class B 鈼?nbsp; AS/NZS CISPR22 Class B 鈼?nbsp; CISPR22: 2005w/Amendment 1: 2005 Class B 鈼?nbsp; EN55022: 2006w/Amendment 1: 2007 Class B 鈼?nbsp; ICES003 Class B 鈼?nbsp; VCCI Class B 鈼?nbsp; EN61000-3-2 鈼?nbsp; EN61000-3-3 鈼?nbsp; KN22 Class B 鈼?nbsp; EMC - Immunity 鈼?nbsp; EN55024 鈼?nbsp; CISPR24 鈼?nbsp; EN60601-1-2 鈼?nbsp; KN24 鈼?nbsp; Armadillo Light 鈼?nbsp; Telecom 鈼?nbsp; FCC Part 68 HAC 鈼?nbsp; CS-03-HAC 鈼?nbsp; AS/ACIF S004 鈼?nbsp; AS/ACIF S040 鈼?nbsp; NZ PTC 220 鈼?nbsp; Industry Standards: TIA 810 and TIA 920 鈼?nbsp; Industry Standards: IEEE 802.3 Ethernet, IEEE 802.3af and 802.3at |
| Physical dimensions (H×W×D) | 鈼?nbsp; IP Phone 7811: 207 x 195 x 33mm (exclude foot stand) |
| Nonoperational temperature shock | 鈼?nbsp; 14 to 140°F (-10 to 60°C) |
| Quality-of-service (QoS) options | 鈼?nbsp; The phone supports CDP and 802.1Q/p standards, and can be configured with an 801.1Q VLAN header containing the VLAN ID overrides configured by the Admin VLAN ID. |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this CP-7811-K9, Cisco 7800 Series IP Phone, 1 Line, G.722 Codec, PoE Support (CP-7811-K9) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This CP-7811-K9, Cisco 7800 Series IP Phone, 1 Line, G.722 Codec, PoE Support includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the CP-7811-K9, Cisco 7800 Series IP Phone, 1 Line, G.722 Codec, PoE Support compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the CP-7811-K9.
