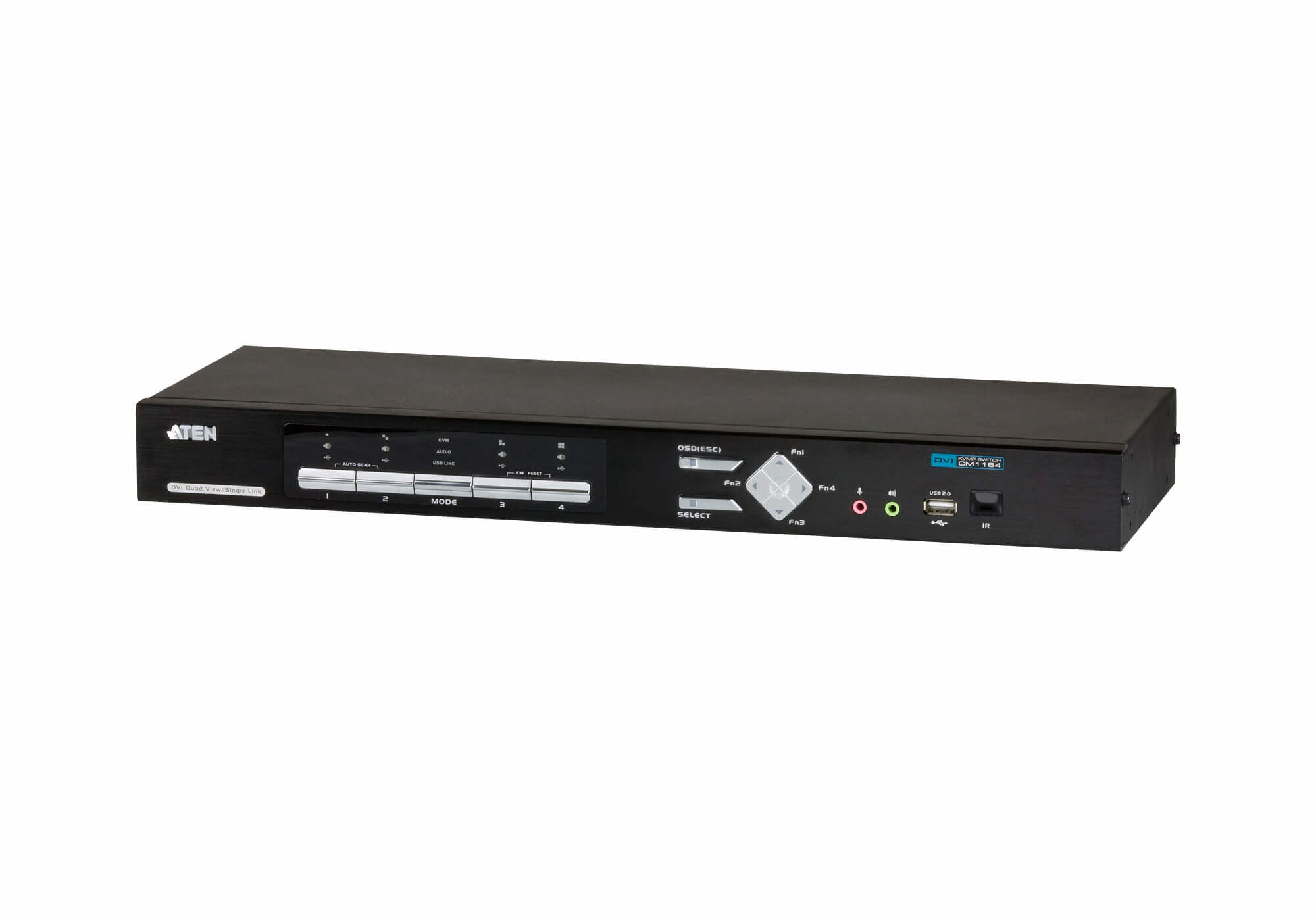

ATEN CM1164 KVM switch Black
Brand: ATEN · SKU: CM1164 · MPN: CM1164 · Category: Data Center
ATEN CM1164, 1920 x 1200 pixels, 13.6 W, Black. ATEN CM1164 KVM switch Black (part number CM1164) is an enterprise kvm switches product available from Server Tech Central. Key specifications include depth 432.4 mm, width 154.1 mm, height 44 mm, manual Yes, weight 2.5 kg, resolution 1920 x 1200 pixels, input voltage 100-240 V, led indicators Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 432.4 mm |
|---|---|
| Width | 154.1 mm |
| Height | 44 mm |
| Manual | Yes |
| Weight | 2.5 kg |
| Resolution | 1920 x 1200 pixels |
| Input voltage | 100-240 V |
| LED indicators | Yes |
| Product colour | Black |
| Mouse port type | USB |
| Video port type | DVI-D |
| Built-in display | No |
| Housing material | Metal |
| Keyboard port type | USB |
| Maximum resolution | 1920 x 1200 pixels |
| Compliance certificates | RoHS |
| Connectivity technology | Wired |
| Quick installation guide | Yes |
| Storage temperature (T-T) | -10 - 60 °C |
| Ethernet LAN (RJ-45) ports | 2 |
| Operating temperature (T-T) | 0 - 40 °C |
| Power consumption (typical) | 13.6 W |
| Number of computers controlled | 4 |
| Warranty | 3-Year Warranty |
| Weight | 2.5 kg |
| Dimensions | 154.1 mm x 432.4 mm x 44 mm |
Product Description
To improve the operational efficiency of intensive monitoring applications, there needs to be a fast and convenient way to view and manage more computers simultaneously, permitting faster response times from a single location. The CM1164 4-port USB DVI-D KVMP Control Center charts a revolutionary new direction in KVM switch functionality by combining a 4-port DVI-D switch with a 2-port USB hub, and providing the following display modes: Quad View mode, which simultaneously displays four digital computers/video sources on a single screen; as well as Picture in Picture mode(Dual, Triple or Quad) and Full Screen mode to meet the demands. In addition, CM1164 provides Daisy Chain Control (DDC) functionality. A (DCC) port allows a user to connect and control up to four CM1164 units via a single console. This enables the use of only one keyboard/mouse over several computers or another CM1164.This is convenient for growing networks that need to monitor and manage more computers – daisy chain up to four units and switch between up to 16 computers. With its unique design and innovative features, the CM1164 4-port USB DVI-D KVMP Control Center is the right solution for a wide range of practical applications, including control rooms, monitoring systems, and traffic control centers – allowing you to switch seamlessly between four DVI-enabled PCs, and share USB peripherals and audio from a multi-view console.
Key Features
ATEN CM1164. Keyboard port type: USB, Mouse port type: USB, Video port type: DVI-D. Maximum resolution: 1920 x 1200 pixels. Product colour: Black, Housing material: Metal. Input voltage: 100-240 V, Power consumption (typical): 13.6 W. Compliance certificates: RoHS
