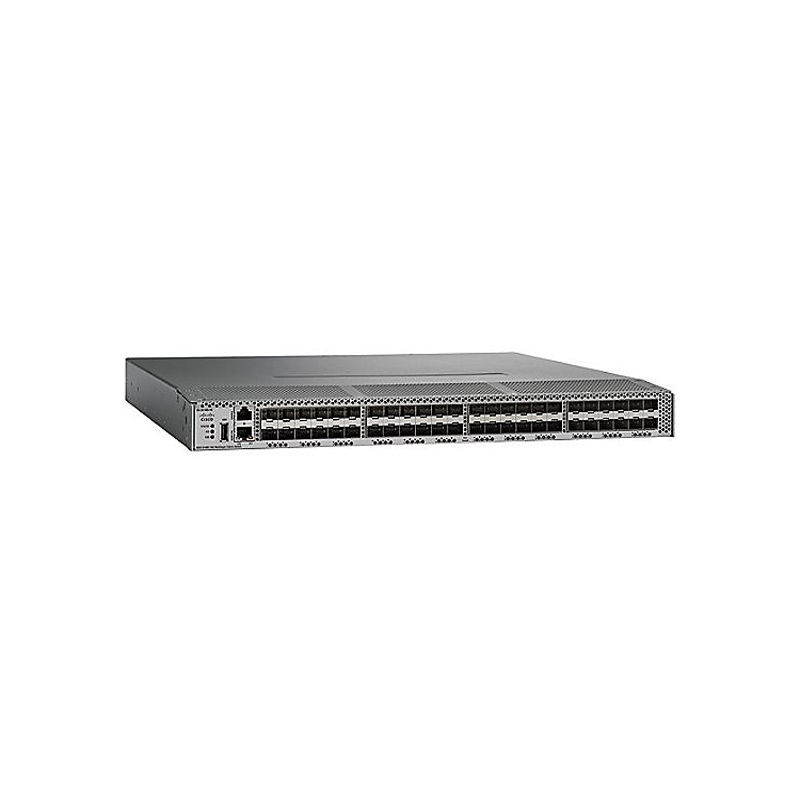

DS-C9148S-48PK9, Cisco DS-C9148S Switch, 48x16G FC/1RU/No PSU

SKU: CIS:DS-C9148S-48PK9 · MPN: CIS:DS-C9148S-48PK9 · Category: Components

DS-C9148S-48PK9, Cisco DS-C9148S Switch, 48x16G FC/1RU/No PSU
Request for Quote
In Stock • 10 units

Cisco DS-C9148S-48PK9

View Components Products

Specifications

Ports● Fixed configuration with 48 ports of 16-Gbps Fibre Channel ● Available in a 12-port configurable base or as a bundle with all 48 ports enabled ● Enable incremental ports on the 12-port base model, with the 12-port On-Demand Activation license
Power● Power supply: 300W AC (2 per switch) ● Power cord: Notched C15 socket connector connecting to C16 plug on power supply ● AC input characteristics ● 100 to 240V AC (10% range) ● 50 to 60 Hz (nominal) ● Airflow: back to front (toward ports) ● 200 linear feet per minute (LFM) through system fan assembly ● Cisco recommends maintaining a minimum air space of 2.5 in. (6.4 cm) between walls and chassis air vents and a minimum horizontal separation of 6 in. (15.2 cm) between two chassis to prevent overheating
Security● VSAN fabric isolation ● Hardware zoning by Access Control Lists (ACLs) ● Fibre Channel Security Protocol (FC-SP) switch-to-switch authentication ● FC-SP host-to-switch authentication ● Role-based access control (RBAC) using RADIUS, TACACS+, or Lightweight Directory Access Protocol (LDAP) authentication, authorization, and accounting (AAA) functions ● Secure FTP (SFTP) ● Secure Shell Protocol Version 2 (SSHv2) ● Simple Network Management Protocol Version 3 (SNMPv3) implementing Advanced Encryption Standard (AES) ● Control-plane security
Performance● Port speed: 2/4/8/16-Gbps autosensing with 16 Gbps of dedicated bandwidth per port ● Buffer credits: Up to 256 for a group of 4 ports, with a default of 64 buffer credits per port and a maximum of 253 buffer credits for a single port in the group ● PortChannel: Up to 16 physical links
Fabric services● Name server ● Registered State Change Notification (RSCN) ● Login services ● Fabric Configuration Server (FCS) ● Public loop ● Broadcast ● In-order delivery
Temperature range● Temperature, ambient operating: 32 to 104°F (0 to 40°C) ● Temperature, ambient non-operating and storage: -40 to 158°F (-40 to 70°C) ● Relative humidity, ambient (noncondensing) operating: 10 to 90% ● Relative humidity, ambient (noncondensing) non-operating and storage: 10 to 95% ● Altitude, operating: -197 to 6500 ft (-60 to 2000m)
Advanced functions● VSAN ● IVR ● PortChannel with multipath load balancing ● Flow-based and zone-based QoS
Network management● Access methods ◦ Out-of-band 10/100/1000 Ethernet port ◦ RS-232 serial console port ◦ USB ● Access protocols ◦ CLI using the console and Ethernet ports ◦ SNMPv3 using the Ethernet port and in-band IP over Fibre Channel access ◦ Storage Networking Industry Association (SNIA) Storage Management Initiative Specification (SMI-S) ● Distributed device alias service ● Network security ◦ Per-VSAN RBAC using RADIUS and TACACS+-based Authentication, Authorization, and Accounting (AAA) functions ◦ SFTP ◦ SSHv2 implementing AES ◦ SNMPv3 implementing AES ● Management applications ◦ Cisco MDS 9000 Family CLI ◦ Cisco Prime DCNM
Programming interfaces● Scriptable CLI ● Cisco Prime DCNM web services API
Approvals and compliance● Safety compliance ● CE Marking ● UL 60950 ● CAN/CSA-C22.2 No. 60950 ● EN 60950 ● IEC 60950 ● TS 001 ● AS/NZS 3260 ● IEC60825 ● EN60825 ● 21 CFR 1040 ● EMC compliance ● FCC Part 15 (CFR 47) Class A ● ICES-003 Class A ● EN 55022 Class A ● CISPR 22 Class A ● AS/NZS 3548 Class A ● VCCI Class A ● EN 55024 ● EN 50082-1 ● EN 61000-6-1 ● EN 61000-3-2 ● EN 61000-3-3
Physical dimensions (HxWxD)● Dimensions (H x W x D): 1.72 x 17.16 x 16.34 in. (4.37 x 43.59 x 41.50 cm), 1RU ● Rack-mountable in standard 19-inch Electronic Industries Alliance [EIA] rack ● Weight of fully configured chassis: 19.84 lb (9 kg)
Reliability and availability● ISSU ● Hot-swappable, dual redundant power supplies ● Hot-swappable fan tray with integrated temperature and power management ● Hot-swappable SFP+ optics ● Passive backplane ● Stateful process restart ● Any port configuration for PortChannels ● Fabric-based multipathing ● Per-VSAN fabric services ● Port tracking ● VRRP for management connections ● Online diagnostics
Warranty3-Year Warranty

Key Features

  • OEM Genuine Component verified by certified technicians.
  • Clean serial number ready for service contract registration.
  • Electrostatic Discharge (ESD) safe packaging.
  • Supports hot-swapping for zero-downtime maintenance.

Frequently Asked Questions

Is this product genuine OEM?

Yes, this DS-C9148S-48PK9, Cisco DS-C9148S Switch, 48x16G FC/1RU/No PSU (CIS:DS-C9148S-48PK9) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.

What warranty is included?

This DS-C9148S-48PK9, Cisco DS-C9148S Switch, 48x16G FC/1RU/No PSU includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.

How long does shipping take?

We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.

Can I return this product?

Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.

Is the DS-C9148S-48PK9, Cisco DS-C9148S Switch, 48x16G FC/1RU/No PSU compatible with my system?

Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the CIS:DS-C9148S-48PK9.
