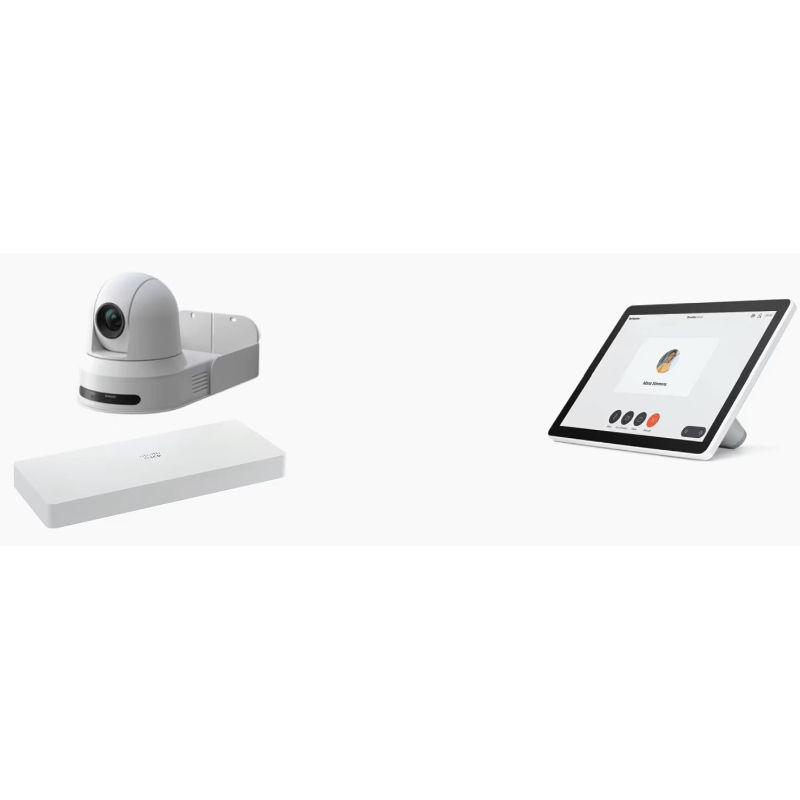

CS-KITPLPTZ4K-K9, Cisco Room Kit Plus PTZ 4K Video Conferencing System, Codec Plus/4K PTZ Camera/Touch Navigator
SKU: CIS:CS-KITPLPTZ4K-K9 · MPN: CIS:CS-KITPLPTZ4K-K9 · Category: Security
Request for Quote
In Stock • 10 units
Room Kit Plus PTZ 4K- Codec Plus, PTZ 4K Camera and Navigtor
Specifications
| Bandwidth | ● Up to 6 Mbps point to point |
|---|---|
| Protocols | ● H.323 ● SIP ● Webex ● ISDN PRI/BRI using the optional ISDN Link |
| Dimensions | ◦ Width: 6.3 in. (15.8 cm) ◦ Height (at max tilt): 7.0 in. (17.7 cm) ◦ Depth: 8.0 in. (20.0 cm) ◦ Weight: 3.75 lb (1.7 kg) |
| Dual stream | ● H.239 (H.323) dual stream ● BFCP Session Initiation Protocol (SIP) dual stream ● Support resolutions up to 3840 x 2160p5 (4Kp5),1080p30 and 720p60 |
| Audio inputs | ● Three microphones, 4-pin mini-jack ● Embedded audio on two HDMI inputs |
| Call control | ● Cisco Collaboration Cloud / Webex ● Cisco Unified Communications Manager (UCM) ◦ Native registration UCM ◦ Requires UCM Version 10.5.2 or later with device pack for Room Kit Plus ● Cisco Expressway ◦ Native registration with Expressway ● Webex ● Third-party H.323 gatekeepers and standards-based SIP proxies |
| Power supply | ● 100 to 240 VAC, 50/60 Hz, 12V DC input ● Average 20 W, peak 70 W |
| Video inputs | ● One HDMI input supports formats up to a maximum 1080p60 ● Two HDMI inputs support formats up to a maximum 4K (3840 x 2160) at 30 fps, including HD1080p60 ● Extended Display Identification Data (EDID) ● Consumer Electronics Control (CEC) 2.0 |
| Audio outputs | ● 1 line out mini-jack (stereo) (Codec Plus) ● Embedded audio on one HDMI output ● HDMI input #1 supports Audio Return Channel (ARC) |
| Video outputs | ● 2 HDMI outputs support formats up to 3840 x 2160@60 fps (4Kp60) ● Consumer Electronics Control (CEC) 2.0 |
| Audio features | ● High-quality 20-kHz audio ● Prepared for inductive loop (line out) ● Automatic Gain Control (AGC) ● Automatic noise reduction ● Active lip synchronization |
| PresenterTrack | ● Intelligent face and upper body detection and tracking allows for keeping presenters visible in the video conference ● Once the presenter appears in the “trigger zone”, the pan-tilt-zoom camera follows him/her with best overview, framing and optimal zoom level, allowing the presenter to move around within the defined stage area and remain visible for remote participants. |
| Audio standards | ● G.711, G.722, G.722.1, G.729, AAC-LD, and Opus |
| Video standards | ● H.264, H.265, and H.263 for TANDBERG ™ MXP interoperability only |
| Other interfaces | ● 1xUSB A port, USB-B, uUSB, factory reset pinhole |
| Wireless sharing | ● Webex clients (up to 3840 x 2160p5) ● Cisco Intelligent Proximity client (up to 1920 x 1080p5) |
| Encode and decode | ● Main video: Full HD 1080p60 ● Presentation channel: UHD 4K 2160p5, including 1080p30 and 720p60 |
| Locking mechanism | ● Kensington security lock |
| Security features | ● Management using HTTPS and SSH ● IP administration password ● Password to access administration features on the Cisco Webex Room Navigator controller ● Disable IP services ● Network settings protection |
| Firewall traversal | ● Cisco Expressway ™ technology ● H.460.18, H.460.19 firewall traversal |
| Embedded encryption | ● H.323 and SIP point to point ● Standards-based: H.235 v3 and Advanced Encryption Standard (AES) ● Automatic key generation and exchange |
| IP network features | ● DNS lookup for service configuration ● Differentiated Services (DiffServ) (Quality of Service [QoS]) ● IP-adaptive bandwidth management (including flow control) ● Automatic gatekeeper discovery ● Dynamic playout and lip-sync buffering ● H.245 Dual-Tone Multifrequency (DTMF) tones in H.323 ● DTMF tones in SIP, RFC 4733 ● Date and time support using Network Time Protocol (NTP) ● Uniform Resource Identifier (URI) dialing ● Dynamic Host Configuration Protocol (DHCP) ● 802.1X network authentication ● 802.1Q Virtual LAN ● 802.1p [QoS and Class of Service (CoS)] ● Cisco Media Assure and ClearPath, including packet loss-based downspeeding |
| IPv6 network support | ● Single call stack support for both H323 and SIP ● Dual-stack IPv4 and IPv6 for DHCP, SSH, HTTP, HTTPS, DNS, and DiffServ ● Support for static IP address assignment, stateless auto-configuration, and DHCP v6 |
| Certificate management | ● Certificate Authority Proxy Function (CAPF) support for additional security ● Manufacturer-Installed Certificates (MIC) ● Locally Significant Certificates (LSC) ● X.509 Digital Certificates (DER encoded binary); both DER and Base-64 formats are acceptable for the client and server certificates; certificates with a key size of 1024, 2048, and 4096 are supported |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this CS-KITPLPTZ4K-K9, Cisco Room Kit Plus PTZ 4K Video Conferencing System, Codec Plus/4K PTZ Camera/Touch Navigator (CIS:CS-KITPLPTZ4K-K9) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This CS-KITPLPTZ4K-K9, Cisco Room Kit Plus PTZ 4K Video Conferencing System, Codec Plus/4K PTZ Camera/Touch Navigator includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the CS-KITPLPTZ4K-K9, Cisco Room Kit Plus PTZ 4K Video Conferencing System, Codec Plus/4K PTZ Camera/Touch Navigator compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the CIS:CS-KITPLPTZ4K-K9.
