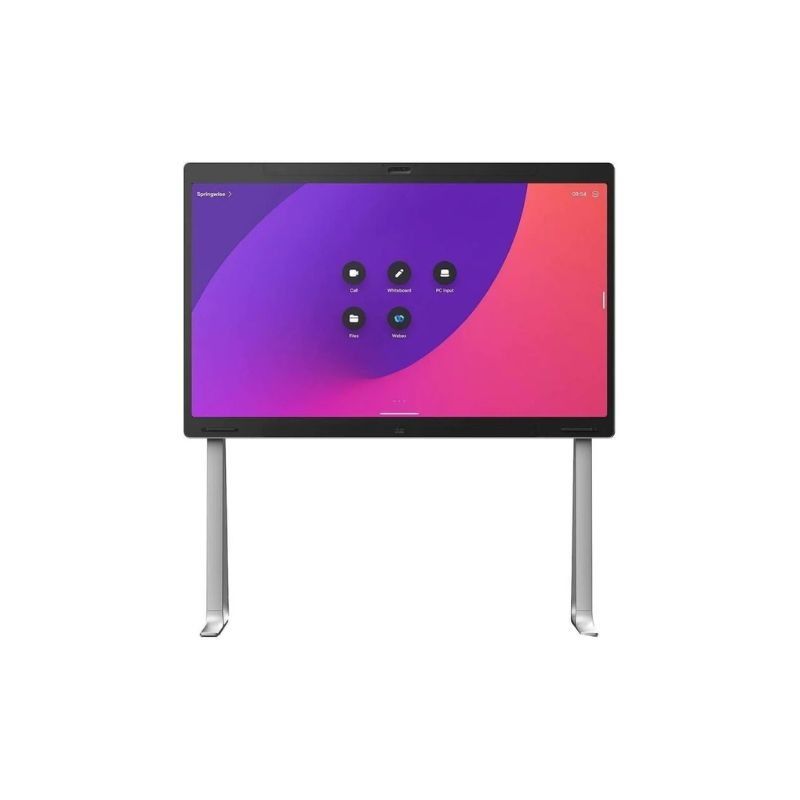

CS-BRDP75-K9, Cisco Board Pro 75 G2 Collaboration Device, 75-inch 4K Touch, Intelligent Audio, Wireless Sharing
SKU: CIS:CS-BRDP75-K9 · MPN: CIS:CS-BRDP75-K9 · Category: Components
Specifications
| Power | ● Electrical rating: ◦ Cisco Board Pro 55: 3.0-1.5 A 100-240 V 50/60 Hz, Class I ◦ Cisco Board Pro 75: 4.0-2.0 A 100-240 V 50/60 Hz, Class I ● Networked standby power: 8 W typical* ● Standby power: 1 W typical* ● Setting up Office Hours on the device allows to switch off features like signage outside of ordinary office hours, to optimize power consumption and extend screen lifetime. Outside office hours the device won’t wake up even if it detects motion in the room. |
|---|---|
| Cameras | Dual 4k, 12MP cameras: ● Automatic best view and speaker tracking ● Automatic brightness and white balance ● 5x manual zoom ● 3x digital zoom via SpeakerTrack ● Frames camera mode support for equitable participant views ● Meeting zone support Main camera: ● 85° horizontal field of view, 64° vertical field of view ● Dual f/1.7-f/2.4 aperture ● 12 MP image sensor, 30 fps ● Focus distance: 0.8m to infinity ● 1/2.3” CMOS, PDAF technology Ultra-wide camera: ● 120° horizontal field of view, 90° vertical field of view ● f/2.0 aperture ● Fixed-focus ● 12 MP image sensor, 30 fps ● 1/2.3” CMOS |
| Display | 55-inch/75-inch LCD monitor ● Resolution: 4k UHD (3840x2160) /16:9) ● Display type: IPS LCD. ● Display size in inches: 55” or 75” ● Luminance: Typ 350 cd/m2 ● Viewing angle: +/- 89 degrees (all directions) ● Number of colors: 1.07 billion (10bit) ● Contrast: 1:1000 ● Response Time: 8ms |
| Network | ● 1 x Ethernet (RJ-45) 100/1000 Mbps for LAN (external network) ● 1 x Ethernet (RJ-45) 100/1000 Mbps PoE (802.3af) port with a power budget of 15.4W enabled for Cisco Room Navigator and room peripherals, such as the Cisco PTZ 4K Camera ● Wi-Fi 802.11a/b/g/n/ac (2.4 and 5 GHz) - not available in non-radio versions Note: Due to compliance regulations, it is required to enable 802.11d in the access point for the product to operate properly within 5725 MHz – 5875 MHz. A Wi-Fi connection can be used as a flexible option. ● IPv4 Dynamic Host Configuration Protocol (DHCP)/static ● IPv6 (both static and stateless address auto-configuration) ● Network Time Protocol (NTP) ● HTTP(S) proxy support (for signaling, not media) ● Inspecting TLS proxy supported ● Cisco Discovery Protocol (CDP) ● 802.1X network authentication (passphrase or X.509 client certificate) ● 802.1Q virtual LAN ● 802.1p (Quality of Service [QoS] and Class of Service [CoS]) |
| Sensors | ● Presence detection powered by ultrasound technology embedded into the video device. Support for people count to track real-time occupancy and support space allocation ● General noise, ambient noise, and room acoustics (RT60) tracking with built-in sensors ● Environmental sensors measuring temperature, humidity, and air quality included in the Room Navigator control panel (please consult the Cisco Room Navigator datasheet for more information) |
| Bandwidth | ● Up to 20 Mbps bandwidth rate for video content ● 720p30 from 768 kbps ● 720p60 from 1152 kbps ● 1080p30 from 1472 kbps ● 1080p60 from 2560 kbps |
| Protocols | ● H.323 ● SIP ● Webex ● WebRTC |
| USB-C BYOD | Ability to provide the following over one USB-C cable to a connected computer: ● USB 2.0 type C ● Extension of display (3840x2160 @60fps) (computer must support Altmode Display Port) ● Touch forwarding capabilities on supported operating systems ● Use Cisco Board Pro camera, microphone, and speakers with any software client ● Laptop charging (60W maximum) ● Power output: 20V@3A (60W), 15V@3A (45W), 12V@3A (36W), 9V@3A (27W), 5V@3A (15W) |
| Audio inputs | ● 2 analog microphone inputs ● 1 HDMI input ● 1 USB-C ● 1 USB-A ● 1x Ethernet for audio over IP - connectivity with up to 3x Cisco Table Microphone Pro multi-directional conferencing microphones. Further microphone extension with AV integrator license*, providing support for up to 8x Cisco Microphone Pro units or up to 8x third-party digital microphone streams via AES67. Please note that connecting multiple IP microphones over Ethernet requires a PoE compatible switch, eg. CBS250, CBS350 and C1200. ● Bluetooth ® - Not available on Non Radio Version ** |
| Video inputs | ● USB-C DisplayPort Alternate Mode up to 3840 x 2160p60 (4kp60) ● HDMI 2.0 type A input supports formats up to 3840 x 2160p30 (4kp30) ● HDMI input is compatible with HDCP |
| Audio outputs | ● 1 analog line out (stereo 3.5mm minijack) ● 1 USB-C output ● 1 USB-A output ● 1x Ethernet for audio over IP & AES67 audio streams ● Bluetooth ® - Not available on Non Radio Version ** |
| Video outputs | ● HDMI 2.0 type A up to 3840 x 2160p60 (4kp60) for screen mirroring, content and live video display |
| Audio features | ● Acoustic Echo Cancellation (AEC) ● Active Lip Synchronization ● AI-Powered Noise Removal ● Automatic Gain Control (AGC) ● Beamforming Microphones ● De-Reverberation ● Full Duplex ● Full-Band Audio ● Noise Reduction ● Spatial Audio ● Ultrasound Technology ● Test microphone feature available in the RoomOS device settings allows users to record a sound sample and play it back to test speech pickup quality and noise removal settings |
| Companion mode | ● In companion mode, one Cisco Room Series device and one Board Pro work together over IP as a combined system. ● Users can initiate meetings using the Room Series device and use the Board Pro for digital whiteboarding. Shared content is shown on both devices, and the whiteboards are shared to the room device automatically in video calls. |
| Sustainability | ● Circular design principles applied for product architecture, materials, and packaging ● Reduced amount of foam, single-use plastics and non-recyclable materials in the boxes ● Contains Post-Consumer Recycled (PCR) plastic in mechanical and cosmetic parts originating from end-of-life devices and old electronics ● The video system is manufactured with more sustainable, consciously chosen materials and is designed for easy repair, refurbishing, and recycling to extend the lifecycle of the product. ● Smart energy consumption and option to enable Office Hours to optimize energy usage and extend the lifecycle of the touch screen. ● Carbon Emission Insights widget in Control Hub allows to track and optimize the carbon footprint of your deployment ● Cisco’s takeback and reuse program enables you to return your end-of-use devices for free, via a simple, secure, and sustainable process. |
| User interface | ● In-cell projected capacitive touch ● Optically bonded cover glass ● Multi-touch ● Active stylus-enabled ● Stylus-finger differentiation |
| Audio standards | ● G.711, G.722, G.722.1, G.729, AAC-LD, and Opus |
| Video standards | ● H.264 AVC, H.265 HEVC, H.263 |
| Language support | ● Arabic, Czech, Danish, German, US English, UK English, Catalonian, Spanish, Latin-American Spanish, Finnish, French, Canadian French, Hebrew, Hungarian, Italian, Japanese, Korean, Dutch, Norwegian, Polish, Brazilian Portuguese, Portuguese, Russian, Swedish, Turkish, Ukrainian, Chinese (Simplified), Traditional Chinese. |
| Speaker tracking | ● Built-in microphone array for sophisticated speaker tracking. ● Best overview functionality auto-detects people in the room and frames them for the best group view. When someone starts to talk, the system uses audio triangulation to detect the active speaker and selects the best framing to show an optimized, prominent view of the speaker ● For an optimal speaker tracking experience for people joining remotely, it is recommended that the furthest in-room participant is located within less than 6 meters from the video device. Note that the best overview (automatic group framing) camera mode supports an extended distance from Board Pro. |
| Wireless sharing | ● Webex app (up to 3840 x 2160 at 7.5 fps) ● Cisco Intelligent Proximity client (up to 1920 x 1080 at 3 fps) ● Miracast (up to 1920 x 1080 at 60 fps) – Not available on Non radio version – requires Board Pro to be on Ethernet network connection ● Apple AirPlay: ◦ Bluetooth® discovery (not on non-radio version) and Bonjour service discovery ◦ Screen mirroring up to 1920 x 1080 at 60 fps ◦ Extended desktop (Mac only) - up to 1920 x 1080 at 60 fps ◦ Video streaming up to 3840 x 2160 at 30 fps |
| Encode and decode | ● Video stream: Full HD 1080p30 ● Content stream: 4k 2160p15 ● Up to 4k content decode from Webex |
| Security features | ● Secure management using HTTPS and SSH protocols ● End-to-end encryption for calls and meetings on Webex ● Standards-based media encryption on all back-ends (Secure Real-time Transport Protocol [SRTP], using AES-128-GCM or AES-256-GCM) ● WPA3 TM and WPA3-Enterprise with CCMP128 Wi-Fi ® security ● Password protection to access administration available on Room Navigator controller ● Network settings protection |
| System management | ● For cloud deployments, the device is managed in the Control Hub, providing a single pane of glass of system status, activation, configuration, metrics, workspace insights, and troubleshooting. ● For on-premises deployments, management via Cisco Unified Communications Manager or Expressway supported ◦ Registration on Cisco Unified Communications Manager (CUCM) requires CUCM version 12.5(1) or later ◦ Native registration with Cisco Expressway (from version 10.5.2 or later with device pack) ◦ Webex ◦ Third-party H.323 Gatekeepers and standards-based SIP proxies. |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this CS-BRDP75-K9, Cisco Board Pro 75 G2 Collaboration Device, 75-inch 4K Touch, Intelligent Audio, Wireless Sharing (CIS:CS-BRDP75-K9) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This CS-BRDP75-K9, Cisco Board Pro 75 G2 Collaboration Device, 75-inch 4K Touch, Intelligent Audio, Wireless Sharing includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the CS-BRDP75-K9, Cisco Board Pro 75 G2 Collaboration Device, 75-inch 4K Touch, Intelligent Audio, Wireless Sharing compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the CIS:CS-BRDP75-K9.
