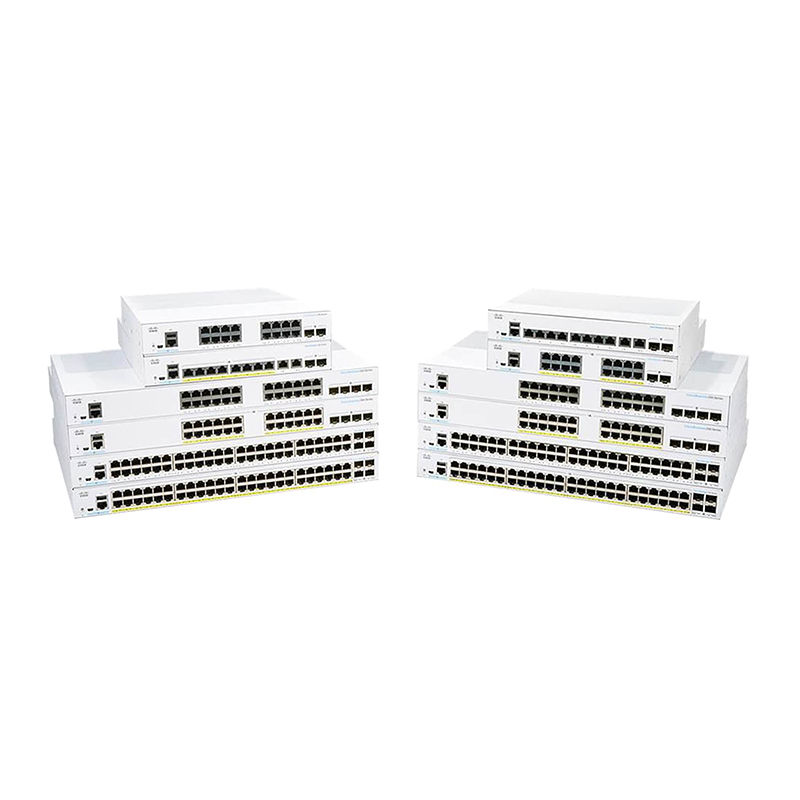

CBS350-8S-E-2G, Cisco CBS350 Switch, 8xSFP/2xCombo/1U

SKU: CIS:CBS350-8S-E-2G · MPN: CIS:CBS350-8S-E-2G · Category: Networking

CBS350-8S-E-2G, Cisco CBS350 Switch, 8xSFP/2xCombo/1U
Request for Quote
In Stock • 10 units

8 Gigabit SFP, 2 Gigabit copper/SFP combo ports, Rack-mountable

View Transceivers & Optics Products

Specifications

CPU800 MHz ARM
DRAM512 MB
VLANSupport for up to 4,094 VLANs simultaneously Port-based and 802.1Q tag-based VLANs; MAC-based VLAN; protocol-based VLAN; IP subnet-based VLAN Management VLAN Private VLAN with promiscuous, isolated, and community port Private VLAN Edge (PVE), also known as protected ports, with multiple uplinks Guest VLAN, unauthenticated VLAN Dynamic VLAN assignment via RADIUS server along with 802.1x client authentication CPE VLAN
Flash256 MB
Unit Weight5.43 kg (11.97 lb)
IPv4 routingWirespeed routing of IPv4 packets Up to 990 static routes and up to 128 IP interfaces
IPv6 routingWirespeed routing of IPv6 packets
Packet Buffer3 MB
Unit Dimensions445 x 350 x 44 mm (17.5 x 13.78 x 1.73 in)
Hardware stackingUp to 4 units in a stack. Up to 200 ports managed as a single system with hardware failover Stacking is supported on the following models CBS350-24T-4X, CBS350-24P-4X, CBS350-24FP-4X, CBS350-48T-4X, CBS350-48P-4X, CBS350-48FP-4X CBS350-8MP-2X, CBS350-24MGP-4X, CBS350-12NP-4X, CBS350-24NGP-4X, CBS350-48NGP-4X CBS350-8XT, CBS350-12XS, CBS350-12XT, CBS350-16XTS, CBS350-24XS, CBS350-24XT, CBS350-24XTS, CBS350-48XT-4X
Spanning Tree ProtocolStandard 802.1d Spanning Tree support Fast convergence using 802.1w (Rapid Spanning Tree [RSTP]), enabled by default Multiple Spanning Tree instances using 802.1s (MSTP); 8 instances are supported Per-VLAN Spanning Tree Plus (PVST+) and Rapid PVST+ (RPVST+); 126 instances are supported
System Power Consumption110V=61.53W 220V=60.73W
Heat Dissipation (BTU/hr)1,610.19
Power Consumption (with PoE)110V=471.90W 220V=463.32W
Port grouping/link aggregationSupport for IEEE 802.3ad Link Aggregation Control Protocol (LACP) ● Up to 8 groups ● Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregation
Switching Capacity in Gigabits per Second (Gbps)176.0
Capacity in Millions of Packets per Second (mpps) (64-byte packets)130.94
Warranty3-Year Warranty

Key Features

  • OEM Genuine Component verified by certified technicians.
  • Clean serial number ready for service contract registration.
  • Electrostatic Discharge (ESD) safe packaging.
  • Supports hot-swapping for zero-downtime maintenance.
