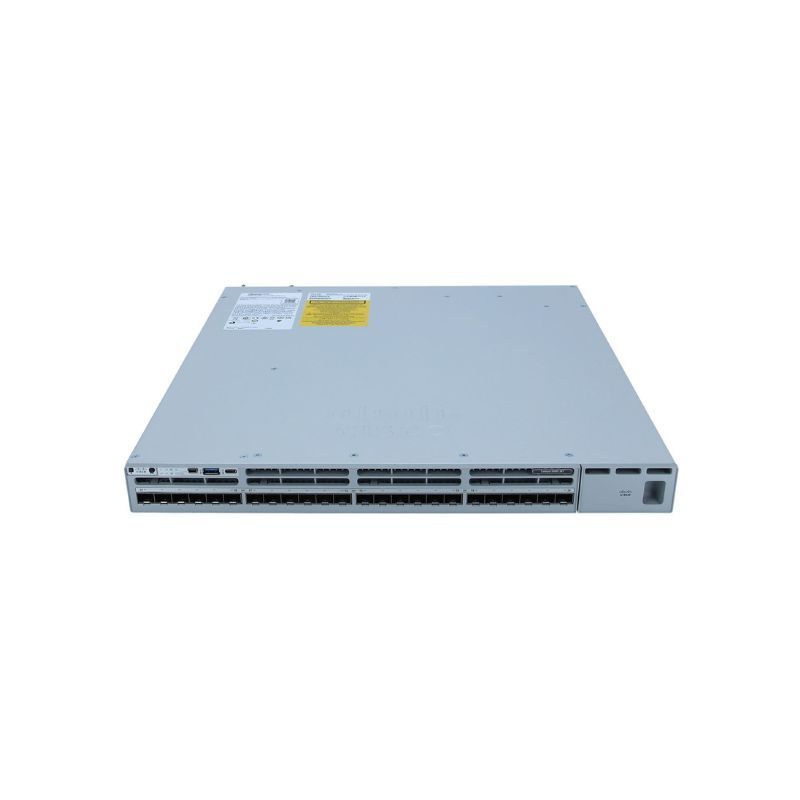

C9300X-24Y-A, Cisco Catalyst 9300X Switch, 24xSFP28/25G, Modular Uplink, Network Advantage
Brand: Cisco · SKU: CIS:C9300X-24Y-A · MPN: CIS:C9300X-24Y-A · Category: Networking
Catalyst 9300 24-port 25G/10G/1G SFP28 with modular uplinks, Network Advantage
Specifications
| RAM | 16 GB |
|---|---|
| Model | C9300X-24Y-A |
| Notes | The main differences found were in MTBF hours (6.1% variance) and optional power supply information. The corrected specification combines both sources with noted discrepancies. |
| Ports | 24 x 1/10/25G SFP28 |
| Subtype | 25 Gigabit Ethernet |
| VLAN IDs | 4094 |
| Interfaces | 24 x 1/10/25GBase-X SFP28, 1 x USB 2.0 |
| Device Type | Switch - 24 ports - L3 - managed - stackable |
| Performance | Switching capacity: 2000 Gbps; With stacking: 3000 Gbps; Forwarding rate: 1488 Mpps; With stacking: 2232 Mpps |
| Flash Memory | 16 GB |
| Key Features | DHCP, trunking, Syslog, full duplex, Stateful switchover (SSO), CBWFQ, WRED, STP, ACL, QoS, NSR, RSPAN, MIB, Cisco StackWise-480, Cisco StackPower, Flexible NetFlow, MSDP, 802.1x, 16MB packet buffer, FTP client, MACsec, 3 fans, CoPP, VXLAN, AVC, SSM, integrated Wireshark, VLAN Q-in-Q, EoMPLS, H-VPLS, private VLAN, L3VPN, ERSPAN, SGT caching, SGACL, ITSM and IPAM integration, Cisco StackWise-1T |
| MTBF (hours) | 265,650 |
| Power Device | Internal power supply |
| Enclosure Type | Rack-mountable 1U |
| PVST Instances | 1,000 |
| Power Provided | 715 W |
| Expansion Slots | 1 total / 1 free |
| Jumbo Frame Size | 9198 bytes |
| Storage Humidity | 5% - 90% (non-condensing) |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| ACL Scale Entries | 5,000 |
| QoS Scale Entries | 4,000 |
| Routing Protocols | OSPF, IS-IS, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, PBR, RIPng |
| Status Indicators | Status |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this C9300X-24Y-A, Cisco Catalyst 9300X Switch, 24xSFP28/25G, Modular Uplink, Network Advantage (CIS:C9300X-24Y-A) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This C9300X-24Y-A, Cisco Catalyst 9300X Switch, 24xSFP28/25G, Modular Uplink, Network Advantage includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the C9300X-24Y-A, Cisco Catalyst 9300X Switch, 24xSFP28/25G, Modular Uplink, Network Advantage compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the CIS:C9300X-24Y-A.
