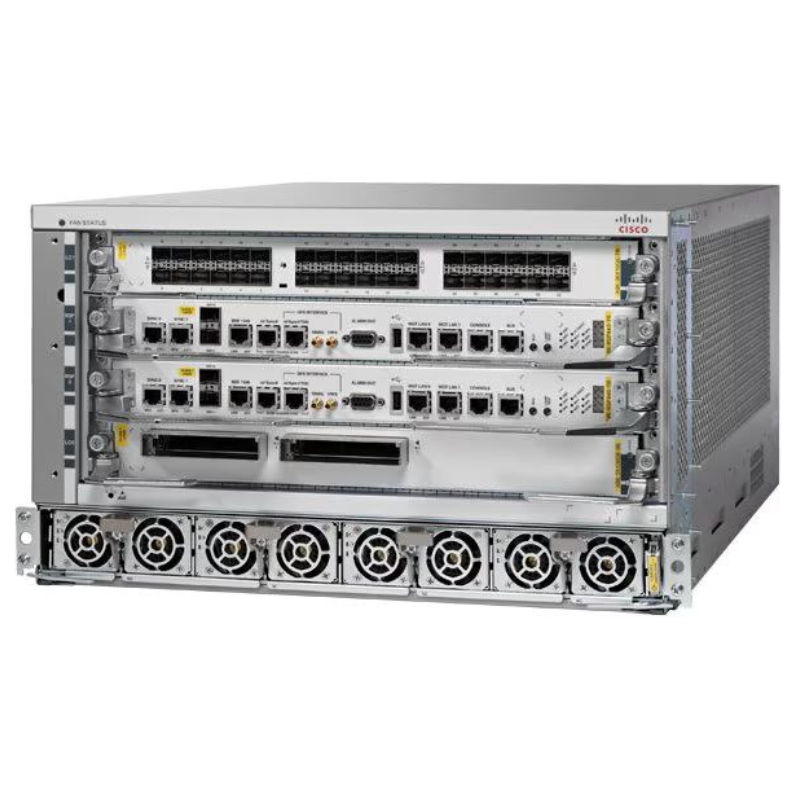

ASR-9904-AC, Cisco ASR 9900 Router, 2 Line Card Slot, AC Power, Modular Design
SKU: CIS:ASR-9904-AC · MPN: CIS:ASR-9904-AC · Category: Networking
Specifications
| Fabric | One per RSP: ● Active/active nonblocking operation mode in dual-RSP redundant configuration ● Fully redundant in dual-RSP redundant configuration ● Built-in service-intelligence and traffic-prioritization capability |
|---|---|
| Safety | The Cisco ASR 9904 Router is designed to meet: ● UL/CSA/IEC/EN 60950-1 ● IEC/EN 60825 Laser Safety ● ACA TS001 ● AS/NZS 60950 ● FDA Code of Federal Regulations Laser Safety |
| Airflow | Right-to-left, front-to-back with baffle |
| Thermal | One fan tray: ● 12 high-efficiency fans per tray ● Variable-speed fans for optimal thermal performance |
| Modularity | Pay-as-you-grow power for future scalability, available in AC and DC. Multiple power module types: ● 3 kW AC power module ● 2.1 kW DC power module Note: Mixing of AC and DC modules is not supported |
| Redundancy | ● AC: N+N redundancy ● DC: N+1 redundancy ● Power module redundancy ● A/B Feed redundancy |
| Power input | Worldwide ranging AC (200-240V; 50-60 Hz; 16A maximum) Worldwide ranging DC (-40 to -72V; 50A nominal, 60A maximum) |
| Power zones | No power zone restrictions Fully load-sharing power infrastructure |
| Rack mounting | 19-in. 21- and 23-in. adapters available Note: Minimum 17.75-in. opening between posts is needed for proper operation. |
| Wall mounting | No |
| ETSI standards | The Cisco ASR 9904 Router is designed to meet (qualification in progress): ● EN300 386: Telecommunications Network Equipment (EMC) ● ETSI 300 019 Storage Class 1.1 ● ETSI 300 019 Transportation Class 2.3 ● ETSI 300 019 Stationary Use Class 3.1 |
| Cabinet mounting | Yes |
| Slot orientation | Horizontal |
| Operating altitude | -60 to 4000m (up to 2000m conforms to IEC/EN/UL/CSA 60950 requirements) |
| Storage temperature | -40 to 158°F (-40 to 70°C) |
| Power module airflow | Front-to-back |
| EMC standards emission | The Cisco ASR 9904 Router is designed to meet: ● FCC Class 47CFR15 A ● ICES 003 Class A ● AS/NZS CISRP22 Class A ● CISPR 22 (EN55022) Class A ● VCCI Class A ● BSMI Class A ● IEC/EN 61000-3-12: Power Line Harmonics ● IEC/EN 61000-3-11: Voltage Fluctuations and Flicker ● EN55022: Information Technology Equipment (Emissions) ● EN 50121-4: Railway EMC |
| EMC standards immunity | The Cisco ASR 9904 Router is designed to meet: ● IEC/EN-61000-4-2: Electrostatic Discharge Immunity (8kV Contact, 15kV Air) ● IEC/EN-61000-4-3: Radiated Immunity (10V/m) ● IEC/EN-61000-4-4: Electrical Fast Transient Immunity (2kV Power, 1kV Signal) ● IEC/EN-61000-4-5: Surge AC Port (4kV CM, 2kV DM) ● IEC/EN-61000-4-5: Signal Surge Ports (1kV) ● IEC/EN-61000-4-5: Surge DC Port (1kV CM, 1kV DM) ● IEC/EN-61000-4-6: Immunity to Conducted Disturbances (10Vrms) ● IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity (30A/m) ● IEC/EN-61000-4-11: Voltage DIPS, Short Interruptions, and Voltage Variations ● EN55024: Information Technology Equipment (Immunity) ● EN50082-1/EN-61000-6-1: Generic Immunity Standard ● EN 50121-4: Railway EMC |
| Physical specifications | Height: 10.38 in. (263.65x mm) (6 RU) Width: 17.57 in. (446.28 mm) Depth: 25.02 in. (635.51 mm) Weight: ● 62 lb (28.2 kg) (V2 PEM AND chassis) ● 114.05 lb (51.84 kg) (2 RSP, Fan Tray, PEM) |
| Cisco ASR 9000 Series RSP | Dual redundant RSPs with integrated fabric in 2 slots |
| Storage (relative humidity) | 5 to 93% |
| Reliability and availability | Fabric redundancy Feed redundancy Power-supply redundancy Route processor redundancy Software redundancy |
| Operating temperature (nominal) | 41 to 104°F (5 to 40°C) |
| “Commons” components | 2 RSPs 1 fan tray 1 PEM (either DC or AC) 1 fan filter |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASR-9904-AC, Cisco ASR 9900 Router, 2 Line Card Slot, AC Power, Modular Design (CIS:ASR-9904-AC) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASR-9904-AC, Cisco ASR 9900 Router, 2 Line Card Slot, AC Power, Modular Design includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASR-9904-AC, Cisco ASR 9900 Router, 2 Line Card Slot, AC Power, Modular Design compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the CIS:ASR-9904-AC.
