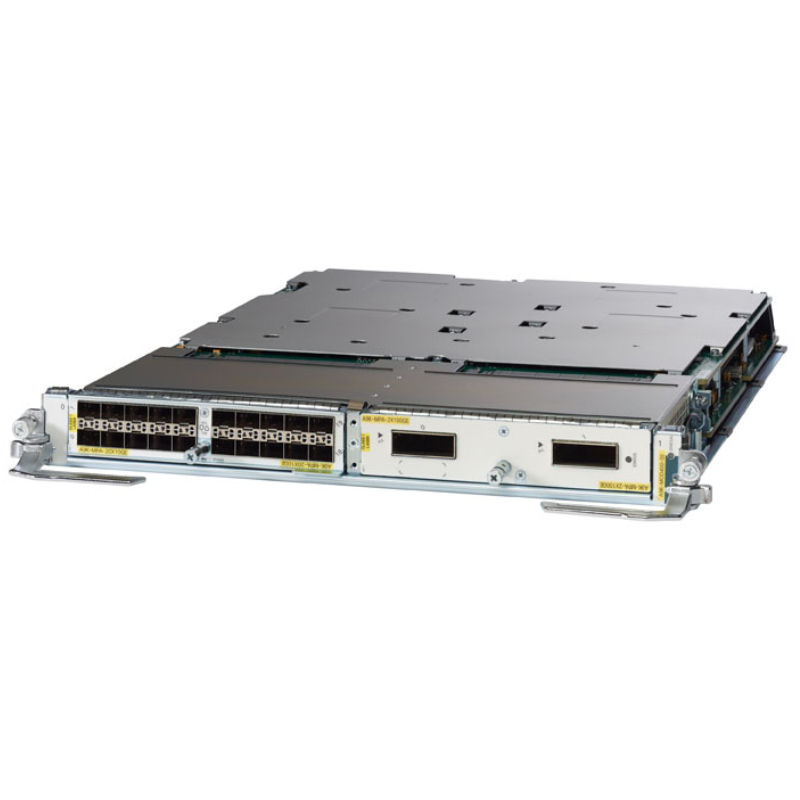

A9K-MOD400-TR, Cisco ASR 9000 Linecard, 400G throughput, modular design, packet transport

SKU: CIS:A9K-MOD400-TR · MPN: CIS:A9K-MOD400-TR · Category: Components

A9K-MOD400-TR, Cisco ASR 9000 Linecard, 400G throughput, modular design, packet transport
Request for Quote
In Stock • 10 units

400G Modular Linecard, Packet Transport Optimized

View Components Products

Specifications

SafetyCisco ASR 9000 Series Routers are designed to meet: ● UL/CSA/IEC/EN 60950-1 ● IEC/EN 60825 Laser Safety ● ACA TS001 ● AS/NZS 60950 ● FDA: Code of Federal Regulations Laser Safety
OptionsEach line card is available as either a service edge - optimized line card (enhanced QoS) or a packet transport - optimized line card (basic QoS)
Ethernet● IEEE 802.3 compliant ● 10 Gigabit Ethernet PHY monitoring ● IEEE 802.x flow control ● Full-duplex operation ● Per-port byte and packet counters for policy drops, oversubscription drops, Cyclic Redundancy Check (CRC) error drops, packet sizes, and unicast, multicast, and broadcast packets
ImmunityCisco ASR 9000 Series Routers are designed to meet: ● IEC/EN-61000-4-2: Electrostatic Discharge Immunity (8kV Contact, 15kV Air) ● IEC/EN-61000-4-3: Radiated Immunity (10V/m) ● IEC/EN-61000-4-4: Electrical Fast Transient Immunity (2kV Power, 1kV Signal) ● IEC/EN-61000-4-5: Surge AC Port (4kV CM, 2kV DM) ● IEC/EN-61000-4-5: Signal Ports (1kV) ● IEC/EN-61000-4-5: Surge DC Port (1kV) ● IEC/EN-61000-4-6: Immunity to Conducted Disturbances (10Vrms) ● IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity (30A/m) ● IEC/EN-61000-4-11: Voltage DIPS, Short Interruptions, and Voltage Variations
Card densityMaximum number of line cards per system: ● Cisco ASR 9922: 20 ● Cisco ASR 9912: 10 ● Cisco ASR 9910: 8 ● Cisco ASR 9906: 4 ● Cisco ASR 9904: 2 ● Cisco ASR 9010: 8 ● Cisco ASR 9006: 4
Port densityIn the 400G modular line card, up to 2 modular port adapters are supported per line card for up to: ● 40-port 10G or 64-port 1G interfaces ● 4-port 40G interfaces ● 4-port 100G interfaces In the 200G modular line card, two modular port adapters are supported per line card, except for the 2-port 100 Gigabit modular port adapter and the 20-port 10 Gigabit modular port adapter. The 2-port 100 Gigabit and 20-port 10 Gigabit modular adapters are supported only in bay 0 of the 200G modular line card. The achievable port density on this line card is as follows: ● 20-port 10G or 64-port 1G interfaces ● 4-port 40G interfaces ● 2-port 100G interfaces
EMC standardsCisco ASR 9000 Series Routers are designed to meet: ● FCC Class A ● ICES 003 Class A ● AS/NZS 3548 Class A ● CISPR 22 (EN55022) Class A ● VCCI Class A ● BSMI Class A ● IEC/EN 61000-3-2: Power Line Harmonics ● IEC/EN 61000-3-3: Voltage Fluctuations and Flicker
ETSI standardsCisco ASR 9000 Series Routers are designed to meet: ● EN300 386: Telecommunications Network Equipment (EMC) ● ETSI 300 019 Storage Class 1.1 ● ETSI 300 019 Transportation Class 2.3 ● ETSI 300 019 Stationary Use Class 3.1 ● EN55022: Information Technology Equipment (Emissions) ● EN55024: Information Technology Equipment (Immunity) ● EN50082-1/EN-61000-6-1: Generic Immunity Standard
Operating altitude-60 to 4000m (up to 2000m conforms to IEC, EN, UL, and CSA 60950 requirements)
Storage temperature-40 to 158°F (-40 to 70°C)
Chassis compatibilityCompatible with the Cisco ASR 9922, 9912, 9910, 9906, 9904, 9010, and 9006 routers
Storage relative humidity5 to 95% Note: Not to exceed 0.024 kg of water per kg of dry air
Reliability and availabilityLine card Online Insertion and Removal (OIR) support without system impact
Operating temperature (nominal)41 to 104°F (5 to 40°C)
Operating temperature (short-term)23 to 131°F (-5 to 55°C)
Network Equipment Building Standards (NEBS)Cisco ASR 9000 Series Routers are designed to meet: ● SR-3580: NEBS Criteria Levels (Level 3) ● GR-1089-CORE: NEBS EMC and Safety ● GR-63-CORE: NEBS Physical Protection
Operating humidity (nominal) relative humidity10 to 85%
Warranty3-Year Warranty

Key Features

  • OEM Genuine Component verified by certified technicians.
  • Clean serial number ready for service contract registration.
  • Electrostatic Discharge (ESD) safe packaging.
  • Supports hot-swapping for zero-downtime maintenance.

Frequently Asked Questions

Is this product genuine OEM?

Yes, this A9K-MOD400-TR, Cisco ASR 9000 Linecard, 400G throughput, modular design, packet transport (CIS:A9K-MOD400-TR) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.

What warranty is included?

This A9K-MOD400-TR, Cisco ASR 9000 Linecard, 400G throughput, modular design, packet transport includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.

How long does shipping take?

We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.

Can I return this product?

Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.

Is the A9K-MOD400-TR, Cisco ASR 9000 Linecard, 400G throughput, modular design, packet transport compatible with my system?

Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the CIS:A9K-MOD400-TR.
