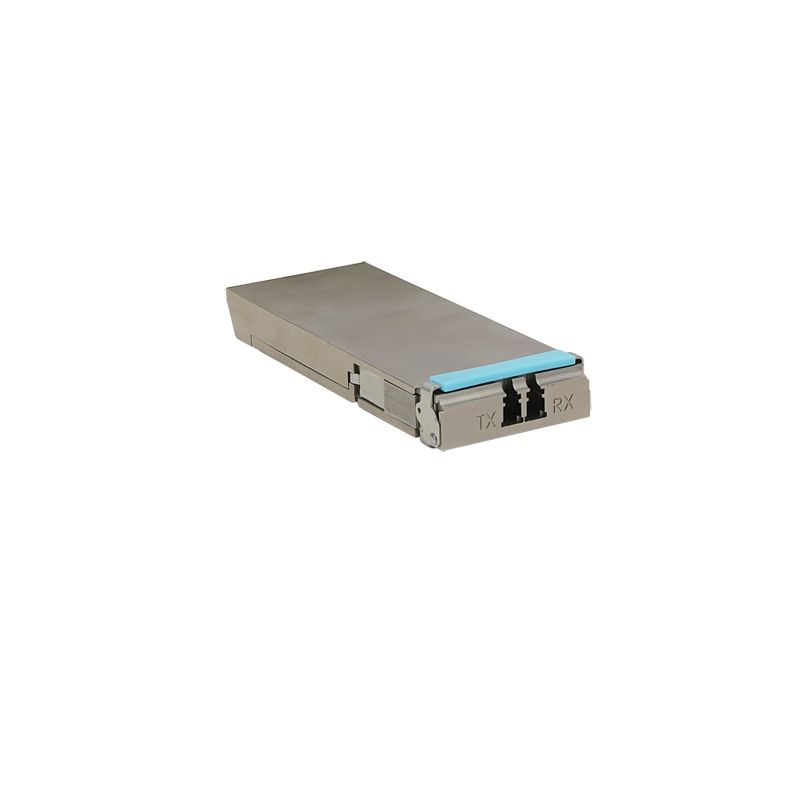

100GBASE-LR4 CFP2 Optical Transceiver Module
Brand: FS.com · SKU: CFP2-100G-LR4 · MPN: CFP2-LR4-100G · Category: Networking
The 100GBASE-LR4 CFP2 optical transceiver module is designed for 100 Gigabit Ethernet links over 10km of single-mode fiber (SMF). It is compliant with the CFP MSA CFP2 Hardware Specification and IEEE 802.3ba 100GBASE-LR4 standards. The module converts 4 input channels of 25Gb/s electrical data to 4 channels of LAN WDM optical signals and then multiplexes them into a single channel for 100Gb/s optical transmission. It features a duplex LC connector, built-in digital diagnostic monitoring (DOM), and supports an aggregated data rate of 103.125 Gbps to 111.81 Gbps. Ideal for data center interconnects, enterprise core aggregation, and service provider transport applications.
Specifications
| Media | Single-Mode Fiber (SMF) |
|---|---|
| Connector | LC Duplex |
| Wavelength | 1310nm (LAN-WDM) |
| DOM Support | Yes |
| Form Factor | CFP2 |
| Max Distance | 10km |
| Max Data Rate | 103.125Gbps - 111.81Gbps |
| Receiver Type | PIN |
| Transmitter Type | 4x EML Laser |
| Power Consumption | <9W |
| Warranty | 3-Year Warranty |
| Weight | 0.12 kg |
| Dimensions | 107.5 x 42.5 x 13.4 mm |
Key Features
High-performance hot-pluggable CFP2 module optimized for 100G Ethernet and OTU4 networks with a 10km reach over standard single-mode fiber.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this 100GBASE-LR4 CFP2 Optical Transceiver Module (CFP2-100G-LR4) is 100% genuine FS.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This 100GBASE-LR4 CFP2 Optical Transceiver Module includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the 100GBASE-LR4 CFP2 Optical Transceiver Module compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the CFP2-100G-LR4.
