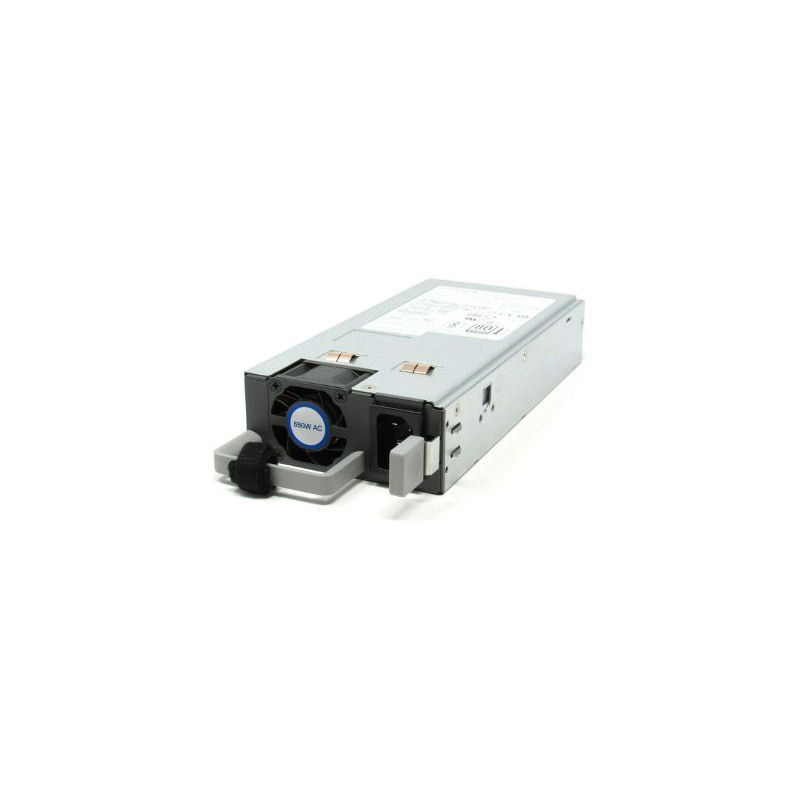

C9K-PWR-650WAC-R, Cisco Catalyst 9000 Power Supply, 650W AC/Rear to Front/Cooling
SKU: C9K-PWR-650WAC-R · MPN: C9K-PWR-650WAC-R · Category: Components
Specifications
| MTBF | 200,000 hours |
|---|---|
| Cooling | Active (Integrated Fan) |
| Humidity | 10% to 90% (non-condensing) |
| Efficiency | 85% (typical) |
| Form Factor | RSP1 |
| Noise Level | 46 dBA |
| Product Type | Power Supply |
| Compatibility | Cisco Catalyst 9500 Series Switches |
| Input Current | 8A (RMS) at 100-120V, 4A (RMS) at 200-240V |
| Input Voltage | 100-240V AC |
| Connector Type | IEC 60320 C14 |
| AC input voltage | Nominal range: 100 and 240 VAC (Range: 90-132 VAC, 180-264 VAC) |
| Safety Standards | UL/CSA 60950-1, EN60950-1 |
| Efficiency rating | Climate Savers Platinum Efficiency (80Plus Platinum certified) |
| AC input frequency | Nominal range: 50 to 60 Hz (Range: 47-63 Hz) |
| Protection Features | Over Voltage, Over Current, Over Temperature |
| Storage Temperature | -40° to 70°C |
| Maximum hold-up time | 12 ms at 650 W |
| Operating Temperature | 0° to 45°C |
| Dimensions (H x W x D) | 1.6 x 3.2 x 15.8 inches |
| Maximum in-rush current | 11 A (sub-cycle duration) |
| Maximum AC input current | 7.6 A at 90 - 132 VAC, 3.65 A at 180 - 264 VAC |
| Total Harmonic Distortion | < 10% |
| Maximum input volt Amperes | 760 VA at 100 VAC |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this C9K-PWR-650WAC-R, Cisco Catalyst 9000 Power Supply, 650W AC/Rear to Front/Cooling (C9K-PWR-650WAC-R) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This C9K-PWR-650WAC-R, Cisco Catalyst 9000 Power Supply, 650W AC/Rear to Front/Cooling includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the C9K-PWR-650WAC-R, Cisco Catalyst 9000 Power Supply, 650W AC/Rear to Front/Cooling compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the C9K-PWR-650WAC-R.
