C9800-40-K9, Cisco Catalyst 9800-40 Wireless Controller, 40Gbps throughput/2000 APs/RAID 1
Brand: Cisco · SKU: C9800-40-K9 · MPN: C9800-40-K9 · Category: Components
Request for Quote
In Stock • 10 units

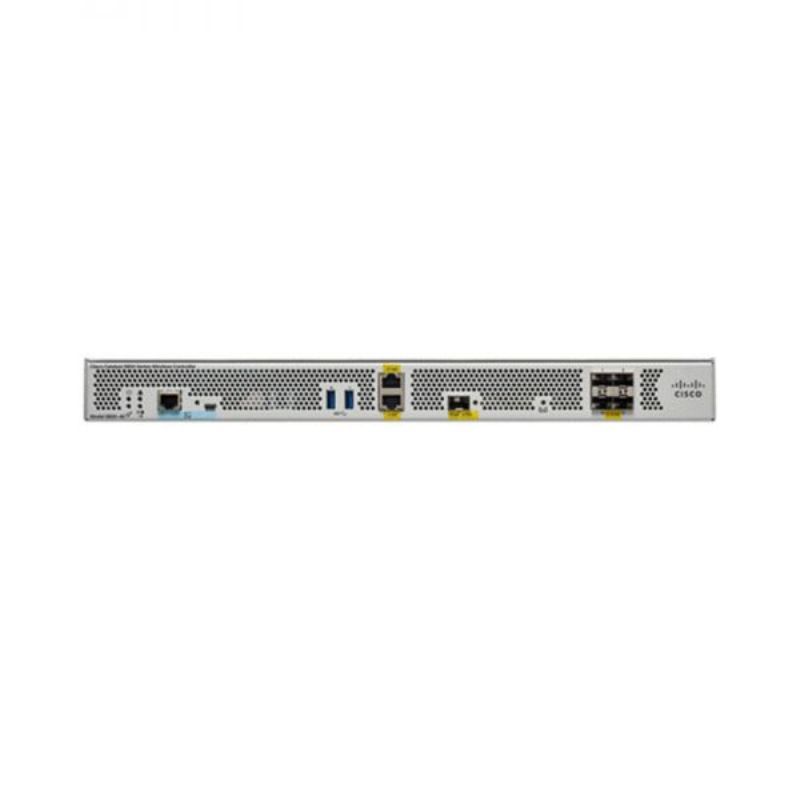

Cisco Catalyst 9800-40 Wireless Controller
Specifications
| Model | C9800-40-K9 |
|---|---|
| Max RF Tags | Web-based: HTTP/HTTPS, CLI: Telnet, SSH, serial port, SNMP, NETCONF |
| AAA Standards | IEEE 802.1X, RFC 2548 (Microsoft VSA), RFC 2716 (PPP EAP-TLS), RFC 2865 (RADIUS Authentication), RFC 2866 (RADIUS Accounting), RFC 2867 (RADIUS Tunnel Accounting), RFC 2869 (RADIUS Extensions), RFC 3576 (Dynamic Authorization Extensions), RFC 5176 (Dynamic Authorization Extensions), RFC 3579 (RADIUS Support for EAP), RFC 3580 (IEEE 802.1X RADIUS Guidelines), RFC 3748 (EAP), Web-based authentication, TACACS support for management users |
| Data Standards | RFC 768 (UDP), RFC 791 (IP), RFC 2460 (IPv6), RFC 792 (ICMP), RFC 793 (TCP), RFC 826 (ARP), RFC 1122 (Requirements for Internet Hosts), RFC 1519 (CIDR), RFC 1542 (BOOTP), RFC 2131 (DHCP), RFC 5415 (CAPWAP), RFC 5416 (CAPWAP Binding for 802.11) |
| Maximum Throughput | Up to 40 Gbps |
| Security Standards | Wi-Fi Protected Access (WPA), IEEE 802.11i (WPA2, RSN), Wi-Fi Protected Access 3 (WPA3), RFC 1321 (MD5), RFC 1851 (ESP 3DES), RFC 2104 (HMAC), RFC 2246 (TLS 1.0), RFC 2401 (Security Architecture for the Internet Protocol), RFC 2403 (HMAC-MD5-96), RFC 2404 (HMAC-SHA-1-96), RFC 2405 (ESP DES-CBC), RFC 2407 (ISAKMP Interpretation), RFC 2408 (ISAKMP), RFC 2409 (IKE), RFC 2451 (ESP CBC-Mode), RFC 3280 (X.509 PKI), RFC 4347 (DTLS), RFC 5246 (TLS 1.2) |
| Wireless Standards | IEEE 802.11a, 802.11b, 802.11g, 802.11d, WMM/802.11e, 802.11h, 802.11n, 802.11k, 802.11r, 802.11u, 802.11w, 802.11ac Wave1 and Wave2, 802.11ax |
| Encryption Standards | Static WEP RC4 40, 104, 128 bits, AES: CBC, CCM, CCMP, DES: DES-CBC, 3DES, SSL and TLS: RC4 128-bit and RSA 1024-, 2048-bit, DTLS: AES-CBC, IPsec: DES-CBC, 3DES, AES-CBC, 802.1AE MACsec encryption |
| Management Standards | SNMP v1, v2c, v3, RFC 854 (Telnet), RFC 1155 (Management Information for TCP/IP), RFC 1156 (MIB), RFC 1157 (SNMP), RFC 1213 (SNMP MIB II), RFC 1350 (TFTP), RFC 1643 (Ethernet MIB), RFC 2030 (SNTP), RFC 2616 (HTTP), RFC 2665 (Ethernet-Like Interface Types MIB), RFC 2674 (Managed Objects for Bridges), RFC 2819 (RMON MIB), RFC 2863 (Interfaces Group MIB), RFC 3164 (Syslog), RFC 3414 (USM for SNMPv3), RFC 3418 (MIB for SNMP), RFC 3636 (Managed Objects for IEEE 802.3 MAUs), RFC 4741 (NETCONF), RFC 4742 (NETCONF over SSH), RFC 6241 (NETCONF), RFC 6242 (NETCONF over SSH), RFC 5277 (NETCONF event notifications), RFC 5717 (Partial Lock RPC), RFC 6243 (With-Defaults capability for NETCONF), RFC 6020 (YANG), Cisco private MIBs |
| Regulatory Compliance | Safety: UL/CSA 60950-1, IEC/EN 60950-1, AS/NZS 60950.1, CAN/CSA-C22.2 No. 60950-1, EMC Emissions Class A: FCC 47CFR15, AS/NZS CISPR 22, CISPR 22, EN55022/EN55032 (EMI-1), ICES-003, VCCI, KN 32 (EMI-2), CNS-13438, EMC Emissions: EN61000-3-2 (Power Line Harmonics), EN61000-3-3 (Voltage Changes, Fluctuations, and Flicker), EMC Immunity: IEC/EN61000-4-2 (Electrostatic Discharge), IEC/EN61000-4-3 (Radiated Immunity), IEC/EN61000-4-4 EFT-B (AC Power Leads, DC Power Leads, Signal Leads), IEC/EN61000-4-5 (Surge AC Port, DC Port, Signal Port), IEC/EN61000-4-6 (Conducted Disturbances), IEC/EN61000-4-8 (Power Frequency Magnetic Field Immunity), IEC/EN61000-4-11 (Voltage Dips, Short Interruptions), K35 (EMI-2), EMC (ETSI/EN): EN 300 386 (Telecommunications Network Equipment), EN55022 (Information Technology Equipment Emissions), EN55024/CISPR 24 (Information Technology Equipment Immunity), EN50082-1/EN61000-6-1 (Generic Immunity Standard) |
| Hard Disk Drives (HDD) | SATA SSD, 240 GB of memory |
| Environmental Conditions Supported | Operating temperature: Normal: 5°C to 40°C (41°F to 104°F), Short term: 5°C to 50°C (41°F to 122°F), Nonoperating temperature: -40°C to 65°C (-104°F to 149°F), Operating humidity: Nominal: 5% to 85% non-condensing, Short term: 5% to 90% noncondensing, Nonoperating temperature humidity: 5% to 93% at 82°F (28°C), Operating altitude: 0 to 3000 m (0 to 10,000 ft), Non-operating altitude: 0 to 12,192 m (0 to 40,000 ft), Electrical input: AC input frequency range: 47 to 63 Hz, AC input range: 90 to 264 VAC with AC PEM, 1100W AC with optional redundant power supply (hot-swappable), Maximum power: 381W, Heat dissipation: 1,300 BTU/hr, Sound power level measure: A-weighted sound power level is 74.1 LpAm(dBA) @ 27°C nominal operation |
| Wired, Switching, and Routing Standards | IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, 1000BASE-T, 1000BASE-SX, 1000BASE-LH, IEEE 802.1Q VLAN tagging, 802.1AX Link Aggregation |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this C9800-40-K9, Cisco Catalyst 9800-40 Wireless Controller, 40Gbps throughput/2000 APs/RAID 1 (C9800-40-K9) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This C9800-40-K9, Cisco Catalyst 9800-40 Wireless Controller, 40Gbps throughput/2000 APs/RAID 1 includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the C9800-40-K9, Cisco Catalyst 9800-40 Wireless Controller, 40Gbps throughput/2000 APs/RAID 1 compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the C9800-40-K9.
