Brand: Cisco · SKU: C9400-SUP-1XL-Y · MPN: C9400-SUP-1XL-Y · Category: Networking

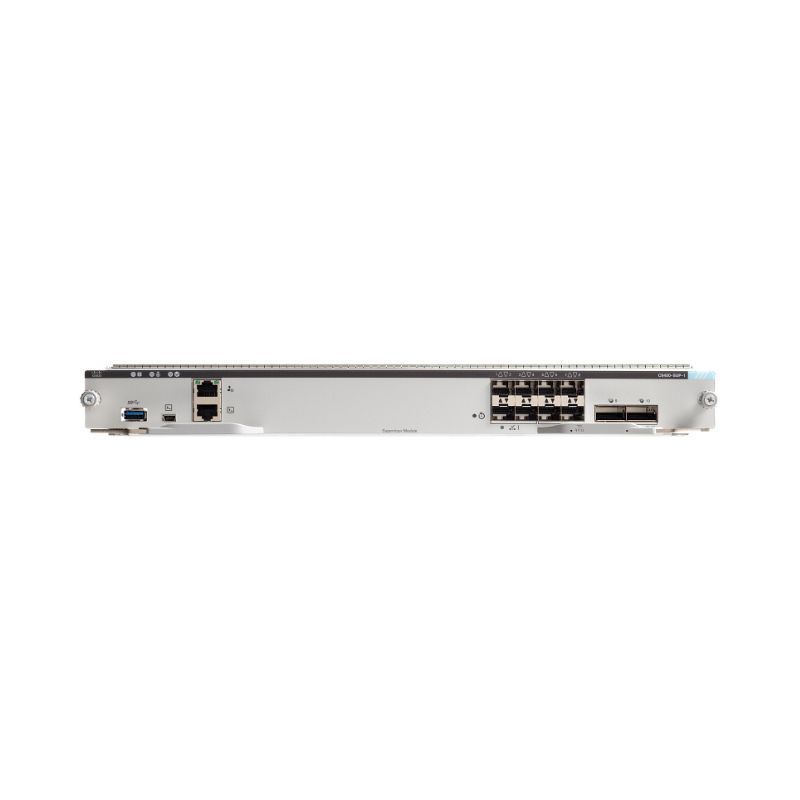

The Cisco C9400-SUP-1XL-Y is a next-generation supervisor engine for the Catalyst 9400 Series Switches, optimized for enterprise-class core and aggregation layers. It supports up to 240 Gbps per slot in a 4-slot chassis and offers unique investment protection with a 25G uplink connectivity option. The '-Y' variant enables up to 90 W per port when paired with Cisco UPOE+ line-cards, making it ideal for high-power PoE deployments like IP cameras, Wi-Fi 6 APs, and LED lighting. It is built on Cisco's programmable UADP 2.0 ASIC, delivers wire-rate MACsec-256 on every access port, and supports flexible SDM templates and on-box analytics with optional NVMe SSD. Uplink options are software-selectable: 8x 10G SFP+ or 2x 40G QSFP+. It is designed for scalability, high availability (NSF/SSO, ISSU), and security in modern campus and aggregation networks.
| ASIC | Cisco Unified Access Data Plane (UADP) 2.0 ASIC |
|---|---|
| Security | Wire-rate MACsec-256 on every access port |
| Module Type | Supervisor 1XL-Y Module |
| PoE Support | Supports up to 90 W per port with Cisco UPOE+ line-cards ('-Y' variant feature) |
| Forwarding Rate | 900 Mpps |
| Compatibility (Chassis) | Cisco Catalyst C9404R, C9407R, C9410R Chassis |
| Minimum Firmware Required | Cisco IOS XE Software Release 16.9.1 |
| Centralized Wired Capacity | Up to 1.44 Tbps |
| Uplink Ports Configuration | Software-selectable: 8x 10G SFP+ OR 2x 40G QSFP+ OR 4x10 Gbit and 1x40 Gbit Ethernet |
| Per-slot Switching Capacity (C9404R) | Up to 240 Gbps |
| Warranty | Varies by seller; some listings mention 365 days or Three year warranty (for refurbished units). |
| Weight | 10 lb (4.5 kg) |
| Dimensions | 1.6 x 14.92 x 14.57 in. (4.06 x 37.90 x 37.00 cm) |
The Cisco C9400-SUP-1XL-Y is a high-performance supervisor engine for the Catalyst 9400 Series modular switching platform. It is engineered to handle the demands of modern enterprise cores and aggregation layers, featuring support for high-density 25G uplinks and superior power delivery capabilities via the '-Y' variant's support for Cisco UPOE+ (up to 90W per port). It incorporates the UADP 2.0 ASIC for advanced features like programmable pipelines and hardware-based security (MACsec-256), ensuring future-readiness, high throughput, and robust network control and management.
Yes, this Cisco Catalyst 9400 Series Supervisor 1XL-Y Module (C9400-SUP-1XL-Y) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
This Cisco Catalyst 9400 Series Supervisor 1XL-Y Module includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the C9400-SUP-1XL-Y.
