Brand: Cisco · SKU: C9400-SUP-1XL · MPN: C9400-SUP-1XL · Category: Networking

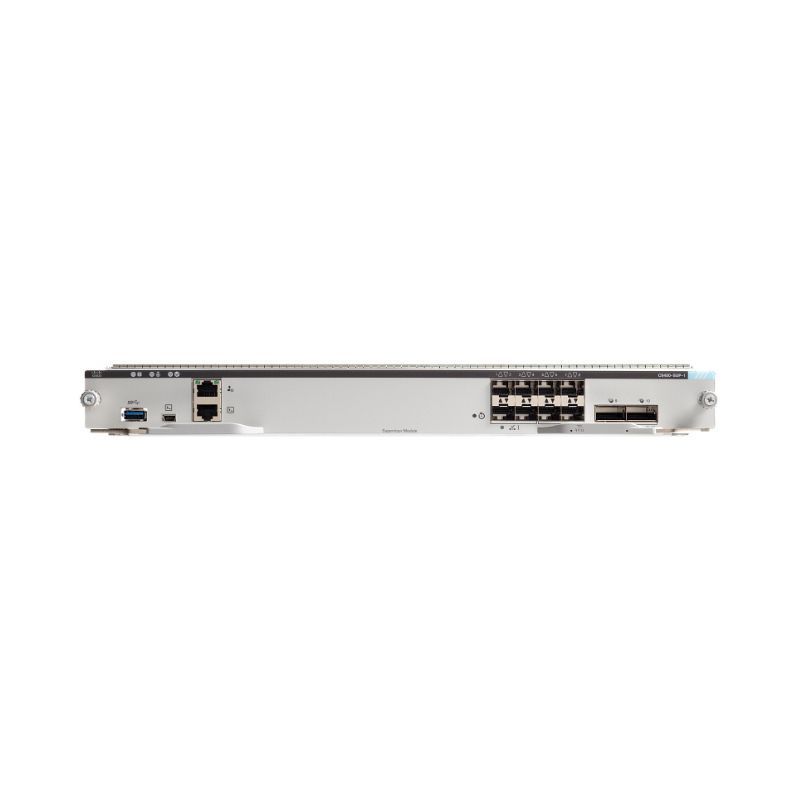

The Cisco Catalyst C9400-SUP-1XL is a next-generation supervisor engine optimized for enterprise-class core and aggregation layers. It is built on the Cisco Unified Access Data Plane (UADP) 2.0 ASIC, providing a programmable pipeline and micro-engine capabilities. The module supports up to 1.44 Tbps of wired switching capacity and 900 Mpps of throughput. It features high-density 10G and 40G uplinks, deep programmability via Cisco IOS XE, and advanced security mechanisms including MACsec-256 encryption and Cisco TrustSec. Designed for the Catalyst 9400 Series modular chassis, it provides centralized control and ensures high availability with features like Nonstop Forwarding (NSF) and Stateful Switchover (SSO).
| ASIC | Cisco Unified Access Data Plane (UADP) 2.0 |
|---|---|
| DRAM | 16 GB DDR4 |
| MTBF | 237,670 hours |
| Uplinks | 8x 10G SFP+ or 2x 40G QSFP+ |
| Processor | Intel 2.4-GHz x86 (8 cores/threads) |
| SSD Storage | 960 GB SATA SSD |
| Flash Memory | 10 GB |
| Forwarding Rate | Up to 900 Mpps |
| Switching Capacity | Up to 1.44 Tbps |
| Warranty | Cisco Enhanced Limited Lifetime Warranty (E-LLW) |
| Weight | 10 lb (4.5 kg) |
| Dimensions | 1.6 x 14.92 x 14.57 in (4.06 x 37.90 x 37.00 cm) |
The C9400-SUP-1XL supervisor module is the central control engine for the Cisco Catalyst 9400 Series modular switch platform. It provides the scale and performance required for high-density campus distribution and core deployments, supporting advanced routing, SD-Access, and network virtualization services.
Yes, this Cisco Catalyst 9400 Series Supervisor 1XL Module (C9400-SUP-1XL) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
This Cisco Catalyst 9400 Series Supervisor 1XL Module includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the C9400-SUP-1XL.
