Brand: Cisco · SKU: C9300L-48UXG-4X-A · MPN: C9300L-48UXG-4X-A · Category: Networking

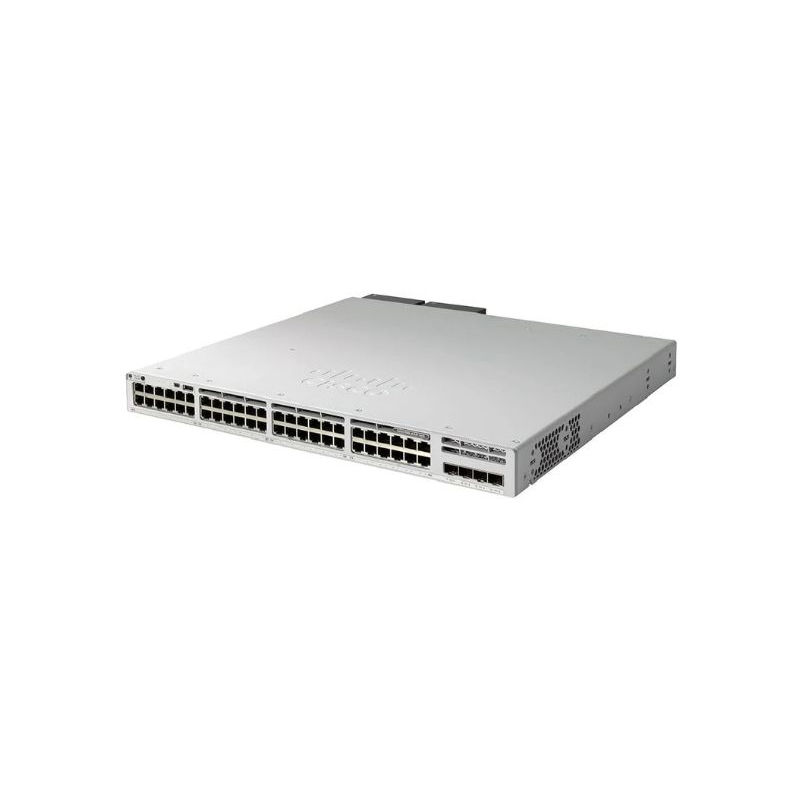

The Cisco C9300L-48UXG-4X-A is a Cisco Catalyst 9300L Series stackable enterprise access switch. It features 48 UPOE copper ports: 12 Multi-Gigabit (mGig) ports supporting 10G/5G/2.5G/1G/100M, and 36 standard 1G/100M/10M ports. It includes four fixed 10 Gbps SFP+ uplinks. The switch runs Cisco IOS XE with the Network Advantage license, enabling full Layer 3 routing capabilities (OSPF, EIGRP, BGP, VRF-Lite, MPLS, PIM-SM multicast). It supports StackWise-320 technology for up to 320 Gbps stacking bandwidth across up to eight switches. The default configuration includes an integrated 1100 W AC power supply providing a default 675 W PoE budget. Key security features include MACsec-128 encryption, 802.1X authentication, DHCP Snooping, Dynamic ARP Inspection, and TrustSec. It is ideal for PoE-heavy campus and branch deployments like IP surveillance and Wi-Fi 6 AP aggregation.
| Uplink Ports | 4 x 10 Gbps SFP+ fixed |
|---|---|
| Downlink Ports | 48 x UPOE (12 x mGig 10G/5G/2.5G/1G/100M + 36 x 1G/100M/10M) |
| Forwarding Rate | 291.66 Mpps (529.76 Mpps with stacking) |
| PoE Power Budget | 675W (Default from 1100W AC PSU) |
| Software License | Network Advantage |
| Switching Capacity | 392 Gbps (712 Gbps with stacking) |
| Stacking Technology | StackWise-320 (up to 320 Gbps) |
| Fan Modules Included | 3x FAN-T2 Fan Modules |
| Power Supply Included | 1x PWR-C1-1100WAC-P (2 Slots) |
| MAC Address Table Size | 32,000 |
| Warranty | Limited lifetime warranty |
| Weight | Not Available |
| Dimensions | 4.4 x 44.5 x 48.8 cm (Chassis only with 1100W Power Supply) |
The Cisco Catalyst 9300L-48UXG-4X-A is a high-density, stackable enterprise access switch designed for high-power density environments using UPOE. It combines Multi-Gigabit flexibility with 10G uplinks and advanced Layer 3 routing via the Network Advantage license, making it suitable for modern, secure, and scalable campus edge deployments.
Yes, this Cisco Catalyst 9300L 48-port UPOE Multi-Gigabit Switch, 4x10G Uplink, Network Advantage (C9300L-48UXG-4X-A) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
This Cisco Catalyst 9300L 48-port UPOE Multi-Gigabit Switch, 4x10G Uplink, Network Advantage includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the C9300L-48UXG-4X-A.
