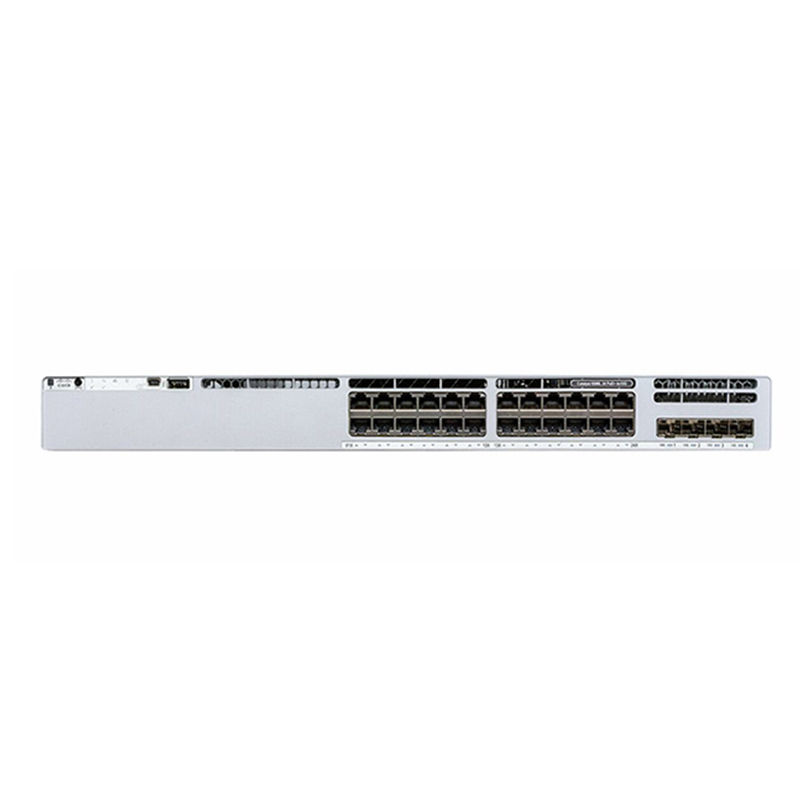

C9300L-24UXG2Q-10E, Cisco Catalyst 9300, 24x10G/2x40G/Stackable
Brand: Cisco · SKU: C9300L-24UXG2Q-10E · MPN: C9300L-24UXG2Q-10E · Category: Networking
C9300L-24UXG2Q-10E is one of the Cisco Catalyst 9300 Series switches. The Cisco Catalyst 9300 Series switches are Cisco's lead stackable enterprise switching platform built for security, IoT, mobility, and cloud.
Specifications
| RAM | 8 GB |
|---|---|
| MTBF | 291,670 hours |
| Model | C9300L-24UXG2Q-10E |
| Ports | 16 x 10/100/1000 (UPOE) + 2 x 40Gb Ethernet + 8 x 1/2.5/5/10GBase-T |
| Subtype | Gigabit Ethernet |
| Capacity | IPv4 routes: 32000 IPv6 routes: 16000 Multicast scale: 8000 QoS scale entries: 5120 ACL scale entries: 5120 VLANs supported: 4094 Switched virtual interfaces (SVIs): 1000 |
| Features | Access Control List (ACL) support, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support, Energy Efficient Ethernet, Class of Service (CoS), Flexible NetFlow (FNF), 802.1x authentication, 16MB packet buffer, DiffServ Code Point (DSCP) support, MACsec support, Control plane protection (CoPP), Blue Beacon LED, Zero-touch provisioning (ZTP), secure boot, Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Committed Information Rate (CIR), Cisco Trust Anchor module, Cisco Unified Access Data Plane (UADP) 2.0, Cisco StackWise-320 technology |
| Interfaces | 16 x 1000Base-T RJ-45 60 W 2 x 40Gbit LAN uplink 1 x network stack device 1 x management (LAN) RJ-45 1 x console 1 x USB 2.0 8 x 1/2.5/5/10GBase-T RJ-45 |
| PoE Budget | 722 W |
| Device Type | Switch - 24 ports - L3 - managed - stackable |
| Performance | Switching capacity: 352 Gbps Switching capacity with stacking: 672 Gbps Forwarding rate: 261.9 Mpps Forwarding rate with stacking: 500 Mpps |
| Flash Memory | 16 GB |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 1 (installed) / 2 (max) |
| Enclosure Type | Rack-mountable |
| Power Provided | 1100 Watt |
| Bundled Services | 10 years Network Essentials |
| Power Redundancy | Optional |
| Routing Protocol | OSPF, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng, MSTP |
| Voltage Required | AC 100-240 V (50 - 60 Hz) |
| Status Indicators | Status |
| Dimensions (WxDxH) | 17.5 in x 1.7 in x 19.2 in |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 1588v2, IEEE 802.1BA, IEEE 802.3bt, Wi-Fi CERTIFIED 6 |
| Jumbo Frame Support | 9198 bytes |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this C9300L-24UXG2Q-10E, Cisco Catalyst 9300, 24x10G/2x40G/Stackable (C9300L-24UXG2Q-10E) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This C9300L-24UXG2Q-10E, Cisco Catalyst 9300, 24x10G/2x40G/Stackable includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the C9300L-24UXG2Q-10E, Cisco Catalyst 9300, 24x10G/2x40G/Stackable compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the C9300L-24UXG2Q-10E.
