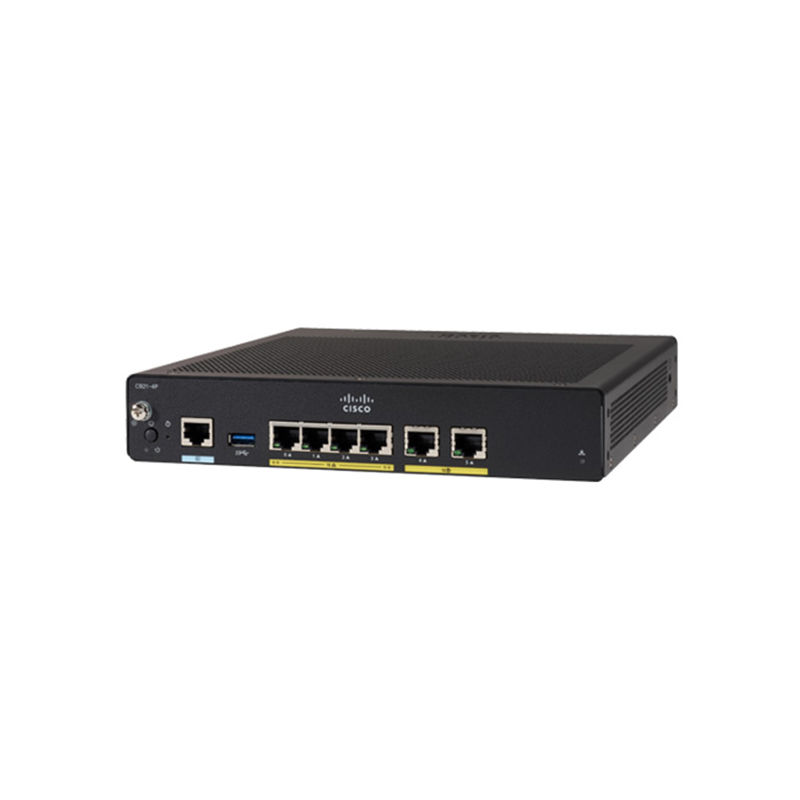

C927-4PM, Cisco 900 Series Router, 4xGE LAN/1xVDSL2/ADSL2+
SKU: C927-4PM · MPN: C927-4PM · Category: Networking
$1,000.96
In Stock • 10 units
Cisco 927 Gigabit Ethernet security router with VDSL/ADSL2+ Annex M (with CAT4 LTE)
Specifications
| WAN | ● Refer to Table 2 for details |
|---|---|
| IPv6 | ● IPv6 addressing architecture ● IPv6 name resolution ● IPv6 statistics ● IPv6 translation: Transport packets between IPv6-only and IPv4-only endpoints (NAT-Protocol Translation) ● Internet Control Message Protocol Version 6 (ICMPv6) ● IPv6 DHCP ● OSPFv3 ● BGP4+ ● IPv6 Path Maximum Transmission Unit (PMTU) ● IPv6 neighbor discovery ● IPv6 stateless address autoconfiguration (SLAAC) ● IPv6 multicast routing |
| xDSL | ● True Multimode VDSL2 and ADSL2+ over Annex A, B, J, and M, including traditional G.DMT and T1.413 ● World-class interoperability with industry-standard DSL Access Multiplexer (DSLAM) chipsets ● Highest field reliability with Impulse Noise Protection (INP) over Repetitive Electrical Impulse Noise (REIN) and single isolated impulse noise (SHINE), extended INP delay, G.INP, physical layer retransmission, Seamless Rate Adaptation (SRA), and Bitswap ● VDSL2 Persistent Storage Device (PSD) profiles up to 17a/b with support for spectral shaping ● VDSL2 vectoring to offer blazing fiber speeds over copper ● Remote management with TR069 and CWMP ● Investment protection with Gigabit Ethernet |
| USB 2.0 | ● One USB 2.0 Type A port |
| LAN switch | ● Refer to Table 2 for details |
| Management | ● Cisco Configuration Professional ● Cisco Configuration Express ● Cisco Configuration Engine support ● Cisco AutoInstall ● Cisco IP Service-Level Agreement (IP SLA) ● Cisco IOS Embedded Event Manager (EEM) ● CiscoWorks ● Cisco Security Manager ● Telnet, Simple Network Management Protocol Version 3 (SNMPv3), Secure Shell (SSH) Protocol, Command-Line Interface (CLI), and HTTP management ● RADIUS and TACACS+ ● Cisco Next Generation Plug-and-Play (NG PnP) Protocol |
| Power supply | Power specifications: ● AC input voltage: Universal 100 to 240 VAC ● Frequency: 50 to 60 Hz ● External power adapter (C927-4P, C927-4PM, and C926-4P only): 12 VDC; 30 W |
| LAN interfaces | 4-port GE managed switch |
| Metro Ethernet | ● Ethernet OA&M ● Ethernet Local Management Interface (E-LMI) ● IP SLA for Ethernet |
| WAN interfaces | 1 port GE and 1 VADSL (Annex M) |
| Switch features | ● Auto Media Device In/Media Device Cross Over (MDI-MDX) ● 25 802.1Q VLANs ● MAC filtering ● Switched Port Analyzer (SPAN) ● Storm control ● Smart ports ● Secure MAC address ● Internet Group Management Protocol Version 3 (IGMPv3) snooping ● 802.1X |
| High availability | ● Virtual Router Redundancy Protocol (VRRP) (RFC 2338) ● HSRP ● MHSRP |
| Security features | Secure connectivity: ● Secure Sockets Layer (SSL) VPN for secure remote access ● Hardware-accelerated DES, 3DES, AES 128, AES 192, and AES 256 ● Public-Key-Infrastructure (PKI) support ● 50 IPsec tunnels ● Cisco Easy VPN client and server ● NAT transparency ● Dynamic Multipoint VPN (DMVPN) ● Tunnel-less Group Encrypted Transport VPN (GET VPN) ● VRF-aware IPsec ● IPsec over IPv6 ● Adaptive control technology ● Session Initiation Protocol (SIP) application-layer gateway ● Cisco IOS Firewall: ◦ Zone-based policy firewall ◦ VRF-aware stateful inspection routing firewall ◦ Stateful inspection transparent firewall ● Advanced application inspection and control ● HTTPS, FTP, and Telnet Authentication Proxy ● Dynamic and static port security ● Firewall stateful failover ● VRF-aware firewall ● Cisco IOS Software black and white lists ● Integrated threat control: ◦ Intrusion Prevention System (IPS) ● Control plane policing ● Flexible packet matching ● Network foundation protection |
| IP and IP services | ● Routing Information Protocol Versions 1 and 2 (RIPv1 and RIPv2) ● Generic Routing Encapsulation (GRE) and Multipoint GRE (MGRE) ● Cisco Express Forwarding ● Standard 802.1d Spanning Tree Protocol ● Layer 2 Tunneling Protocol (L2TP) ● L2TP Version 3 (L2TPv3) ● Network Address Translation (NAT) ● Dynamic Host Configuration Protocol (DHCP) server, relay, and client ● Dynamic DNS ● DNS Proxy ● DNS Spoofing ● Access Control Lists (ACLs) ● IPv4 and IPv6 multicast ● Open Shortest Path First (OSPF) ● Border Gateway Protocol (BGP) ● Performance Routing (PfR) ● Enhanced Interior Gateway Routing Protocol (EIGRP) ● Virtual Route Forwarding (VRF) Lite ● Next Hop Resolution Protocol (NHRP) ● Bidirectional Forwarding Detection (BFD) ● Web Cache Communication Protocol (WCCP) |
| Integrated USB 2.0 | Yes |
| Physical dimensions | H x W x D = 1.10 x 10.20 x 7.00 in. (2.80 x 25.91 x 17.78 cm) (includes rubber feet) |
| Separate console ports | ● RJ-45 |
| Approvals and compliance | Safety: ● IEC 60950-1 ● UL 60950-1 ● CAN/CSA C22.2 No. 60950-1 ● EN 60950-1 ● AS/NZS 60950.1 ● Class III Equipment (C927-4P, C927-4PM, and C926-4P only) Emissions: ● 47 CFR Part 15: 2006 ◦ CISPR22: Edition 6.0: 2008 ◦ CNS13438: 2006 ◦ EN 300 386 V1.6.1 ◦ EN 55032 ◦ EN61000-3-2: 2006 [+ amd 1 & 2] ◦ EN61000-3-3: 2008 ◦ ICES-003 Issue 5: 2012 ◦ KN 22: 2009 ● TCVN 7189: 2009 ● VCCI: V-3/2012.04 Immunity: ● CISPR24: 2010 [+ amd 1 & 2] ◦ EN300386: V1.6.1 ◦ EN55024: 2010 ◦ EN61000-6-1: 2007 ◦ KN24: 2011 ◦ TCVN 7317:2003 |
| Default and maximum DRAM | ● Default 1 GB |
| Quality of Service (QoS) | ● Low-Latency Queuing (LLQ) ● Weighted Fair Queuing (WFQ) ● Class-Based WFQ (CBWFQ) ● Class-Based Traffic Shaping (CBTS) ● Class-Based Traffic Policing (CBTP) ● Policy-Based Routing (PBR) ● Class-Based QoS MIB ● Class of Service (CoS)-to-Differentiated Services Code Point (DSCP) mapping ● Class-Based Weighted Random Early Detection (CBWRED) ● Network-Based Application Recognition (NBAR) ● Link Fragmentation and Interleaving (LFI) ● Resource Reservation Protocol (RSVP) ● Real-Time Transport Protocol (RTP) header compression (cRTP) ● Differentiated Services (DiffServ) ● QoS preclassify and prefragmentation ● Hierarchical QoS (HQoS) |
| Number of recommended users | ● 50 |
| Environmental operating range | ● Nonoperating temperature: -40° to 158°F (-40° to 70°C) ● Nonoperating humidity: 5% to 95% relative humidity (noncondensing) ● Nonoperating altitude: 0 to 15,000 ft (0 to 4570 m) ● Operating temperature: 0° to 45°C (de-rate 1°C per 1000-ft increase in altitude) ● Operating humidity: 5% to 95% relative humidity (noncondensing) ● Operating altitude: 0 to 10,000 ft (0 to 3000 m) |
| Default and maximum flash memory | ● 2 GB on all Cisco 900 Series ISR models; not upgradable |
| Application visibility and control | ● NBAR2 ● Flexible NetFlow (FNF) ● Performance Agent |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this C927-4PM, Cisco 900 Series Router, 4xGE LAN/1xVDSL2/ADSL2+ (C927-4PM) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This C927-4PM, Cisco 900 Series Router, 4xGE LAN/1xVDSL2/ADSL2+ includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the C927-4PM, Cisco 900 Series Router, 4xGE LAN/1xVDSL2/ADSL2+ compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the C927-4PM.
