Brand: Cisco · SKU: C9120AXI-H · MPN: C9120AXI-H · Category: Networking

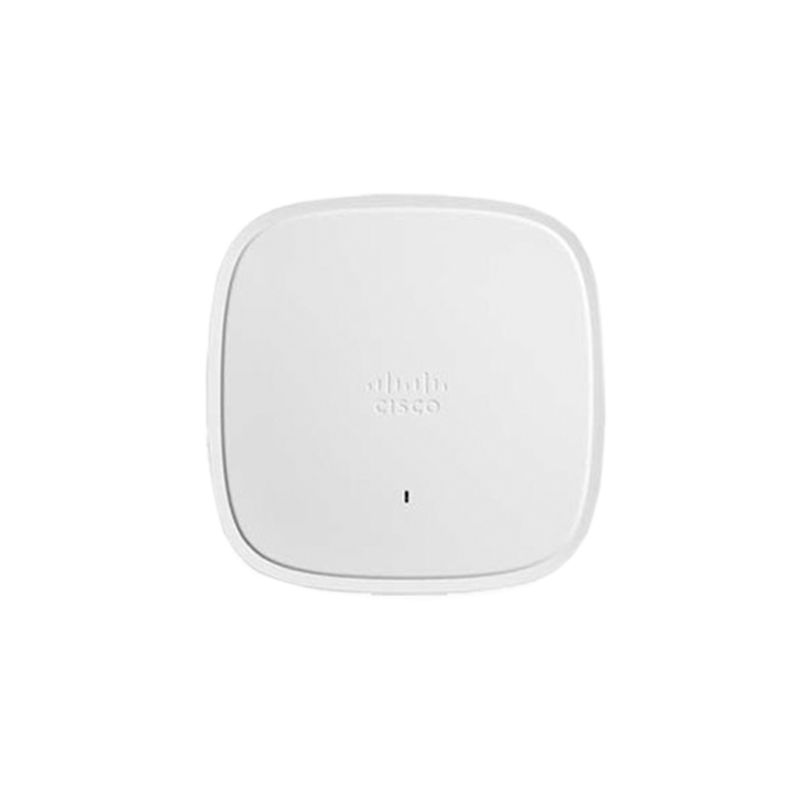

The C9120AXI-H is a Cisco Catalyst 9120AX Access Point featuring internal antennas, Wi-Fi 6 support, and 4x4:4 MIMO capabilities, operating in the H regulatory domain. It is part of the next-generation Wi-Fi solution built for intent-based networking and Cisco DNA, designed to simplify complexity, optimize IT, and reduce operational costs. It supports up to 2.5 Gbps uplink speeds and can operate with Cisco Catalyst 9800 Series Wireless Controllers, or older supported controllers like the 3500, 5520, and 8540 Series, and the Cisco Virtual Wireless Controller. It includes features like Cisco RF ASIC, Bluetooth 5, IoT radio, and runs Cisco IOS XE Software Release 16.11 with AP Device Pack, or later. It has four radios: 2.4 GHz (4x4), 5 GHz (4x4), Cisco RF ASIC, and BLE/IoT. The 5 GHz internal antenna has a peak gain of 5 dBi, and the 2.4 GHz internal antenna has a peak gain of 4 dBi, both omnidirectional in azimuth. The device supports a maximum of 100 FlexConnect APs per site and up to 2
| MIMO | 4x4:4 |
|---|---|
| Interfaces | 1x 100/1000/2500 Multigigabit Ethernet (RJ-45), Management console port (RJ-45), USB 2.0 @ 3.75W |
| Antenna Type | Internal |
| Uplink Speed | 2.5 Gbps (supports 100 Mbps, 1 Gbps, and 10GBASE-T via IEEE 802.3bz) |
| Wi-Fi Standard | Wi-Fi 6 (802.11ax) |
| Regulatory Domain | H Domain |
| Operating Humidity | 10% to 90% (noncondensing) |
| Operating Temperature | -4° to 122°F (-20° to 50°C) |
| PoE Power Consumption | 802.3at (PoE+) |
| Warranty | 3-Year warranty for enterprise hardware (via RSCare mention on a distributor site). |
| Weight | 2.87 lbs (1.3 kg) |
| Dimensions | 8.5 x 8.5 x 1.7” (21.6 x 21.6 x 4.3 cm) |
The Cisco Catalyst 9120AXI-H is a high-performance, indoor Wi-Fi 6 access point. It supports 4x4:4 MIMO and operates in the H regulatory domain. It is designed for resilience, security, and intelligence within intent-based networking architectures. It features integrated antennas and supports advanced features through its Cisco RF ASIC and compatibility with Cisco Catalyst 9800 Series Wireless Controllers.
Yes, this Cisco Catalyst 9120AXI Access Point, internal antennas; Wi-Fi 6; 4x4:4 MIMO, H Domain (C9120AXI-H) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
This Cisco Catalyst 9120AXI Access Point, internal antennas; Wi-Fi 6; 4x4:4 MIMO, H Domain includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the C9120AXI-H.
