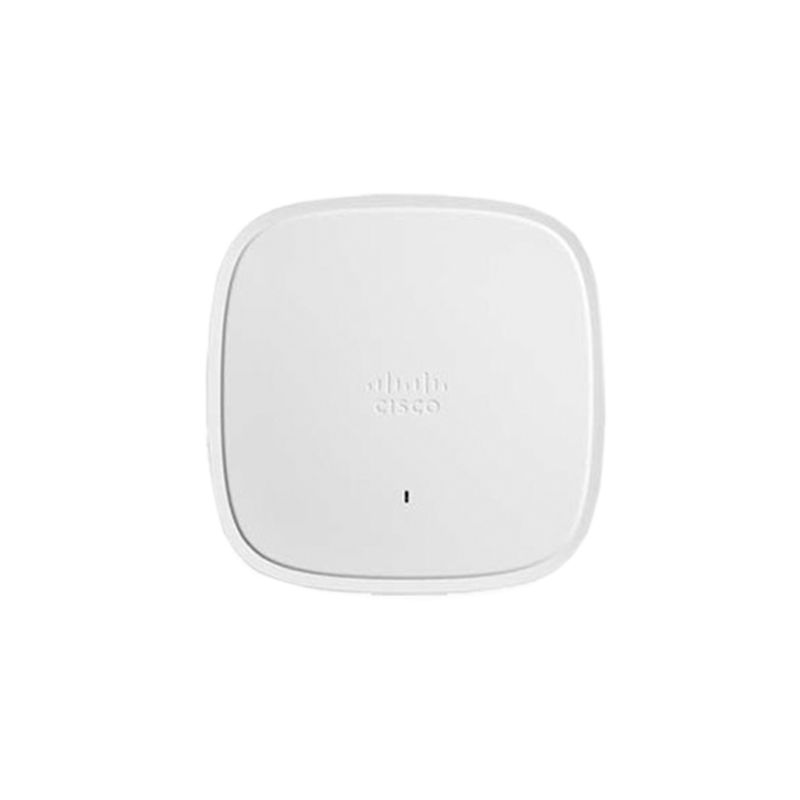

C9120AXI-B-EDU, Cisco Catalyst 9120AX Access Point, Wi-Fi 6/4x4:4 MIMO/Internal Antenna
Brand: Cisco · SKU: C9120AXI-B-EDU · MPN: C9120AXI-B-EDU · Category: Networking
$1,265.00
In Stock • 10 units
Cisco Catalyst 9120AX Access Point, internal antennas; Wi-Fi 6; 4x4:4 MIMO, B Domain
Specifications
| Model | C9120AXI-B-EDU |
|---|---|
| 802.11ac | 4x4 downlink MU-MIMO with four spatial streams MRC 802.11ac beamforming 20-, 40-, 80-, and 160-MHz channels PHY data rates up to 3.47 Gbps (160 MHz) Packet aggregation: A-MPDU, A-MSDU 802.11 DFS CSD support |
| 802.11ax | 4x4 downlink MU-MIMO with four spatial streams Uplink/downlink OFDMA TWT BSS coloring MRC 802.11ax beamforming 20-, 40-, 80-, and 160-MHz channels PHY data rates up to 5.38 Gbps Packet aggregation: A-MPDU, A-MSDU 802.11 DFS CSD support |
| Software | Cisco Unified Wireless Network Software Release 8.9.x or later Cisco IOS® XE Software Release 16.11 with AP Device Pack, or later |
| Indicators | Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors |
| Interfaces | 1x 100, 1000, 2500 Multigigabit Ethernet (RJ-45) – IEEE 802.3bz Management console port (RJ-45) USB 2.0 @ 3.75W (enabled via future software) |
| Description | Cisco Catalyst 9120AX Access Point, internal antennas; Wi-Fi 6; 4x4:4 MIMO, B Domain |
| Environmental | Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C) Nonoperating (storage) altitude test: 25°C, 15,000 ft. Operating temperature: 32° to 122°F (0° to 50°C) Operating humidity: 10% to 90% (noncondensing) Operating altitude test: 40°C, 9843 ft. |
| System Memory | 2048 MB DRAM 1024 MB flash |
| Integrated Antenna | Flexible radio (2.4GHz or 5GHz) 2.4 GHz, peak gain 4 dBi, internal antenna 5 GHz, peak gain 5 dBi, internal antenna Dedicated 5GHz radio 5 GHz, peak gain 4 dBi, internal antenna |
| Dimensions (W x L x H) | Access point (without mounting brackets): 8.5 x 8.5 x 1.7 in (21.6 x 21.6 x 4.3 cm) |
| Smart Antenna Connector | Available on the 9120E and 9120P only Compact multi RF connector with DART interface Requires AIR-CAB002-DART-R= 2 ft smart antenna connector Required when running the flexible radio as a second 5-GHz serving radio or Wireless Security Monitoring radio |
| 802.11n 2.0 Capabilities | 4x4 MIMO with four spatial streams Maximal Ratio Combining (MRC) 802.11n and 802.11a/g beamforming 20- and 40-MHz channels PHY data rates up to 890 Mbps Packet aggregation: A-MPDU, A-MSDU 802.11 Dynamic Frequency Selection (DFS) Cyclic Shift Diversity (CSD) support |
| Input Power Requirements | 802.3at Power over Ethernet Plus (PoE+), 802.3bt Cisco Universal PoE (Cisco UPOE+, Cisco UPOE®) Cisco power injector, AIR-PWRINJ6= 802.3af PoE Cisco power injector, AIR-PWRINJ5= (Note: This injector supports only 802.3af) |
| Available Transmit Power Settings | 2.4 GHz: 23 dBm (200 mW), 20 dBm (100 mW), 17 dBm (50 mW), 14 dBm (25 mW), 11 dBm (12.5 mW), 8 dBm (6.25 mW), 5 dBm (3.13 mW), 2 dBm (1.56 mW), -1dBm (0.79mW), -4dBm (0.39mW) 5 GHz: 26 dBm (400 mW), 23 dBm (200 mW), 20 dBm (100 mW), 17 dBm (50 mW), 14 dBm (25 mW), 11 dBm (12.5 mW), 8 dBm (6.25 mW), 5 dBm (3.13 mW), 2 dBm (1.56 mW), -1dBm (0.79mW) |
| External Antenna (sold separately) | Cisco Catalyst 9120E Access Points with antenna gains up to 6 dBi Cisco Catalyst 9120P Access Points with antenna gains up to 13 dBi Supports Self-Identifiable Antennas (SIA) on one RP-TNC port |
| Supported Wireless LAN Controllers | Cisco Catalyst 9800 Series Wireless Controllers Cisco 3500, 5520, and 8540 Series Wireless Controllers and Cisco Virtual Wireless Controller |
| Frequency Band and 20-MHz Operating Channels | 2.412 to 2.462 GHz; 11 channels 5.180 to 5.320 GHz; 8 channels 5.500 to 5.700 GHz; 11 channels 5.745 to 5.865 GHz; 7 channels |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this C9120AXI-B-EDU, Cisco Catalyst 9120AX Access Point, Wi-Fi 6/4x4:4 MIMO/Internal Antenna (C9120AXI-B-EDU) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This C9120AXI-B-EDU, Cisco Catalyst 9120AX Access Point, Wi-Fi 6/4x4:4 MIMO/Internal Antenna includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the C9120AXI-B-EDU, Cisco Catalyst 9120AX Access Point, Wi-Fi 6/4x4:4 MIMO/Internal Antenna compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the C9120AXI-B-EDU.
