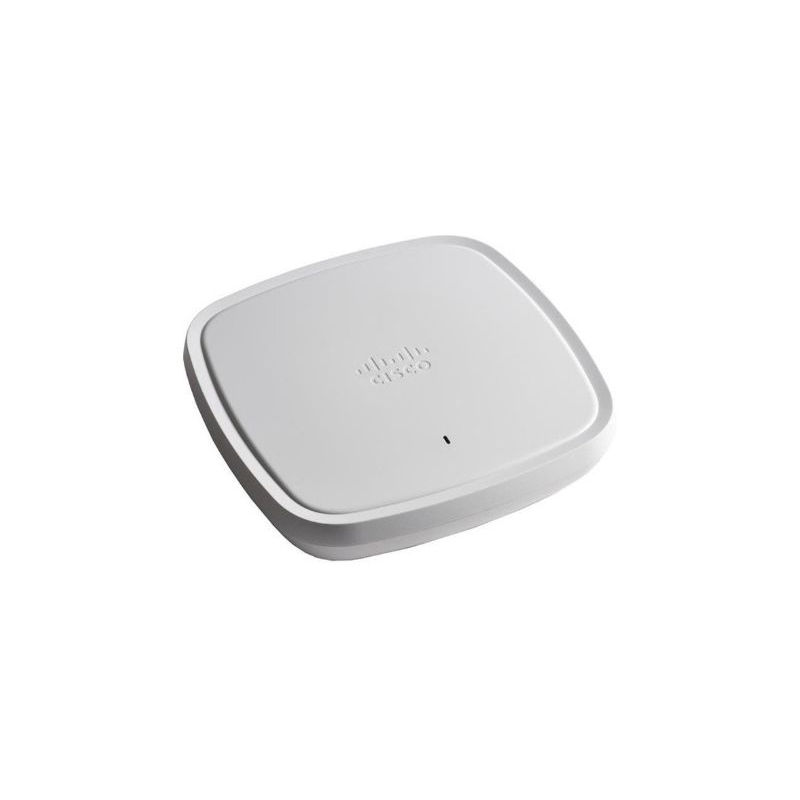

C9120AXE-E, Cisco Catalyst 9120AX Series Access Point, Wi-Fi 6, 4x4:4 MU-MIMO, External Antenna

SKU: C9120AXE-E · MPN: C9120AXE-E · Category: Networking

C9120AXE-E, Cisco Catalyst 9120AX Series Access Point, Wi-Fi 6, 4x4:4 MU-MIMO, External Antenna
Request for Quote
In Stock • 10 units

Cisco Catalyst 9120AX Series

View Wireless APs Products

Specifications

CPU800 MHz ARM
DRAM512 MB
Flash256 MB
Power100 to 240V 50 to 60 Hz, internal, universal: CBS250-16T-2G, CBS250-16P-2G, CBS250-24T-4G, CBS250-24PP-4G, CBS250-24P-4G, CBS250-24FP-4G, CBS250-48T-4G, CBS250-48PP-4G, CBS250-48P-4G, CBS250-24T-4X, CBS250-24P-4X, CBS250-24FP-4X, CBS250-48T-4X, CBS250-48P-4X 100 to 240V 50 to 60 Hz, external: CBS250-8T-D, CBS250-8PP-D, CBS250-8T-E-2G, CBS250-8PP-E-2G, CBS250-8P-E-2G, CBS250-8FP-E-2G
RADIUSSupports RADIUS authentication for management access. Switch functions as a client.
802.11ac4x4 downlink MU-MIMO with four spatial streams MRC 802.11ac beamforming 20-, 40-, 80-, and 160-MHz channels PHY data rates up to 3.47 Gbps (160 MHz with 5 GHz) Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) 802.11 DFS CSD support
802.11ax4x4 downlink MU-MIMO with four spatial streams Uplink/downlink OFDMA TWT BSS coloring MRC 802.11ax beamforming 20-, 40-, 80-, and 160-MHz channels PHY data rates up to 5.38 Gbps (160 MHz with 5 GHz and 20 MHz with 2.4 GHz) Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) 802.11 DFS CSD support
SoftwareCisco Unified Wireless Network Software Release 8.9.x or later Cisco IOS ® XE Software Release 16.11 with AP Device Pack, or later
WarrantyLimited lifetime
Interfaces1x 100, 1000, 2500 Multigigabit Ethernet (RJ-45)–IEEE 802.3bz Management console port (RJ-45) USB 2.0 @ 3.75W (enabled via future software)
I ndicatorsStatus LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors
CertificationUL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
EnvironmentalCisco Catalyst 9120AXI Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C) Nonoperating (storage) altitude test: 25˚C, 15,000 ft. Operating temperature: 32° to 122°F (0° to 50°C) Operating humidity: 10% to 90% (noncondensing) Operating altitude test: 40˚C, 9843 ft. Note: When the ambient operating temperature exceeds 40°C, the access point will shift from 4x4 to 2x2 on both the 2.4-GHz and 5-GHz radios, uplink Ethernet will downgrade to 1 Gigabit Ethernet; however, the USB interface will remain enabled Cisco Catalyst 9120AXE and 9120AXP Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C) Nonoperating (storage) altitude test: 25˚C, 15,000 ft. Operating temperature: -4° to 122°F (-20° to 50°C) Operating humidity: 10% to 90% (noncondensing) Operating altitude test: 40˚C, 9843 ft.
Port securityAbility to lock source MAC addresses to ports and limit the number of learned MAC addresses
Storm controlBroadcast, multicast, and unknown unicast
System memory2048 MB DRAM 1024 MB flash
DoS preventionDenial-of-Service (DoS) attack prevention
Storage humidity10% to 90%, relative, noncondensing
Integrated antennaFlexible radio (either on 2.4GHz or on 5GHz) 2.4 GHz, peak gain 4 dBi, internal antenna, omnidirectional in azimuth 5 GHz, peak gain 5 dBi, internal antenna, omnidirectional in azimuth Dedicated 5GHz radio 5 GHz, peak gain 4 dBi, internal antenna, omnidirectional in azimuth
Operating humidity10% to 90%, relative, noncondensing
STP loopback guardProvides additional protection against Layer 2 forwarding loops (STP loops)
Storage temperature-13° to 158°F (-25° to 70°C)
Trustworthy systemsTrustworthy systems provide a highly secure foundation for Cisco products Run-time defenses (Executable Space Protection [X-Space], Address Space Layout Randomization [ASLR], Built-In Object Size Checking [BOSC])
Operating temperature32° to 122°F (0° to 50°C) for CBS250-8T-D and CBS250-8PP-D 23° to 122°F (-5° to 50°C) for other models
Warranty3-Year Warranty

Key Features

  • OEM Genuine Component verified by certified technicians.
  • Clean serial number ready for service contract registration.
  • Electrostatic Discharge (ESD) safe packaging.
  • Supports hot-swapping for zero-downtime maintenance.

Frequently Asked Questions

Is this product genuine OEM?

Yes, this C9120AXE-E, Cisco Catalyst 9120AX Series Access Point, Wi-Fi 6, 4x4:4 MU-MIMO, External Antenna (C9120AXE-E) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.

What warranty is included?

This C9120AXE-E, Cisco Catalyst 9120AX Series Access Point, Wi-Fi 6, 4x4:4 MU-MIMO, External Antenna includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.

How long does shipping take?

We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.

Can I return this product?

Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.

Is the C9120AXE-E, Cisco Catalyst 9120AX Series Access Point, Wi-Fi 6, 4x4:4 MU-MIMO, External Antenna compatible with my system?

Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the C9120AXE-E.
