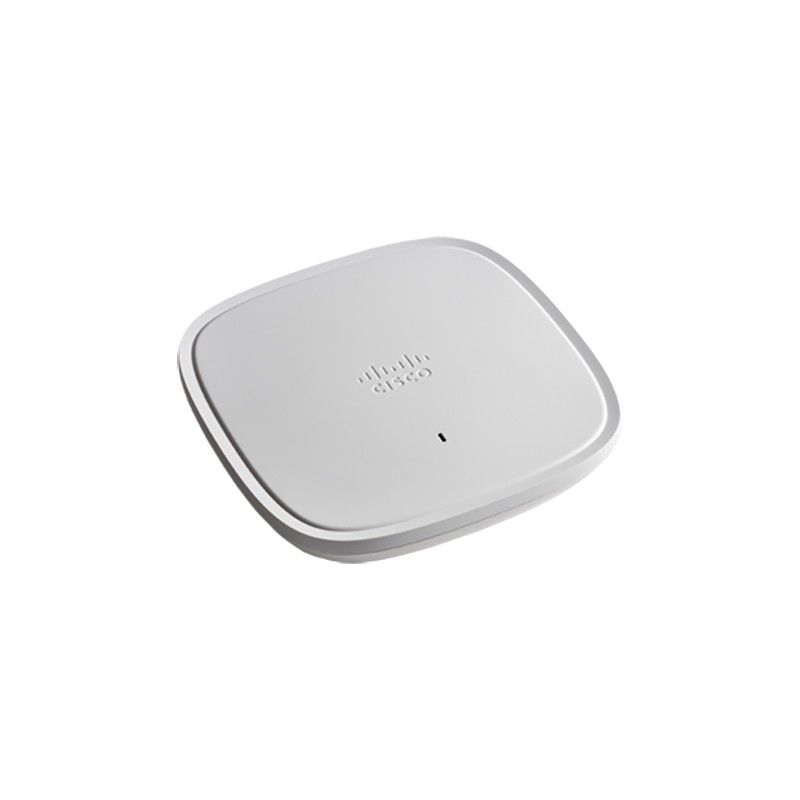

C9117AXI-H, Cisco Catalyst 9117AX Access Point, Wi-Fi 6/5.38Gbps/4x4 MU-MIMO

SKU: C9117AXI-H · MPN: C9117AXI-H · Category: Networking

C9117AXI-H, Cisco Catalyst 9117AX Access Point, Wi-Fi 6/5.38Gbps/4x4 MU-MIMO
Request for Quote
In Stock • 10 units

Cisco Catalyst 9117AX Series, H Domain

View Networking Products

Specifications

802.11ac•8x8 downlink MU-MIMO with eight spatial streams •MRC •802.11ac beamforming •20-, 40-, 80-, and 160-MHz channels • PHY data rates up to 3.5 Gbps at 5 GHz •Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) •CSD support
802.11ax•8x8 MIMO with eight spatial streams for 5-GHz band •4x4 MIMO with four spatial streams for 2.4-GHz band •Downlink OFDMA •TWT •MRC •802.11ax beamforming •20-, 40-, 80, and 160-MHz channels •PHY data rates up to 5 Gbps at 5 GHz •Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) •CSD support
Software•Cisco Unified Wireless Network Software Release 8.9 or later •Cisco IOS ® XE Software Release 16.11or later
Indicators• SStatus LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors
Interfaces•1x 100, 1000, 2500, 5000 Multigigabit Ethernet (RJ-45) – IEEE 802.3bz •Management console port (RJ-45) •USB 2.0 with up to 3.75W (enabled via future software)
DescriptionCisco Catalyst 9117AX Series, H Domain
Environmental•Nonoperating (storage) temperature: -22 ° to 158 ° F (-30 ° to 70 ° C) •Nonoperating (storage) altitude test: 25 ˚ C, 15,000 ft. •Operating temperature: 32 ° to 122 ° F (0 ° to 50 ° C) •Operating humidity: 10% to 90% (noncondensing) •Operating altitude test: 40 ˚ C, 9843 ft.
System memory•2048 MB DRAM •1024 MB flash
Integrated antenna• 2.4 GHz, peak gain 4 dBi, internal antenna, omnidirectional in azimuth •5 GHz, peak gain 6 dBi, internal antenna, omnidirectional in azimuth
Dimensions (W x L x H)• Access point (without mounting bracket and mounting features): 8.70 x 8.70 x 1.94 in. (22 x 22 x 4.93 cm) •Access point (without mounting bracket): 8.70 x 8.70 x 2.19 in. (22 x 22 x 5.56 cm)
Input power requirements•802.3at Power over Ethernet Plus (PoE+), 802.3bt Cisco Universal PoE (Cisco UPOE+, Cisco UPOE ® ) •Cisco power injector, AIR-PWRINJ6= •802.3af PoE •Cisco power injector, AIR-PWRINJ5= (Note: This injector supports only 802.3af) Note: When 802.3af PoE is the source of power, both 2.4-GHz and 5-GHz radios will be reduced to 2x2 and Ethernet downgraded to 2.5 Gbps; in addition, the USB port will be off.
Available transmit power settings2.4 GHz •23 dBm (200 mW) •20 dBm (100 mW) •17 dBm (50 mW) •14 dBm (25 mW) •11 dBm (12.5 mW) •8 dBm (6.25 mW) •5 dBm (3.13 mW) •2 dBm (1.56 mW) • -1 dBm (0.78 mW) • -4 dBm (0.4 mW) • -6 dBm (0.25 mW) 5 GHz •26 dBm (400 mW) •23 dBm (200 mW) •20 dBm (100 mW) •17 dBm (50 mW) •14 dBm (25 mW) •11 dBm (12.5 mW) •8 dBm (6.25 mW) •5 dBm (3.13 mW) •2 dBm (1.56 mW) •-1 dBm (0.78 mW) • -4 dBm (0.4 mW)
Supported wireless LAN controllers•Cisco Catalyst 9800 Series Wireless Controllers •Cisco 3500, 5520, and 8540 Series Wireless Controllers and Cisco Virtual Wireless Controller
Frequency band and 20-MHz operating channelsH (Hregulatory domain): • 2.412 to 2.472 GHz; 13 channels •5.180 to 5.320 GHz; 8 channels •5.745 to 5.825 GHz; 5 channels
802.11n version 2.0 (and related) capabilities•8x8 MIMO with four spatial streams for 5-GHz band •4x4 MIMO with four spatial streams for 2.4-GHz band •Maximal Ratio Combining (MRC) •20- and 40-MHz channels • PHY data rates up to 600 Mbps (40 MHz with 5 GHz) •Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) •Cyclic Shift Diversity (CSD) support
Warranty3-Year Warranty

Key Features

  • OEM Genuine Component verified by certified technicians.
  • Clean serial number ready for service contract registration.
  • Electrostatic Discharge (ESD) safe packaging.
  • Supports hot-swapping for zero-downtime maintenance.

Frequently Asked Questions

Is this product genuine OEM?

Yes, this C9117AXI-H, Cisco Catalyst 9117AX Access Point, Wi-Fi 6/5.38Gbps/4x4 MU-MIMO (C9117AXI-H) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.

What warranty is included?

This C9117AXI-H, Cisco Catalyst 9117AX Access Point, Wi-Fi 6/5.38Gbps/4x4 MU-MIMO includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.

How long does shipping take?

We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.

Can I return this product?

Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.

Is the C9117AXI-H, Cisco Catalyst 9117AX Access Point, Wi-Fi 6/5.38Gbps/4x4 MU-MIMO compatible with my system?

Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the C9117AXI-H.
