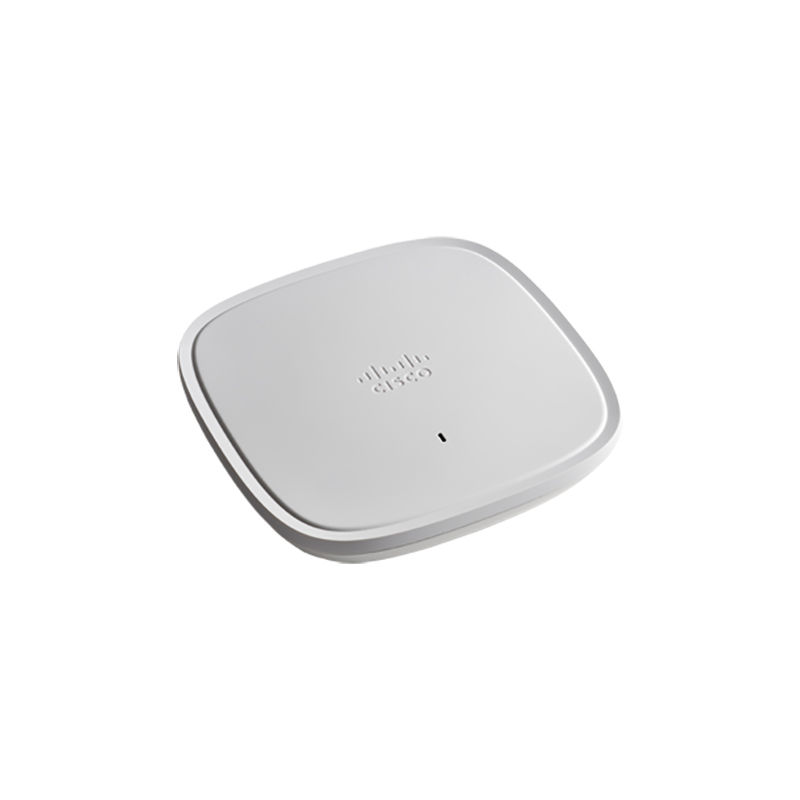

C9117AXI-B, Cisco Catalyst 9117AX Access Point, Wi-Fi 6/8x8:8 MIMO/Internal antenna

SKU: C9117AXI-B · MPN: C9117AXI-B · Category: Networking

C9117AXI-B, Cisco Catalyst 9117AX Access Point, Wi-Fi 6/8x8:8 MIMO/Internal antenna
$993.60
In Stock • 10 units

Cisco Catalyst 9117AX Access Point, Internal antenna; Wi-Fi 6; 8x8:8 MIMO, B Domain

View Networking Products

Specifications

DFS● 802.11 dynamic frequency selection (DFS)
Weight● 3.02 lb (1.4 kg)
802.11ac● 8x8 downlink MU-MIMO with eight spatial streams ● MRC ● 802.11ac beamforming ● 20-, 40-, 80, and 160-MHz channels ● PHY data rates up to 3.5 Gbps at 5 GHz ● Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) ● CSD support
802.11ax● 8x8 MIMO with eight spatial streams for 5-GHz band ● 4x4 MIMO with four spatial streams for 2.4-GHz band ● Downlink OFDMA ● TWT ● MRC ● 802.11ax beamforming ● 20-, 40-, 80, and 160-MHz channels ● PHY data rates up to 5 Gbps at 5 GHz ● Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) ● CSD support
Software● Cisco Unified Wireless Network Software Release 8.9 or later ● Cisco IOS ® XE Software Release 16.11 or later
WarrantyLimited lifetime hardware warranty
Indicators● Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors
Interfaces● 1x 100, 1000, 2500, 5000 Multigigabit Ethernet (RJ-45) – IEEE 802.3bz ● Management console port (RJ-45) ● USB 2.0 with up to 3.75W (enabled via future software)
DescriptionCisco Catalyst 9117AX Access Point, Internal antenna; Wi-Fi 6; 8x8:8 MIMO, B Domain
Environmental● Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C) ● Nonoperating (storage) altitude test: 25˚C, 15,000 ft. ● Operating temperature: 32° to 122°F (0° to 50°C) ● Operating humidity: 10% to 90% (noncondensing) ● Operating altitude test: 40˚C, 9843 ft.
System memory● 2048 MB DRAM ● 1024 MB flash
Integrated antenna● 2.4 GHz, peak gain 4 dBi, internal antenna, omnidirectional in azimuth ● 5 GHz, peak gain 6 dBi, internal antenna, omnidirectional in azimuth
Dimensions (W x L x H)● Access point (without mounting bracket and mounting features): 8.70 x 8.70 x 1.94 in. (22 x 22 x 4.93 cm) ● Access point (without mounting bracket): 8.70 x 8.70 x 2.19 in. (22 x 22 x 5.56 cm)
Input power requirements● 802.3at Power over Ethernet Plus (PoE+), 802.3bt Cisco Universal PoE (Cisco UPOE+, Cisco UPOE ®) ● Cisco power injector, AIR-PWRINJ6= ● 802.3af PoE ● Cisco power injector, AIR-PWRINJ5= (Note: This injector supports only 802.3af) Note: When 802.3af PoE is the source of power, both 2.4-GHz and 5-GHz radios will be reduced to 2x2 and Ethernet downgraded to 2.5 Gbps; in addition, the USB port will be off.
Available transmit power settings2.4 GHz ● 23 dBm (200 mW) ● 20 dBm (100 mW) ● 17 dBm (50 mW) ● 14 dBm (25 mW) ● 11 dBm (12.5 mW) ● 8 dBm (6.25 mW) ● 5 dBm (3.13 mW) ● 2 dBm (1.56 mW) ● -1 dBm (0.78 mW) ● -4 dBm (0.4 mW) ● -6 dBm (0.25 mW) 5 GHz ● 26 dBm (400 mW) ● 23 dBm (200 mW) ● 20 dBm (100 mW) ● 17 dBm (50 mW) ● 14 dBm (25 mW) ● 11 dBm (12.5 mW) ● 8 dBm (6.25 mW) ● 5 dBm (3.13 mW) ● 2 dBm (1.56 mW) ● -1 dBm (0.78 mW) ● -4 dBm (0.4 mW)
Supported wireless LAN controllers● Cisco Catalyst 9800 Series Wireless Controllers ● Cisco 3500, 5520, and 8540 Series Wireless Controllers, and Cisco Virtual Wireless Controller
Frequency band and 20-MHz operating channelsB (B regulatory domain): ● 2.412 to 2.462 GHz; 11 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.500 to 5.700 GHz; 11 channels ● 5.745 to 5.865 GHz; 7 channels
802.11n version 2.0 (and related) capabilities● 8x8 MIMO with four spatial streams for 5-GHz band ● 4x4 MIMO with four spatial streams for 2.4-GHz band ● Maximal Ratio Combining (MRC) ● 20- and 40-MHz channels ● PHY data rates up to 600 Mbps (40 MHz with 5 GHz) ● Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) ● Cyclic Shift Diversity (CSD) support
Warranty3-Year Warranty

Key Features

  • OEM Genuine Component verified by certified technicians.
  • Clean serial number ready for service contract registration.
  • Electrostatic Discharge (ESD) safe packaging.
  • Supports hot-swapping for zero-downtime maintenance.

Frequently Asked Questions

Is this product genuine OEM?

Yes, this C9117AXI-B, Cisco Catalyst 9117AX Access Point, Wi-Fi 6/8x8:8 MIMO/Internal antenna (C9117AXI-B) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.

What warranty is included?

This C9117AXI-B, Cisco Catalyst 9117AX Access Point, Wi-Fi 6/8x8:8 MIMO/Internal antenna includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.

How long does shipping take?

We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.

Can I return this product?

Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.

Is the C9117AXI-B, Cisco Catalyst 9117AX Access Point, Wi-Fi 6/8x8:8 MIMO/Internal antenna compatible with my system?

Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the C9117AXI-B.
