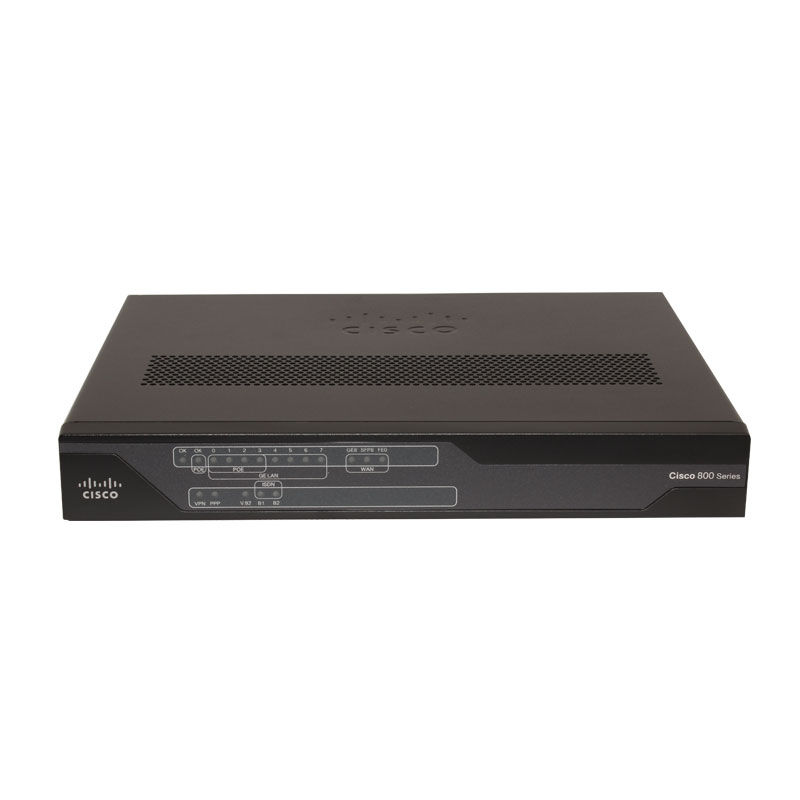

C891F-K9, Cisco C890 Series Router, 1 SFP/4 POE/Wireless Controller
Brand: Cisco · SKU: C891F-K9 · MPN: C891F-K9 · Category: Networking
$303.60
In Stock • 10 units
Cisco 891F Gigabit Ethernet security router with SFP
Specifications
| WAN | 鈼?nbsp; Refer to Table 2 for details |
|---|---|
| IPv6 | 鈼?nbsp; IPv6 addressing architecture 鈼?nbsp; IPv6 name resolution 鈼?nbsp; IPv6 statistics 鈼?nbsp; IPv6 translation: Transport packets between IPv6-only and IPv4-only endpoints (NAT-Protocol Translation) 鈼?nbsp; Internet Control Message Protocol Version 6 (ICMPv6) 鈼?nbsp; IPv6 DHCP 鈼?nbsp; OSPFv3 鈼?nbsp; BGP4+ 鈼?nbsp; IPv6 path maximum transmission unit (PMTU) 鈼?nbsp; IPv6 Neighbor Discovery 鈼?nbsp; IPv6 stateless address autoconfiguration (SLAAC) 鈼?nbsp; IPv6 Multicast Routing |
| xDSL | 鈼?nbsp; True Multimode VDSL2 and ADSL2+ over Annex A, B, J, and M including traditional G.DMT and T1.413 鈼?nbsp; World-class interoperability with industry-standard DSL access multiplexer (DSLAM) chipsets 鈼?nbsp; Highest field reliability with Impulse Noise Protection over REIN/SHINE, Extended INP-Delay, G.INP, Physical Layer Retransmission, SRA, and Bitswap 鈼?nbsp; VDSL2 Persistent Storage Device (PSD) profiles up to 17a/b with support for Spectral Shaping 鈼?nbsp; VDSL2 Vectoring to offer blazing fiber speeds over copper 鈼?nbsp; Support for 4-pair multimode G.SHDSL; that is, ATM and EFM 鈼?nbsp; Remote management with TR069 and CWMP 鈼?nbsp; Investment protection with GE and SFP for future fiber that could replace xDSL deployment |
| Model | C891F-K9 |
| Weight | 4.97 kg |
| USB 2.0 | 鈼?nbsp; One USB 2.0 port available on Cisco 892FSP, 896VA, 897VA, 897VAB, 898EA, 891F, and 891-24X 鈼?nbsp; USB devices supported: 鈼?nbsp; USB flash memory |
| Inline PoE | 鈼?nbsp; Optional internal adapter for inline PoE on 4 switch ports for IP phones or external wireless access points; 802.3af-compliant and Cisco PoE-compliant 鈼?nbsp; No PoE support on Cisco 892FSP |
| LAN switch | 鈼?nbsp; Refer to Table 2 for details |
| Management | 鈼?nbsp; Cisco Configuration Professional 鈼?nbsp; Cisco Configuration Express 鈼?nbsp; Cisco Configuration Engine support 鈼?nbsp; Cisco AutoInstall 鈼?nbsp; Cisco IP Service-Level Agreement (IP SLA) 鈼?nbsp; Cisco IOS Embedded Event Manager (EEM) 鈼?nbsp; CiscoWorks 鈼?nbsp; Cisco Security Manager 鈼?nbsp; Telnet, Simple Network Management Protocol Version 3 (SNMPv3), Secure Shell (SSH) Protocol, command-line interface (CLI), and HTTP management 鈼?nbsp; RADIUS and TACACS+ 鈼?nbsp; Out-of-band management with ISDN S/T port or external modem through a virtual auxiliary port on models supporting those interfaces; refer to Table 2 for details 鈼?nbsp; Cisco Wireless Control System (WCS) for management of unified access points in models supporting WLAN; on models supporting WLAN, refer to Table 2 for details |
| ISDN BRI S/T | 鈼?nbsp; Refer to Table 2 for details |
| WLAN hardware | 鈼?nbsp; Support for Cisco CleanAir technology on Cisco 897 and 891F 鈼?nbsp; Automatic rate selection for 802.11a/g/n 鈼?nbsp; Noncaptive RPTNC omnidirectional dipole antennae; 2-dBi gain @ 2.4GHz, 5-dBi gain @ 5GHz 鈼?nbsp; 2 x 3 multiple input, multiple output (MIMO) radio operation 鈼?nbsp; Wi-Fi 802.11n Draft v2.0 certified |
| Certifications | Note: Due to new FCC WiFi June 2016 regulation (FCC rules for part 15.409), the WLAN radio used in the ISR's (specifically C819 –A WiFi Domain with AP802 dual 802.11 radio) Cisco will be issuing a new grant for the 5GHz dual 802.11n radio. The specific reason for the change is due to the inability of the radio to detect the various radar pulses (DFS function) over the entire bandwidth of the channels in the 5250-5350 and the 5500-5700 A radio channel bands (which will be disabled). As a consequence the radio will now operate from 5150-5250 and 5745-5850 A radio bands. This will provide a total of nine channels in the 5GHz range. |
| LAN Interfaces | 8-port 10-/100-/1000-Mbps managed switch (4鈥憄orts PoE capable with 125W power supply adapter) |
| Metro Ethernet | 鈼?nbsp; Ethernet OA&M 鈼?nbsp; Ethernet Local Management Interface (E-LMI) 鈼?nbsp; IP SLA for Ethernet |
| WAN Interfaces | 1-port GE or 1鈥憄ort SFP 1-port FE |
| Wireless VLANs | 鈼?nbsp; 14 (encrypted and nonencrypted VLANs) |
| Switch features | 鈼?nbsp; Auto Media Device In/Media Device Cross Over (MDI-MDX) 鈼?nbsp; 25 802.1QVLANs 鈼?nbsp; MAC filtering 鈼?nbsp; Four-port 802.3af and Cisco compliant PoE 鈼?nbsp; Switched Port Analyzer (SPAN) 鈼?nbsp; Storm Control 鈼?nbsp; Smart ports 鈼?nbsp; Secure MAC address 鈼?nbsp; Internet Group Management Protocol Version 3 (IGMPv3) snooping 鈼?nbsp; 802.1x |
| High availability | 鈼?nbsp; Virtual Router Redundancy Protocol (VRRP) (RFC 2338) 鈼?nbsp; HSRP 鈼?nbsp; MHSRP 鈼?nbsp; Dial backup with external modem through virtual auxiliary port 鈼?nbsp; Dial backup with ISDN S/T or V.92 Analog modem port |
| Security features | Secure connectivity: 鈼?nbsp; Secure Sockets Layer (SSL) VPN for secure remote access 鈼?nbsp; Hardware-accelerated DES, 3DES, AES 128, AES 192, and AES 256 鈼?nbsp; Public-key-infrastructure (PKI) support 鈼?nbsp; Fifty IPsec tunnels 鈼?nbsp; Cisco Easy VPN Client and Server 鈼?nbsp; NAT transparency 鈼?nbsp; Dynamic Multipoint VPN (DMVPN) 鈼?nbsp; Tunnel-less Group Encrypted Transport VPN 鈼?nbsp; VRF-aware IPsec 鈼?nbsp; IPsec over IPv6 鈼?nbsp; Adaptive control technology 鈼?nbsp; Session Initiation Protocol (SIP) application-layer gateway 鈼?nbsp; Cisco IOS Firewall: 鈼?nbsp; Zone-Based Policy Firewall 鈼?nbsp; VRF-aware stateful inspection routing firewall 鈼?nbsp; Stateful inspection transparent firewall 鈼?nbsp; Advanced application inspection and control 鈼?nbsp; Secure HTTP (HTTPS), FTP, and Telnet Authentication Proxy 鈼?nbsp; Dynamic and static port security 鈼?nbsp; Firewall stateful failover 鈼?nbsp; VRF-aware firewall 鈼?nbsp; Cisco ScanSafe Connector 鈼?nbsp; Cisco IOS Software black and white lists 鈼?nbsp; Integrated threat control: 鈼?nbsp; Intrusion Prevention System (IPS) 鈼?nbsp; Control Plane Policing 鈼?nbsp; Flexible Packet Matching 鈼?nbsp; Network foundation protection |
| 802.11a/g/n Option | Yes Cisco CleanAir technology |
| IP and IP services | 鈼?nbsp; Routing Information Protocol Versions 1 and 2 (RIPv1 and RIPv2) 鈼?nbsp; Generic routing encapsulation (GRE) and multipoint GRE (MGRE) 鈼?nbsp; Cisco Express Forwarding 鈼?nbsp; Standard 802.1d Spanning Tree Protocol 鈼?nbsp; Layer 2 Tunneling Protocol (L2TP) 鈼?nbsp; Layer 2 Tunneling Protocol Version 3 (L2TPv3) 鈼?nbsp; Network Address Translation (NAT) 鈼?nbsp; Dynamic Host Configuration Protocol (DHCP) server, relay, and client 鈼?nbsp; Dynamic Domain Name System (DNS) 鈼?nbsp; DNS Proxy 鈼?nbsp; DNS Spoofing 鈼?nbsp; Access control lists (ACLs) 鈼?nbsp; IPv4 and IPv6 Multicast 鈼?nbsp; Open Shortest Path First (OSPF) 鈼?nbsp; Border Gateway Protocol (BGP) 鈼?nbsp; Performance Routing (PfR) 鈼?nbsp; Enhanced Interior Gateway Routing Protocol (EIGRP) 鈼?nbsp; Virtual Route Forwarding (VRF) Lite 鈼?nbsp; Next Hop Resolution Protocol (NHRP) 鈼?nbsp; Bidirectional Forwarding Detection (BFD) 鈼?nbsp; Web Cache Communication Protocol (WCCP) |
| Data rates supported | 鈼?nbsp; 802.11a: 6, 9, 12, 18, 24, 36, 48, and 54Mbps 鈼?nbsp; 802.11b: 1, 2, 5.5, 6, 9, and 11Mbps 鈼?nbsp; 802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54Mbps 鈼?nbsp; 802.11n: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54, and m0-m15 |
| External power supply | Product power specifications: 鈼?nbsp; AC input voltage: Universal 100 to 240 VAC 鈼?nbsp; Frequency: 50 to 60 Hz 鈼?nbsp; Maximum output power: 60W 鈼?nbsp; Output voltages: 12 VDC 鈼?nbsp; Optional PoE: 鈼?nbsp; Separate 80W PoE power supply for Cisco 891 and 892 ISRs 鈼?nbsp; Single 125W power supply required for Cisco 896, 897, 898, and 891F for router and PoE 鈼?nbsp; The Cisco 891-24X uses the internal power supply for PoE 鈼?nbsp; External output voltage: 48 VDC |
| Integrated Dial Backup | V.92 analog modem ISDN BRI |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this C891F-K9, Cisco C890 Series Router, 1 SFP/4 POE/Wireless Controller (C891F-K9) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This C891F-K9, Cisco C890 Series Router, 1 SFP/4 POE/Wireless Controller includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the C891F-K9, Cisco C890 Series Router, 1 SFP/4 POE/Wireless Controller compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the C891F-K9.
