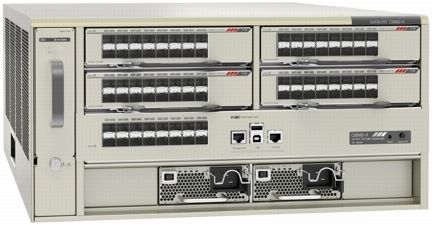

C6880-X-LE, Cisco Catalyst 6800 Switch, 5RU Chassis/Super 2T Engine/No PS & Fan
Brand: Cisco · SKU: C6880-X-LE · MPN: C6880-X-LE · Category: Networking
Cisco Catalyst 6880-X-Chassis (Standard Tables)
Specifications
| EMC | FCC Part 15 (CFR 47) Class A VCCI Class A EN55022 Class A CISPR 22 Class A CE marking AS/NZS 3548 Class A ETS300 386 EN55024 EN61000-6-1 EN50082-1 |
|---|---|
| Model | C6880-X-LE |
| Inches | 8.75x 17.35 x 23 |
| Safety | UL 60950 Second Edition CAN/CSA-C22.2 No. 60950 Second Edition EN 60950 Second Edition IEC 60950 Second Edition AS/NZS 60950 |
| Weight | 50 kg |
| NEBS/ETSI | GR-1089-Core NEBS Level 3 ETS 300 019 Storage Class 1.1 ETS 300 019 Transportation Class 2.3 ETS 300 019 Stationary Use Class 3.1 |
| Centimeters | 22.23 X 44.07 X 58.42 |
| Performance | The chassis is capable of supporting up to 220Gbps per port card slot. The 16 port 10G port cards and the base module will support 80Gbps. |
| Input Voltage | 100 to 240 VAC -48 to -60 VDC |
| Rack units (RU) | 4.85 |
| Relative Humidity | Ambient (noncondensing) operating: 5% to 90% Ambient (noncondensing) nonoperating and storage: 5% to 95% |
| Network Management | ETHERLIKE-MIB (RFC 1643) IP-MIB and IP-FORWARD-MIB for IPv6 IF-MIB (RFC 1573) Bridge MIB (RFC 1493) CISCO-STACK-MIB CISCO-VTP-MIB CISCO-CDP-MIB RMON MIB (RFC 1757) CISCO-PAGP-MIB CISCO-STP-EXTENSIONS-MIB CISCO-VLAN-BRIDGE-MIB CISCO-VLAN-MEMBERSHIP-MIB ENTITY-MIB (RFC 2037) HC-RMON RFC1213-MIB (MIB-II) SMON-MIB |
| Operating Altitude | Certified for operation: 0 to 6500 ft (0 to 2000 m) Designed and tested for operation: -200 to 10,000 ft (-60 to 3000 m) |
| Switching Capacity | Up to 2Tbps |
| Thermal Transition | 0.5°C per minute (hot to cold) 0.33°C per minute (cold to hot) |
| Storage Temperature | -4 to 149°F (-20 to 65°C) |
| Module Compatibility | All modules based on the software release in the system |
| Operating Temperature | 32°F to 104°F (0 to 40°C) |
| Number of port card slots | 4 |
| Maximum Port Density (VSS) | Up to 158x 10 Gigabit Ethernet ports Up to 158x 1 Gigabit Ethernet ports |
| Power Supply Compatibility | AC: 3000W, DC: 3000W |
| Maximum Port Density Per Chassis | Up to 80 x 10 Gigabit Ethernet ports Up to 80x 1 Gigabit Ethernet ports |
| ATIS Pb free and Energy efficiency | ATIS-0600020.2010 Pb Free circuit packs ATIS-0600015-2009 General Energy Efficiency Requirements (TEER) ATIS-0600015.03-2009 Switch and Router Energy Efficiency ATIS-0600015.01-2009 Server Energy Efficiency VZ.TPR.9205 Verizon Energy Efficiency Requirements for Telecommunication Equipment (TEEER) |
| Online Insertion and Removal (OIR) | OIR supported for redundant power supplies and port cards. |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this C6880-X-LE, Cisco Catalyst 6800 Switch, 5RU Chassis/Super 2T Engine/No PS & Fan (C6880-X-LE) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This C6880-X-LE, Cisco Catalyst 6800 Switch, 5RU Chassis/Super 2T Engine/No PS & Fan includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the C6880-X-LE, Cisco Catalyst 6800 Switch, 5RU Chassis/Super 2T Engine/No PS & Fan compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the C6880-X-LE.
