SuperMicro C2SBC-Q-B LGA775 Intel Q35 ATX Server Motherboard DDR2
Brand: Supermicro · SKU: C2SBC-Q-B · MPN: MBD-C2SBC-Q-B · Category: Servers

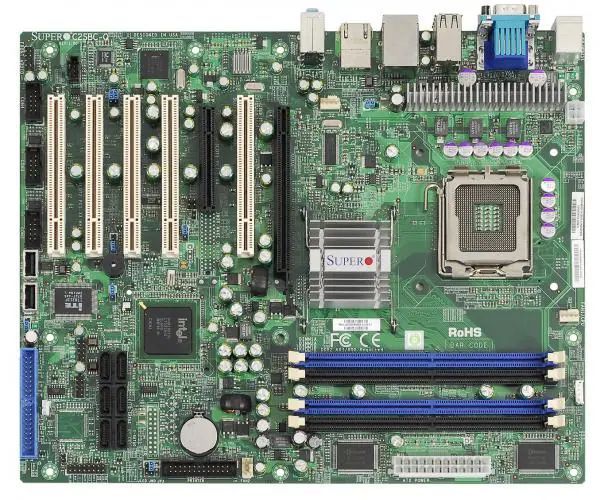

The Supermicro C2SBC-Q-B is an ATX server motherboard featuring the Intel Q35 chipset and supporting LGA775 processors, including Intel Core 2 Extreme, Core 2 Quad, and Core 2 Duo series, with Front Side Bus (FSB) speeds of 1333/1066/800 MHz. It supports up to 8GB of dual-channel, unbuffered, non-ECC DDR2 800/667 SDRAM across four DIMM slots. For connectivity, it includes dual Gigabit Ethernet LAN ports (1x Intel 82566DM + 1x Intel 82573L), a built-in SATA2 controller with support for 6x SATA (3Gbps) drives, 12 USB 2.0 ports (6 rear, 6 via headers), 1 VGA port, and 4 COM Ports (1 rear, 3 headers). Expansion is provided by 1 PCI-E 3.0 x16 slot, 1 PCI-E 3.0 x4 slot (in an x8 physical slot), and 5 standard PCI slots. Audio is High Definition 5.1 Channel Audio, built on the Realtek ALC883 codec. The board supports RAID levels 0, 1, 5, and 1+0. It features PC health monitoring for fans, temperature, and voltage, and includes enhanced security and power management features like TM2 support a
Specifications
| Chipset | Intel Q35 + ICH9DO |
|---|---|
| LAN Ports | Dual Gigabit Ethernet |
| PCI Slots | 5x PCI |
| USB Ports | 12x USB 2.0 |
| Max Memory | 8 GB |
| SATA Ports | 6x SATA 3.0 Gbps (SATA2) |
| Form Factor | ATX |
| Memory Type | DDR2 SDRAM (Unbuffered, Non-ECC) |
| PCI-E Slots | 1x PCIe x16, 1x PCIe x4 (in x8 slot) |
| RAID Levels | 0, 1, 5, 1+0 |
| Socket Type | LGA775 (Socket T) |
| Memory Slots | 4x DIMM |
| Memory Speed | 800/667 MHz |
| Audio Channels | 5.1 Channel HD Audio (Realtek ALC883) |
| Processor Support | Intel Core 2 Extreme, Quad, Duo, Celeron |
| Warranty | Not explicitly found, typically subject to retailer/distributor policy for EOL products. |
| Weight | 12.00 LBS |
| Dimensions | 12" x 9.6" |
Key Features
The Supermicro C2SBC-Q-B is a robust ATX server motherboard built around the Intel Q35 chipset, designed for high performance and efficiency. It features an LGA775 socket compatible with a range of Intel Core 2 processors and supports up to 8GB of DDR2 memory. Key features include dual Intel Gigabit LAN, 6 SATA 3Gbps ports with RAID support, and comprehensive expansion options with PCIe and PCI slots.
