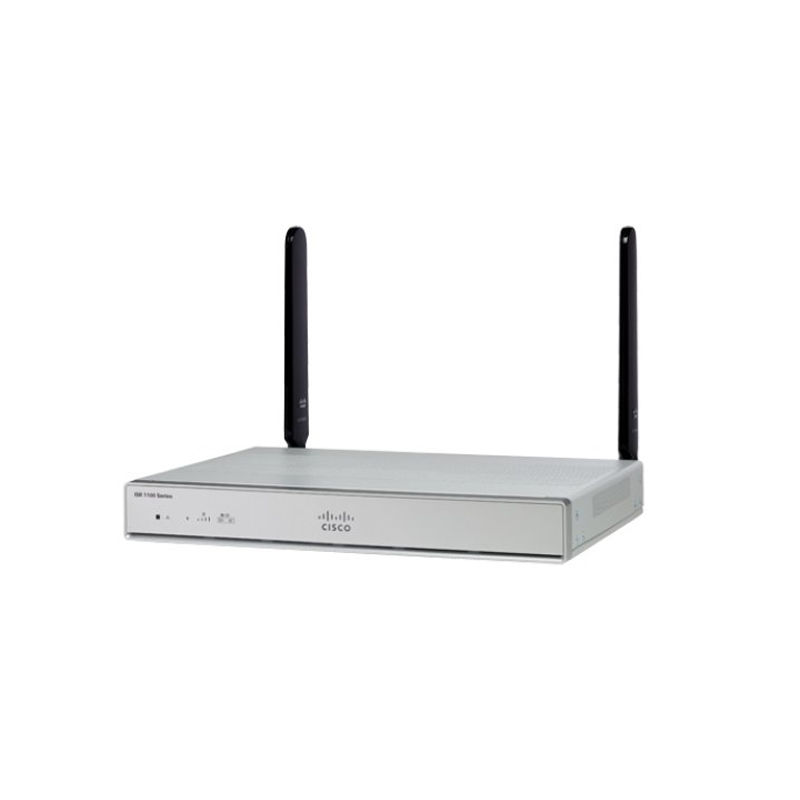

C1127X-8PLTEP, Cisco ISR 1100X Router, 8xGE/Pluggable LTE/GPS

SKU: C1127X-8PLTEP · MPN: C1127X-8PLTEP · Category: Networking

C1127X-8PLTEP, Cisco ISR 1100X Router, 8xGE/Pluggable LTE/GPS
Request for Quote
In Stock • 10 units

ISR 1100X 8P xDSL GE SFP Router Pluggable SMS/GPS

View Networking Products

Specifications

EDs•WWAN (green/amber). •SIM status (green/amber). •Received signal strength indication (RSSI) bar (green). •3G/LTE service (green/amber). •GPS (green/amber). •Speed and link for Gigabit Ethernet WAN port (green). •Speed and link for all Fast Ethernet LAN ports (green).
PoE4
PoE+2
LAN GE8
WAN GE1
Console•Micro USB console (Type A). •RJ45.
USB 3.0•USB devices supported: -USB eTokens and USB flash memory •Devices USB 3.0 supports to be connected externally. View the USB Device Support Data Sheet.
802.11ac•2x2 SU-MIMO/MU-MIMO with two spatial streams. •Maximal Ratio Combining (MRC). •20-, 40-, and 80-MHz channels. •PHY data rates up to 866.7 Mbps (80 MHz on 5 GHz). •Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Rx). •802.11 Dynamic Frequency Selection (DFS). •Cyclic Shift Diversity (CSD) support.
Software•Cisco IOS Software feature set: Universal Cisco IOS XE 16.6.1 Software image or later. C1112, C1113, and C1101 models support starting with IOS XE 16.8.1 Software image or later. C1118, C1111X-8P and C1109 models support with IOS XE 16.9.1 Software image or later. •Cisco IOS Software feature set: C1120 and C1160 models Universal Cisco IOS XE 16.11.1 Software image or later. •Cisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.5 (migration to 8.8 starting March, 2019 and 8.8 for 1101 and 1109 Models) MR1 or later.
Inline PoE•Optional internal adapter for inline PoE on 4 switch ports for IP phones or external wireless access points; 802.3af-compliant PoE or 802.3at-compliant PoE+.
PluggablesYes (All)
ADSL2/VDSL2+NA
EMC immunity•EN55024/CISPR24, (EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-11), and EN300-386.
Product CodeC1127X-8PLTEP
EMC emissions•EN55022/CISPR22, CFR 47 Part 15, ICES003, VCCI-V-3, AS/NZS CISPR22, CNS13438, EN300-386, EN61000-3-2, EN61000-3-3, and EN61000-6-1.
Cellular radio•EN 301 908-1, EN 301 908-2, EN 301 511, 47 CFR Part 22, 47 CFR Part 24, and EN 301 908-13.
Radio immunity•EN301 489-1, EN 301 489-7, and EN301 489-24.
Wi-Fi 802.11acNA
Maximum clients•Maximum number of associated wireless clients: 200 per Wi-Fi radio; in total 400 clients per access point. C1109-4PLTEP and C1109-4PLTEW models come with default dual W-ANTM2050D-RPSMA external antenna and all modem have default 8.8 AP autonomous or Mobility Express release. Option to select 8.8 CAPWAP WLC image.
WLAN interfaces•Multiuser Multiple-Input Multiple-Output (MU-MIMO) allows transmission of data to multiple 802.11ac Wave 2 – capable clients simultaneously to improve the client experience. Prior to MU-MIMO, 802.11n and •802.11ac Wave 1 access points could transmit data to only one client at a time, typically referred to as Single-User MIMO (SU-MIMO). •802.11ac Wave 2 with 2x2:2 MIMO technology uses two spatial streams when operating in SU-MIMO or MU-MIMO mode, offering 867-Mbps rates for more capacity and reliability than competing access points. •Flexible deployment through the Mobility Express solution is ideal for small to medium-sized deployments. Easy setup allows the 1000 Series (similar to 1815i) to be deployed on networks without a physical controller. •For more information, view the Cisco Aironet 1815i Access Point Data Sheet.
WAN GE/SFP combo1 ADSL2/VDSL2 + (Annex A)
LTE Advanced (CAT6)Yes with Pluggable Technology
Product DescriptionISR 1100X 8P xDSL GE SFP Router Pluggable SMS/GPS
External power supplyProduct power specifications: C111X, C1120 and C1160 Models •AC input voltage: Universal 100 to 240 VAC. •Frequency: 50 to 60 Hz. •Maximum output power: 66W (default). •Output voltages: 12 VDC. •Optional PoE and PoE+: -Single 150W power supply required for Cisco 1100-8P series router -Single 115W power supply required for Cisco 1100-4P series router •External output voltage: 48 VDC. C1101-4PLTEPWX and C1109-4PLTE2PWX Models: •AC input voltage: Universal 100 to 240 VAC. •Frequency: 50 to 60 Hz. •Maximum output power: 66W (default iTemp for C1109-4PLTE2PWX Models). •Output voltages: 12 VDC. C1101-4P, C1101-4PLTEP,C1109-2PLTE, and C1109-4PLTE2P Models: •AC input voltage: Universal 100 to 240 VAC. •Frequency: 50 to 60 Hz. •Maximum output power: 30W (default iTemp for Models). •Output voltages: 12 VDC.
Warranty3-Year Warranty

Key Features

  • OEM Genuine Component verified by certified technicians.
  • Clean serial number ready for service contract registration.
  • Electrostatic Discharge (ESD) safe packaging.
  • Supports hot-swapping for zero-downtime maintenance.

Frequently Asked Questions

Is this product genuine OEM?

Yes, this C1127X-8PLTEP, Cisco ISR 1100X Router, 8xGE/Pluggable LTE/GPS (C1127X-8PLTEP) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.

What warranty is included?

This C1127X-8PLTEP, Cisco ISR 1100X Router, 8xGE/Pluggable LTE/GPS includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.

How long does shipping take?

We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.

Can I return this product?

Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.

Is the C1127X-8PLTEP, Cisco ISR 1100X Router, 8xGE/Pluggable LTE/GPS compatible with my system?

Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the C1127X-8PLTEP.
