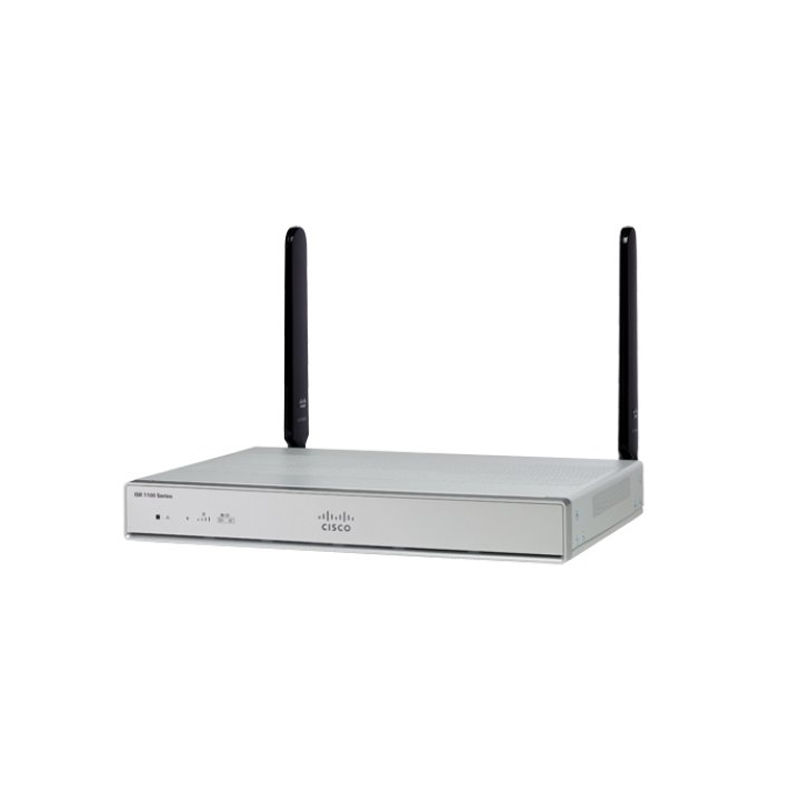

C1121-4P, Cisco ISR 1100 Router, 4xGE SFP/2xWAN/8GB DRAM
Brand: Cisco · SKU: C1121-4P · MPN: C1121-4P · Category: Networking
Specifications
| LEDs | WWAN (green/amber) SIM status (green/amber) RSSI bar (green) 3G/LTE service (green/amber) GPS (green/amber) Speed and link for Gigabit Ethernet WAN port (green) Speed and link for all Fast Ethernet LAN ports (green) |
|---|---|
| Model | C1121-4P |
| Console | Micro USB console (Type A) RJ45 |
| USB 3.0 | USB eTokens and USB flash memory View the USB Device Support Data Sheet for details |
| 802.11ac | 2x2 SU-MIMO/MU-MIMO with two spatial streams Maximal Ratio Combining (MRC) 20-, 40-, and 80-MHz channels PHY data rates up to 866.7 Mbps (80 MHz on 5 GHz) Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Rx) 802.11 Dynamic Frequency Selection (DFS) Cyclic Shift Diversity (CSD) support |
| Software | Cisco IOS XE 16.6.1 Software image or later Specific models have different IOS XE support versions |
| Inline PoE | Optional internal adapter for inline PoE on 4 switch ports; 802.3af-compliant PoE or 802.3at-compliant PoE+ |
| EMC immunity | EN55024/CISPR24, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-11, EN300-386 |
| EMC emissions | EN55022/CISPR22, CFR 47 Part 15, ICES003, VCCI-V-3, AS/NZS CISPR22, CNS13438, EN300-386, EN61000-3-2, EN61000-3-3, EN61000-6-1 |
| Cellular radio | EN 301 908-1, EN 301 908-2, EN 301 511, 47 CFR Part 22, 47 CFR Part 24, EN 301 908-13 |
| Radio immunity | EN301 489-1, EN 301 489-7, EN301 489-24 |
| Maximum clients | Maximum number of associated wireless clients: 200 per Wi-Fi radio; in total 400 clients per access point. C1109-4PLTEP and C1109-4PLTEW models come with default dual W-ANTM2050D-RPSMA external antenna and all modem have default 8.8 AP autonomous or Mobility Express release. |
| WLAN interfaces | Multiuser Multiple-Input Multiple-Output (MU-MIMO) allows transmission of data to multiple 802.11ac Wave 2 clients simultaneously 802.11ac Wave 2 with 2x2:2 MIMO technology offers 867 Mbps rates Flexible deployment through the Mobility Express solution For more information, view the Cisco Aironet 1815i Access Point Data Sheet |
| Product Description | ISR 1100 4P Dual GE SFP Router |
| External power supply | AC input voltage: Universal 100 to 240 VAC Frequency: 50 to 60 Hz Maximum output power: 66W or 115W depending on model Output voltages: 12 VDC, 48 VDC (optional PoE and PoE+) |
| Micro-USB port (reserved) | Micro-USB port to support remote LTE diagnostics and monitoring tools (Qualcomm CAIT and Spirent UDM) (USB 3.0) |
| Authentication and security | AES for Wi-Fi Protected Access 2 (WPA2) 802.1X, RADIUS AAA 802.11r and 802.11i |
| Memory (default and maximum) | DRAM: 4 GB Flash: 4 GB Models with 8GB DRAM and Flash: C1111X-8P, C1121X-8P, C1126X, C1127X, C1161X |
| Environmental operating range | Nonoperating temperature: -4°F to 149°F (-20°C to 65°C) Nonoperating humidity: 5% to 95% (noncondensing) Nonoperating altitude: 0 to 15,000 ft (0 to 4570 m) Operating temperature: 32°F to 104°F (0°C to 40°C) Operating humidity: 10% to 85% (noncondensing) Operating altitude: 0 to 10,000 ft (0 to 3000 m at 30°C) |
| Standard safety certifications | UL 60950-1, EN 60950-1 CAN/CSA C22.2 No. 60950-1 CB to IEC 60950-1, 2nd edition with all group differences and national deviations |
| Physical dimensions (H x W x D) | C111X Models: 1.75 x 12.7 x 9.6 in (LTE models), 1.75 x 12.7 x 9.03 in (non-LTE models) C1120 Models: 1.65 x 12.7 x 8.9 in C1160 Models: 1.65 x 10.8 x 7.85 in C1101-4PLTEP and C1101-4PLTEPWX Models: 1.73 x 9.75 x 6.6 in C1101-4P Models: 1.1 x 7.5 x 6.0 in C1109-2PLTE Models: 1.27 x 8.4 x 6.0 in C1109-4PLTE2P and C1109-4PLTE2PWX Models: 1.71 x 11.16 x 9.8 in Pluggable: 0.85 x 2.5 x 3.88 in |
| Serial WAN interface and protocol | Support for both synchronous and bisync modes Synchronous maximum speed of up to 8 Mbps Support for network clock synchronization EIA-232, EIA-449, EIA-530, EIA-530A, V.35, and X.21 |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this C1121-4P, Cisco ISR 1100 Router, 4xGE SFP/2xWAN/8GB DRAM (C1121-4P) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This C1121-4P, Cisco ISR 1100 Router, 4xGE SFP/2xWAN/8GB DRAM includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the C1121-4P, Cisco ISR 1100 Router, 4xGE SFP/2xWAN/8GB DRAM compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the C1121-4P.
