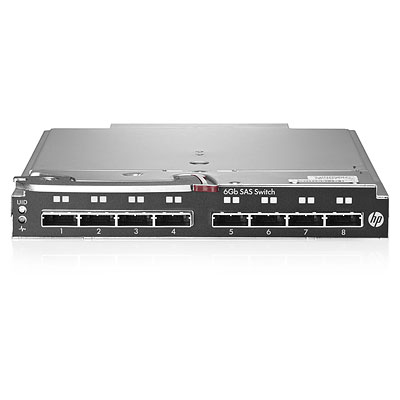

HP 6Gb SAS Switch Dual Pack network switch module
Brand: HP · SKU: BK764A.NS · MPN: BK764A.NS · Category: Networking
HP 6Gb SAS Switch Dual Pack, Serial Attached SCSI (SAS), 6 Gbit/s, BL2x 220c BL280c/BL420c BL460c BL465c BL490c BL620c BL680c BL685c c3000 c7000 BL860 ..., 40 W, 368.3 x 509.5 x 60.5 mm, 3.13 kg
Specifications
| Weight | 3.13 kg |
|---|---|
| I/O ports | 16x SAS 8x Mini-SAS |
| Compatibility | BL2x 220c BL280c/BL420c BL460c BL465c BL490c BL620c BL680c BL685c c3000 c7000 BL860 BL870 BL890 |
| Hot-Plug support | Yes |
| Dimensions (WxDxH) | 368.3 x 509.5 x 60.5 mm |
| Switching capacity | 6 Gbit/s |
| Supported protocols | Serial Attached SCSI (SAS) |
| Power consumption (typical) | 40 W |
| Warranty | 3-Year Warranty |
| Weight | 3.13 kg |
Product Description
The HP 6Gb SAS BL Switch for HP BladeSystem c-Class enclosures is an integral part of HP direct connect SAS storage, enabling a shared SAS storage solution. The SAS architecture combines a P711m, P712m (with cache module) or P721m Smart Array in each server and 6Gb/s SAS BL switches connected to supported HP storage enclosures for SAS storage. The 6 Gb/s SAS BL Switch contains an embedded Virtual SAS Manager (VSM) GUI & CLI interface used to zone, monitor, and update SAS fabric devices What's new - Support for HP Smart Array P721m Controller and MDS600, D2000 (D2600/D2700) and D6000. (Requires firmware upgrade, please refer QuickSpecs) - SAS fabric Topology View allows users to easily view their SAS fabric connectivity - View unzoned hard drive information (capacity, RPM, link rate, etc.) while creating zone groups - Advanced tape support - port splitting allows up to 4 tape devices to attach to a single SAS switch port - SAS switch web interface allows the capture and deployment of configuration scripts - Full SNMP support for SAS switch and attached storage enclosures. Detailed diagnostic information provided for MDS600 field issues Features More External Storage for c-Class Enclosures - Enables servers within the c-Class BladeSystem enclosure to share storage on an P2000 G3 SAS array system, without the need for an external SAN infrastructure. Increases storage utilization, flexibility, and enables full virtualization without a SAN. - Or use the flexible SAS architecture for cost-effective in-rack zoned storage using the MDS600 or D6000. MDS600 or D6000 drives are assigned to specific blade servers so they appear as local storage to that server. - Dual Domain direct attached SAS architecture supported with MDS600, D6000 or D2000. - 6 Gb/s SAS performance, without the infrastructure expense. Not all data requirements need the top performance and availability of a backend Fibre Channel SAN. Simplified Management - Centralizes control and reduces storage management cost. Management tools and software included in the price. - Use the Virtual SAS Manager (VSM) 6Gb/s SAS BL switch to dynamically assign drives to each BladeSystem server, on the fly, without complex configuration or re-cabling. Highly Available, Cost-effective External Storage - Redundant SAS switches are active, if one fails the second takes over the entire workload.
Key Features
HP 6Gb SAS Switch Dual Pack. Supported protocols: Serial Attached SCSI (SAS). Switching capacity: 6 Gbit/s. Compatibility: BL2x 220c BL280c/BL420c BL460c BL465c BL490c BL620c BL680c BL685c c3000 c7000 BL860 .... Power consumption (typical): 40 W. Dimensions (WxDxH): 368.3 x 509.5 x 60.5 mm, Weight: 3.13 kg
Frequently Asked Questions
Is this product genuine OEM?
Yes, this HP 6Gb SAS Switch Dual Pack network switch module (BK764A.NS) is 100% genuine HP hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This HP 6Gb SAS Switch Dual Pack network switch module includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the HP 6Gb SAS Switch Dual Pack network switch module compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the BK764A.NS.
