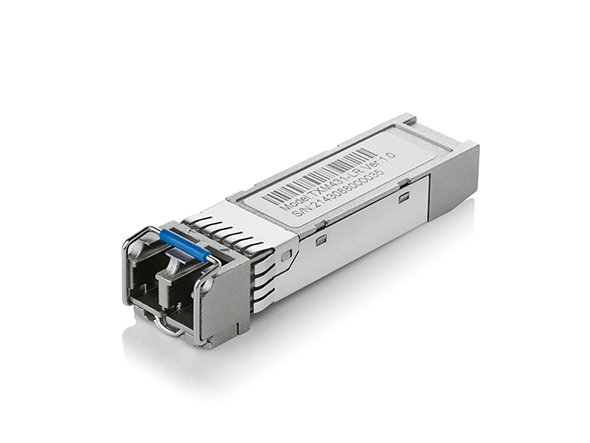

TP-Link TXM431-LR network transceiver module Fiber optic 10000 Mbit/s SFP+ 1310 nm
Brand: TP-Link · SKU: AXI-TXM431-LR-AX · MPN: TXM431-LR · Category: Networking
TP-Link TXM431-LR, Fiber optic, 10000 Mbit/s, SFP+, LC (UPC), 9/125 µm, LR
Specifications
| Wavelength | 1310 nm |
|---|---|
| Interface type | SFP+ |
| Rx power (max) | 0.5 dBmW |
| Rx power (min) | -14.4 dBmW |
| Tx power (max) | 0.5 dBmW |
| Tx power (min) | -8.2 dBmW |
| Hot-Plug support | Yes |
| Networking standards | IEEE 802.3ae |
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC (UPC) |
| SFP transceiver standard | LR |
| Maximum transfer distance | 10000 m |
| Storage temperature (T-T) | -40 - 80 °C |
| Maximum data transfer rate | 10000 Mbit/s |
| Harmonized System (HS) code | 85369010 |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Multi-mode fiber (MMF) supported | No |
| Operating relative humidity (H-H) | 10 - 90% |
| Single-mode fiber (SMF) supported | Yes |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Warranty | 3-Year Warranty |
Product Description
The TXM431-LR is designed to extend transfer distance based on 10Gbps Ethernet connectivity. It is a 10GBASE-LR high performance 1310nm single-mode SFP+ transceiver. It supports full duplex, and 10G Ethernet connections up to 10km with 9/125µm fiber cables.
Key Features
TP-Link TXM431-LR. SFP transceiver type: Fiber optic, Maximum data transfer rate: 10000 Mbit/s, Interface type: SFP+
Frequently Asked Questions
Is this product genuine OEM?
Yes, this TP-Link TXM431-LR network transceiver module Fiber optic 10000 Mbit/s SFP+ 1310 nm (AXI-TXM431-LR-AX) is 100% genuine TP-Link hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This TP-Link TXM431-LR network transceiver module Fiber optic 10000 Mbit/s SFP+ 1310 nm includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the TP-Link TXM431-LR network transceiver module Fiber optic 10000 Mbit/s SFP+ 1310 nm compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AXI-TXM431-LR-AX.
